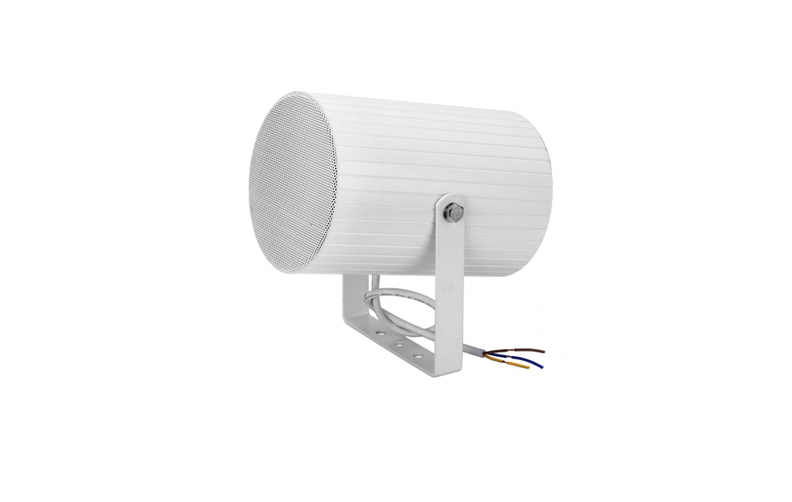

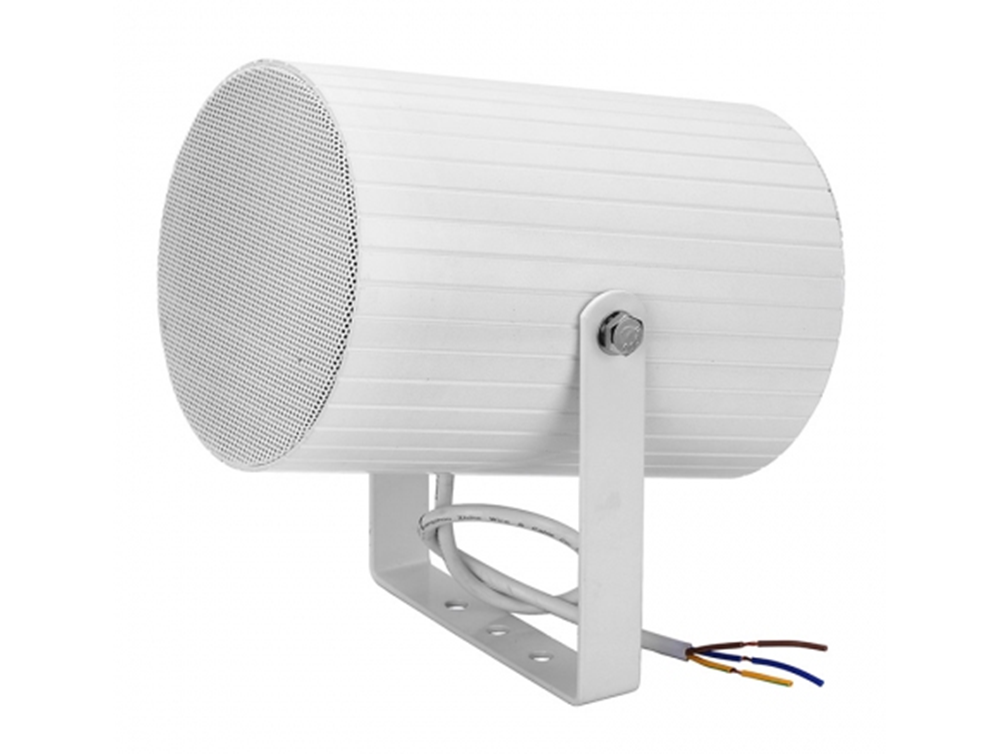

PJSK-20ADEN EN54-24 Bi-Directional Sound Projector
EN54-24 PJSK-20ADEN is one outdoor Bi-Directional Sound Projector for voice alarm & evacuation system, 20W, 100V 8 Ohm, ceramic connector, thermal fuse and fire resistant cable, IP66 fully outdoor BGM & Paging use loudspeakers.
Feature:
- Compliant with the EN54-24 standards
- PA (Public Address) system Bi-directional sound projector with transformer
- Ideal for outdoor music and speech use in school, office, hotel and airport
- Bi-directional sound projector for both sides sound dispersion
- 2×6.5” PP full range waterproof woofer
- Rated power output 5W-10W-20W at 100V
- Waterproof level of IP66
- Ceramic connector, 95℃ fire-resistant cable and thermal fuse
- Line input 100V or 70V by cable tail with waterproof gland
- Aluminum enclosure and stainless metal bracket in white
- Quick installation by supplied stainless mounting bracket
Specification:
|
Model |
PJSK-20ADEN |
|
Description |
EN54-24 Bi-Directional Sound Projector |
|
Rated Power Output |
5W-10W-20W |
|
Speaker |
2×6.5” PP full range waterproof woofer |
|
Line Input |
100V or 70V |
|
Frequency Response |
110-15KHz |
|
SPL(@1W/m) |
92dB |
|
IP Rate |
IP66 |
|
Connector |
By speaker cable tail with waterproof gland |
|
Dimension |
Φ170×252mm |
|
Material |
Aluminum enclosure and stainless metal bracket in white |
|
Mounting Way |
Quick installation by supplied stainless mounting bracket |
|
Weight |
2.8kg |
