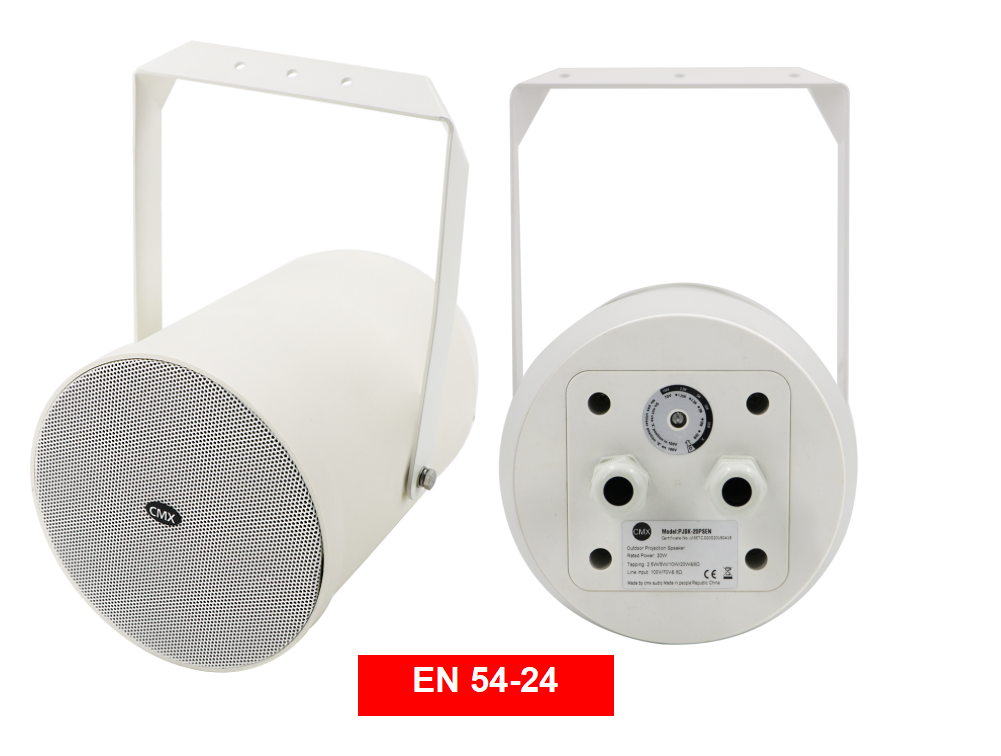

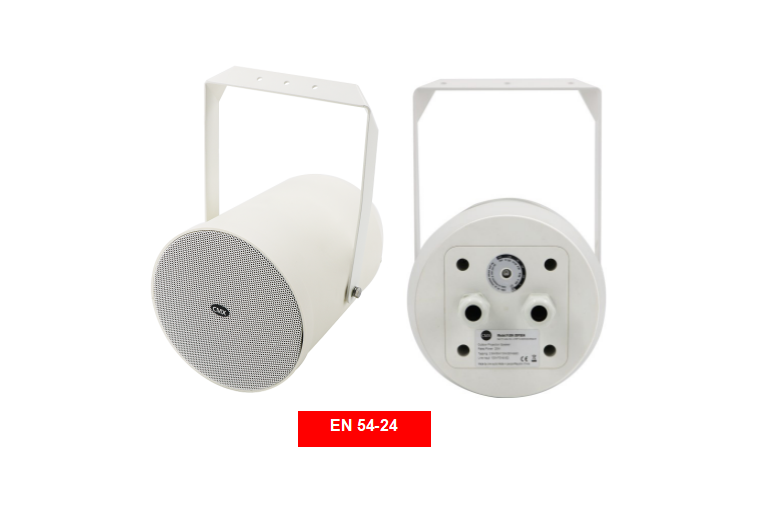

PJSK-20PSEN EN 54-24 Sound Projector
EN 54-24 Sound Projector
PJSK-20PSEN
Feature:
Compliant with the EN 54-24 standards
Public address (PA) system music & paging sound projector with transformer
Public Address outdoor sound projector for BGM & paging system
Ideal for outdoor music and speech use in factory, school, office, hotel and airport
6.5” PP dual cone waterproof woofer
Rated power output 5W-10W-20W at 100V& 8 Ohm
Waterproof level of IP66
Built-in ceramic connector, 95℃ fire-resistant cable and thermal fuse
2 waterproof glands for speaker cable connection
UV protected ABS enclosure and stainless metal bracket in white
Quick installation by supplied stainless mounting bracket
Specification:
|
Model |
PJSK-20PSEN |
|
Description |
EN 54-24 Sound Projector |
|
Rated Power Output |
5W-10W-20W at 100V& 8 Ohm |
|
Speaker |
6.5” PP full range waterproof woofer |
|
Line Input |
100V or 70V& 8 Ohm |
|
Frequency Response |
110-18KHz |
|
SPL(@1W/m) |
92dB and Max 95dB |
|
IP Rate |
IP66 |
|
Connector |
2 waterproof glands for speaker cable connection |
|
Dimension |
Φ170×245mm |
|
Weight |
1.9kg |
|
Material |
UV protected ABS enclosure and stainless metal bracket in white |
|
Mounting Way |
Quick installation by supplied stainless mounting bracket |
