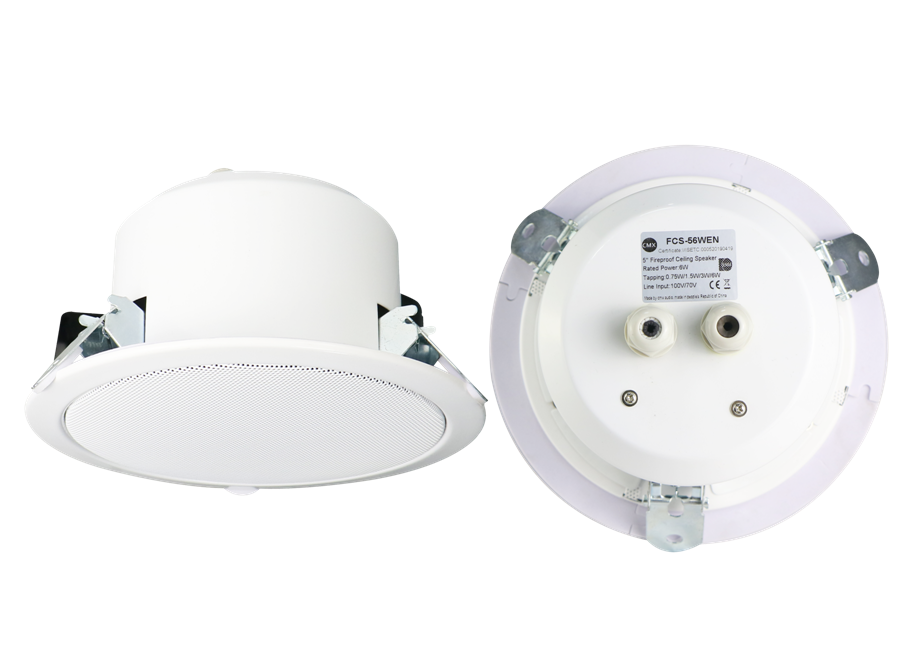

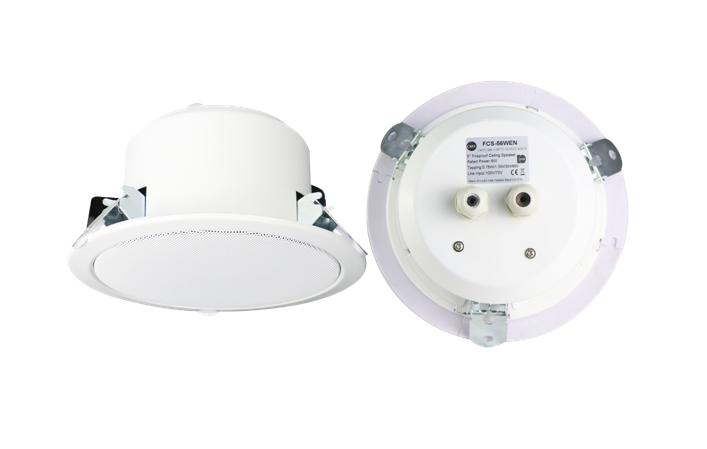

FCS-56CEN EN54-24 Ceiling Speaker 3W/6W
EN54-24 Ceiling Speaker
FCS-56CEN
Features:
Compliant with the EN54-24 standards fireproof ceiling speaker
Built-in 100v/70v transformer for PA & VA system
In-ceiling fast installation type loudspeaker
5” full range speaker unit
Power taps 1.5W/3W/6W @100V
With metal fire dome for fireproof applications
Metal grille, metal baffle and fire dome in white
Ceramic terminal, thermal fuse, fire dome and fire-resistant cable
Fast installation by its three spring clips
Specifications:
|
Model |
FCS-56CEN |
|
Description |
EN54-24 Ceiling Speaker |
|
Power Taps @100V |
6W/3W/1.5W |
|
SPL(1W/1M) |
91dB |
|
Max. SPL (Rated W/1M) |
98dB |
|
Frequency Response |
110-14.5KHz (-10dB) |
|
Finish |
Metal grille, metal baffle and fire dome in white |
|
Speaker Driver |
5" x 1 full range paper cone |
|
Cutout Size |
Ø 175mm |
|
Dimensions |
Ø 200 x 105mm |
|
Weight |
0.9Kg |
|
Mounting |
Spring-clip |
