PUBLIC ADDRESS SYSTEM (P.A.) for Office Buildings
Office public address and PA system design from CMX AUDIO features of multiple zone general paging system with remote call station, easy background music system, one amplifier divided into multiple zone by speaker selectors, with fire alarm and evacuation system, with volume control for individual room control, various loudspeakers for indoor and outdoor sound system.
Features:
- 26 Zone All in one PA system for Government building, office, factory, school and hotel
- PA System with background music, zone paging, scheduled timer & fire alarm
- Economy solution support more than 200 pcs speaker by one amplifier
- PA controller, amplifier, zone remote microphone and loudspeaker to set up an simplest PA system
- With scheduled timer can auto broadcast pre-recorded voice message and ring bell
- Support indoor and outdoor multiple zone PA loudspeakers
- Zone capacity is 26 and expandable to 120 zone
- Additional features: speaker line monitoring, amplifier monitoring, volume control for each speaker zone, mobile paging etc could be meet by additional equipments.

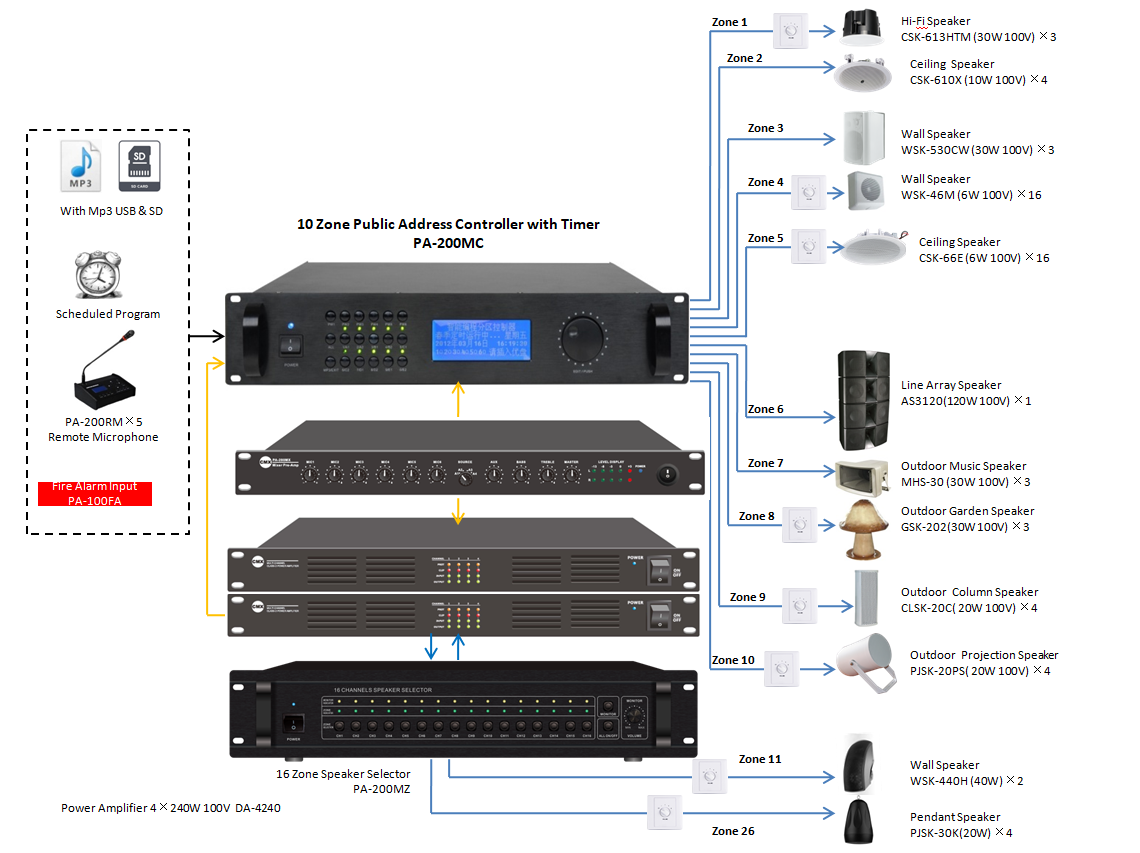

CMX AUDIO 26 Zone Office Public Address System BOQ:
- 10 Zone public address controller, PA-200MC×1
- 16 Zone speaker selector, PA-200MZ×1
- remote microphone, PA-200RM×1
- Wireless Microphone, WM-U200C×1
- Audio Source Player, IRM200×1
- Stereo Mixer Amplifier, PA-200MX×1
- Power Amplifier 4×240W, DA-4240×2
- Zone1, Ceiling Speaker, CSK-613HTM×3
- Zone2, Ceiling Speaker, CSK-610X×4
- Zone3, Wall Speaker, WSK-530CW×3
- Zone4, Wall Speaker, WSK-46M×16
- Zone5, Ceiling Speaker, CSK-66H×16
- Zone6, Line Array Speaker, AS3120×1
- Zone7, Music Horn Speaker, MHS-30×3
- Zone8, Garden Speaker, GSK-202×3
- Zone9, Outdoor Column Speaker, CLSK-20C×4
- Zone10, Outdoor projection Speaker, PJSK-20PS×4
- Zone 11, Wall mount speaker, WSK-430H×2
- Zone 26, Pendant speaker, PSK-30K×2
| PUBLIC ADDRESS SYSTEM (P.A.) | ||
| Master Control Unit | 1.00 | Pc.(s) |
| Power Amplifier | 10.00 | Pc.(s) |
| Zone Expander with single audio channel | 3.00 | Pc.(s) |
| Remote Microphone | 1.00 | Pc.(s) |
| Keypad Station | 1.00 | Pc.(s) |
| Music Player | 1.00 | Pc.(s) |
| 6 Watts Ceiling Speaker | 873.00 | Pc.(s) |
| Ceiling Speaker Back Cover | 873.00 | Pc.(s) |
| 10W Wall Mount Speaker | 8.00 | Pc.(s) |
| 12 Kva UPS | 1.00 | Pc.(s) |
| 42u Data Cabinet | 1.00 | Pc.(s) |
| Other Miscellaneous (RCA to RCA Cable, Adapter,) | 1.00 | Pc.(s) |
| WIRES & CABLES | ||
| #16 (1.25.mm²) TF Shielded Twisted Pair wire | 36,905.00 | lm |
