8 Zone Public Address Background Music & Paging System DA-8050

DA-8050 is versatile public address 8 channel power amplifier, which stand alone could be set up one multiple zone multiple source background music system. For restaurant background music system, for hotel background music system, for fitness center background music system and theme bar background music system, DA-8050 multiple zone power amplifier enable to deliver eight different audio sources to different rooms at different volume loudness, thus indoor room for background music system and outdoor room for parking announcement is possible.

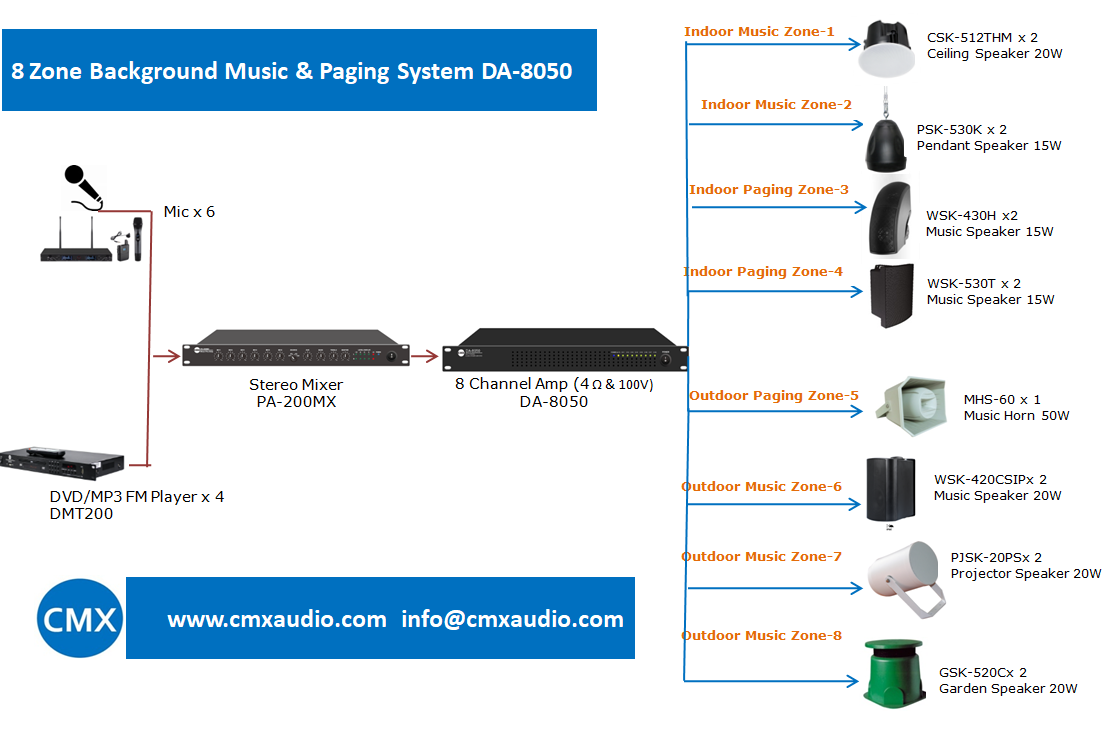

8 Zone Public Address Background Music & Paging System DA-8050

8 Zone Public Address Background Music & Paging System DA-8050



System Design Description:

DA-8050 is versatile public address 8 channel power amplifier, which stand alone could be set up one multiple zone multiple source background music system. For restaurant background music system, for hotel background music system, for fitness center background music system and theme bar background music system, DA-8050 multiple zone power amplifier enable to deliver eight different audio sources to different rooms at different volume loudness, thus indoor room for background music system and outdoor room for parking announcement is possible. For mosque sound system, it could be used for gentle man area as Zone A and Women Area as Zone B, plus restaurant area and restroom as additional zone division, various DVD/pre-recorded message/Wireless microphone live announcement/Voice alarm etc could be assigned to different rooms or zones. Moreover, the amplifier with 8 zone volume control to have individual output loudness. One mute input of highest priority to integrate with voice alarm system or fire alarm system in case of emergency. The amplifier of green star energy level up to 85% efficiency, which is designed of less power consumption and high efficiency of cooling, in 1U height of 19” rack mount type. So this 8 zone PA (Public Address) Background Music & Paging System DA-8050 is working with stereo mixer PA-200MX to feed into up to 10 microphone or audio sources players DMT200, indoor ceiling speaker, pendant speaker, music speaker and outdoor zone music horn, projector speaker and garden speaker to set up the most reliable multiple zone multiple room background music sources system.


System Design Features:

  • 8 Zone Public Address Background Music & Paging System

  • Different audio sources & speech to different 8 zones

  • Multiple zone multiple room up to 8 background music system

  • Ideal for restaurant, hotel, fitness center and theme bar 8 zone background music system

  • System power amplifier of 400W RMS and power loading of 320W to avoid damage

  • Deliver eight different audio sources to different rooms at different volume loudness

  • Various DVD/pre-recorded message/Wireless microphone live announcement/Voice alarm etc could be assigned to different rooms or zones

  • Green star energy level class-D power amplifier up to 85% efficiency of 1U height 19” rack mount type.

  • One mute input of highest priority to integrate with voice alarm system or fire alarm system in case of emergency

  • Work with stereo mixer PA-200MX to feed into up to 10 microphone or audio sources players DMT200

  • Up to 8 zones indoor and outdoor loudspeakers includes indoor ceiling speaker, pendant speaker, music speaker and outdoor zone music horn, projector speaker and garden speaker.


System Design BOQ:

S/N

Model

Description

Qty

1

DA-8050

8 Channel Power Amplifier, 400W

1

2

PA-200MX

10 Inputs Stereo Mixer

1

3

DMT200

DVD/Mp3 Player with FM Radio

4

4

U202

Dynamic microphone

2

5

WM-U200C

UHF Wireless Microphone

2

6

CSK-512HTM

Ceiling Speaker, 100V 20W

2

7

PSK-530K

Pendant Speaker 30W/15W 100V

2

8

WSK-430H

Music Speaker 30W/15W 100V

2

9

WSK-530T

Music Speaker 30W/15W 100V

2

10

MHS-60

Pendant Horn 50W/25W 100V

1

11

WSK-420CSIP

Waterproof Music Speaker 20W 100V

2

12

PJSK-20PS

Waterproof Projector Speaker 20W 100V

2

13

GSK-520C

Waterproof Garden Speaker 20W 100V

2

14

VC-C30

Volume control, 30W

Option

15

RK-12U

19” rack

Option

16

SKC-100

Speaker cable

Various
