IP Audio Encoder & IP Audio Decoder for Chain Store IP Audio Solutions
IP Network Audio Encoder & Decoder
DI-9700NA
Description:

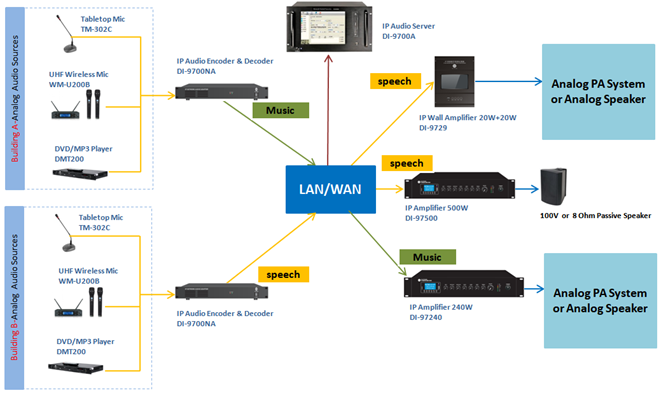

The IP Network audio encoder and IP audio decoder DI-9700NA, which can encode various analog audio sources media player & microphone over IP audio streaming and also can decode various IP audio, server audio into analog to Pre-amplifier or mixer amplifier or active loudspeakers. Via software to program the IP audio encoder’s audio output over IP to single zone, multiple zones or all zones. Simple IP network audio system by IP encoder & IP decoder to compatible with any analog system. The IP audio encoder decoder is compatible with DI-9700 full range all IP decoders, IP amplifiers & IP speakers. The IP audio system could be built up over existing network, non-dedicated network audio system solution over LAN/WAN or Internet. The IP audio encoder & decoder is designed of one aux input, one microphone input, one aux output, control input and control output, separate attenuator is designed for each aux input, microphone input & aux output, there is also one USB input of reserved function and one RJ45 port for network connection. The network audio adapter is of direct visual indication where the stat indicator of IP encoder and IP decoder task activation and power indicator for power on& power off. The network audio adapter is ideal to work with existing analog sound system upgrade into IP audio system by keep using the analog amplifier and loudspeakers, it is also used to connect with audio sources like Mp3, CD, DVD player over IP transmission or decode IP audio into analog to Pre-Amplifier or mixer.
Feature:
19” rack mount type IP network audio encoder & IP audio decoder
Encode various analog audio sources media player & microphone over IP audio streaming
Use it as one IP audio encoder or IP audio decoder, can not use it both simultaneously
Ideal for upgrade analog PA system into IP based PA system without changing existing analog amplifier & speakers
Huge system capacity of 6,000 units IP audio encoders
Via software to program the IP audio encoder’s audio output over IP to single zone, multiple zones or all zones
Simple IP network audio system by IP encoder & IP decoder to compatible with any analog system
Compatible with DI-9700 full range all IP decoder, IP amplifiers & IP speakers
Minimum cable connection by using existing network framework
Non-dedicated network audio system solution over LAN/WAN or Internet
Economy network PA system for multiple room and multiple program applications
Ideal for school, office, restaurant and fitness center IP PA sound system
Remote volume control and program via remote server software
One aux input, one microphone input, one aux output, control input and control output
One aux input, one microphone input & one aux output with separate attenuator
One USB input of reserved function and one RJ45 port for network connection
Stat indicator of IP encoder and IP decoder task activation
