IP PA System for Residential Sound System Solution

Residential & Commercial Building IP Sound system is featured of multiple zone background music system, multiple zone paging system and emergency zone voice evacuation system, CMX AUDIO is leading China manufacturer of residential and commercial building sound system with professional technical support and R & D team.

IP PA System for Residential Sound System Solution

IP PA System for Residential Sound System Solution

  • Online music and paging system streaming.
  • Different zone of different music & paging system.
  • System capacity up to 600 speaker.
  • System capacity up to 200 IP remote paging microphone.
  • IP amplifier installed far away from central room through LAN network.
  • IP amplifier to load multiple  speaker for music and voice announcement.
  • Minimum cable connection and minimum equipment but powerful function.
  • Audio distribution anywhere, where there is an IP network.
  • Usage of existing LAN/WAN network and Internet.
  • Easy connection of large and very distant destinations.
  • Paging  or talk from another place to separate zones of far location.
  • Possibility to create separate zones with different programs.
  • Central management like volume control & status monitoring of all speakers.

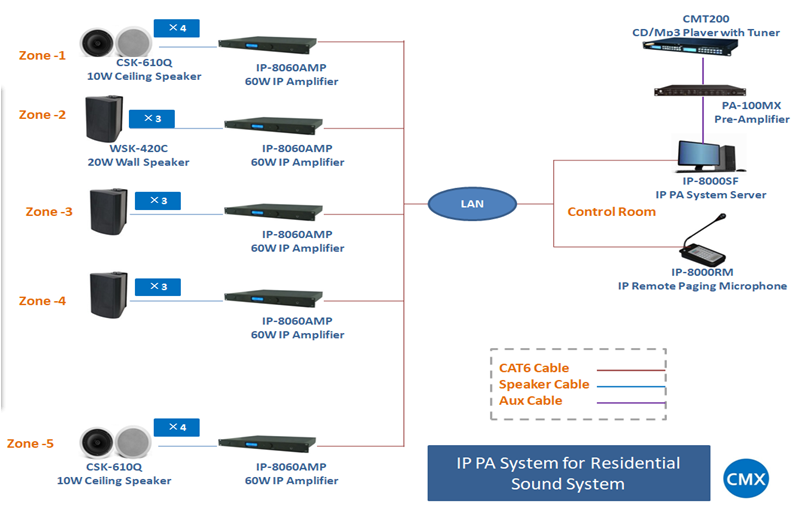

IP PA System for Residential Sound System Design Concept:

  • Mainly indoor sound system by using Hi-fi wall speaker and in-ceiling speaker.
  • Indoor hi-fi speaker suitable for both music and voice paging.
  • CD/MP3 & Tuner and pre-recorded voice message could be played to different zones and
  • speakers.
  • Different music and voice paging could be broadcast at the same time without
  • interference each other.
  • Timely controlled pre-recorded voice message or music song could be auto broadcast
  • to different zones at pre-set time.
  • IP-8060AMP 60W IP amplifier will be installed in each sub-central room for one zone
  • sound system control.
  • IP-8000RM  could be installed in anywhere of the LAN network, which enable to make
  • live announcement from remote place to any loudspeakers of this PA sound system, more
  • qty of paging microphone could be added to the system.
  • WSK-420C is indoor music and paging wall speaker, which is suitable for indoor sound
  • system for living room, guestroom and study room of best sound restoration at hi-fi level.
  • CSK-610Q is high quality ceiling speaker for office sound system, kitchen and bedroom
  • area, easy installation and clear voice and very good for music system.
