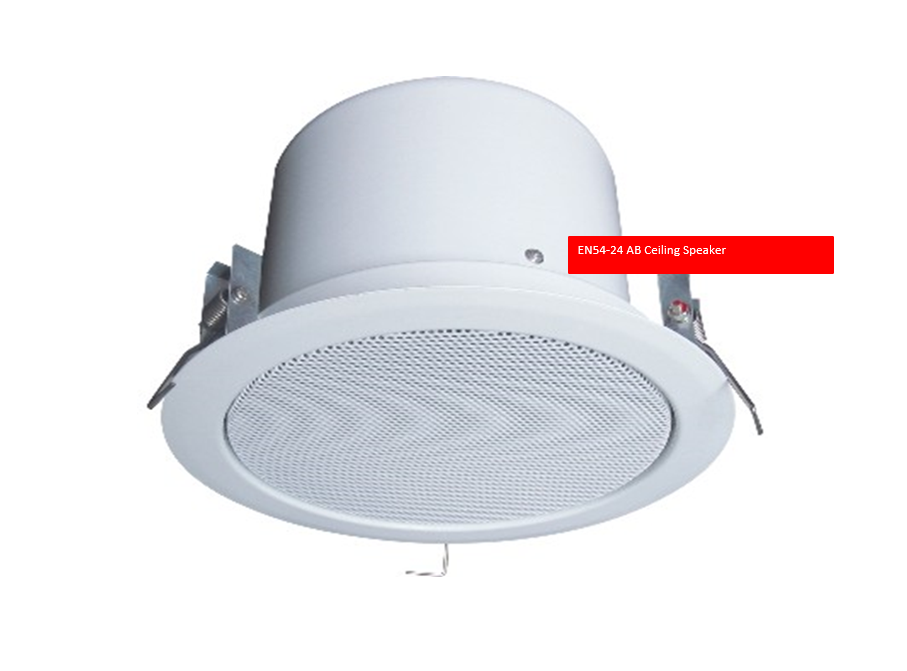

FCS-66ABEN EN54-24 AB Line Ceiling Speaker
EN54-24 AB Line Ceiling Speaker
FCS-66ABEN
Feature:
EN54-24 AB Line ceiling speaker with transformer.
2×3.5” dual ceiling speaker for voice alarm & evacuation system use.
Power output 2x6/3/1,5/0.75W
In case of a failure of one speaker line the redundancy of the speakers.
The powder coated metal similar with fire dome in RAL 9010.
2-pin ceramic connector block, thermal fuses are provided.
Quick and easy mounting with spring clamps and short tension distance.
Specification:
|
Model |
FCS-66ABEN |
|
Description |
EN54-24 AB Line Ceiling Speaker |
|
Operation |
Double Operation |
|
Power Output |
2x 6/3/1.5/0.75 W |
|
Frequency Response |
120 - 18,500 Hz |
|
SPL (1W/1m) |
104.8 dB |
|
Sensitivity (1W/4m) |
80.8 dB |
|
Ceiling Cutout |
Ø220mm |
|
Connector |
2-pole ceramic terminal |
|
Color |
white RAL 9010 |
|
Dimensions |
Ø240 x 100 mm |
|
Weight |
1.8kg |
