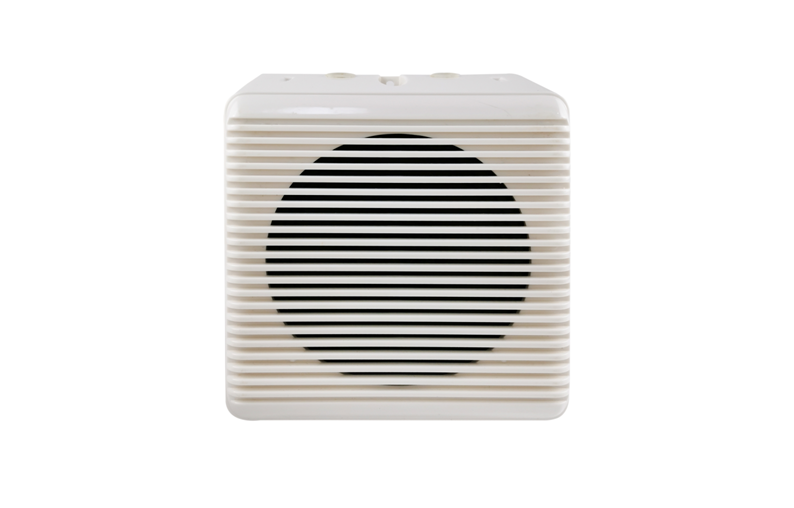

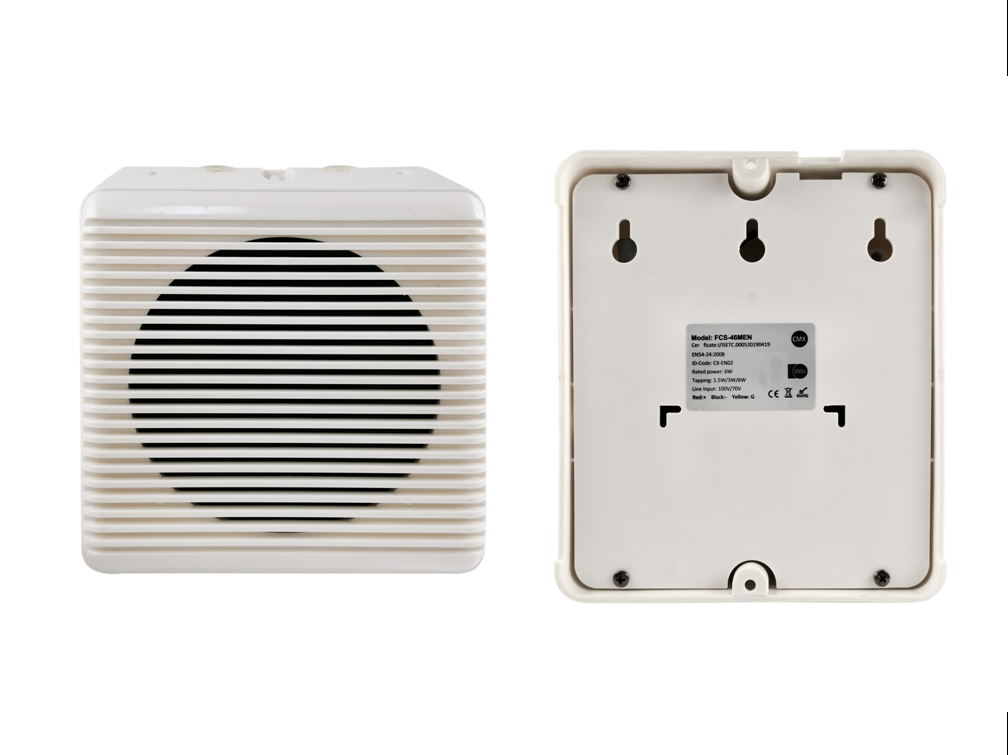

FCS-46MEN EN54-24 Wall Mount Speaker 4" 6W/3W/1.5W
FCS-46MEN is EN54-24 certified wall mount speaker with fire-resistant ABS material, ceramic connector, thermal fuse and 4" fire-resistant woofer which is dedicated designed for voice alarm & voice evacuation system use.
Feature:
- Commercial PA system wall mount speaker with transformer
- Ideal for school, office, hotel and airport background music system
- Quick installation by screw hanging hole
- Compliant with the EN54-24 EVAC standard
- The impact-resistant & UV-resistant ABS plastic housing
- An integrated thermal fuse, 95℃ fire-resistant cable & fire-resistant cone are designed for EN54 standards
- Rated power output 1.5/3/6W at 100V
- 4" full range paper driver unit
- Line input of 100V or 70V technology
- ABS enclosure and ABS grille in white
- Quick installation by screw hanging hole
Specification:
|
Model |
FCS-46MEN |
|
Description |
EN54-24 Wall Mount Speaker |
|
Rated Power Output |
1.5/3/6W |
|
Line Input |
100V or 70V |
|
Frequency Response |
150-15KHz |
|
SPL(@1W/m) |
98.5dB |
|
Speaker Unit |
4” full range paper cone |
|
Dispersion -6dB, 500Hz |
h = 180°, v = 180° |
|
Dispersion -6dB, 1KHz |
h = 160°, v = 160° |
|
Dispersion -6dB, 2KHz |
h = 140°, v = 130° |
|
Dispersion -6dB, 4KHz |
h = 100°, v = 90° |
|
IP Rating |
IP55 |
|
Dimension |
161×161×100mm |
|
Material |
ABS enclosure and ABS grille in white |
|
Mounting Way |
Quick installation by screw hanging hole |
|
Weight |
0.8kg |
