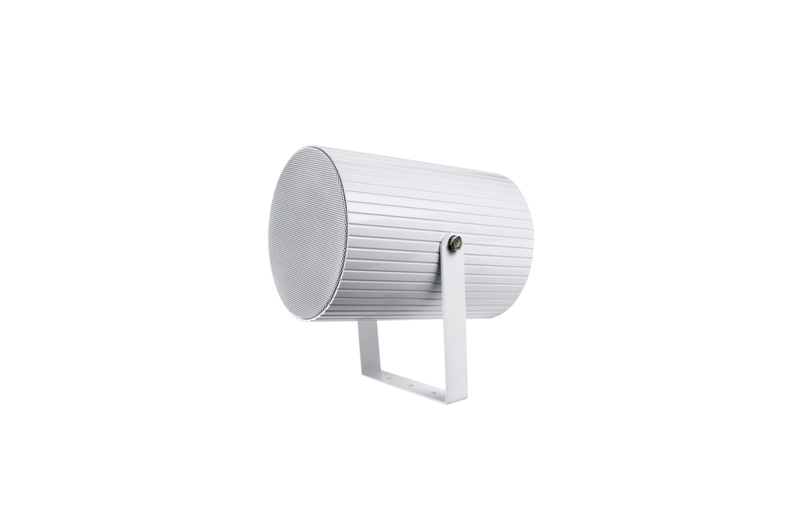

EN54-24 Projector Speaker PJSK-20ASEN
EN54-24 Projector Speaker PJSK-20ASEN is one outdoor speaker for voice alarm & evacuation system, 20W, 100V 8 Ohm, ceramic connector, thermal fuse and fire resistant cable, IP66 fully outdoor BGM & Paging use loudspeakers.
Feature:
- BGM & paging projector speaker with transformer
- Ideal for outdoor music and speech use in school, office, hotel and airport
- Economy rang weatherproof outdoor PA projection speaker
- 6.5” PP full range woofer
- Compliant with the EN54-24 standards
- Ceramic connector, 95℃ fire-resistant cable and thermal fuse
- Rated power output 5W-10W-20W at 100V
- Waterproof level of IP66
- Line input 100V or 70V by cable tail with waterproof gland
- Aluminum enclosure and stainless metal bracket in white
- Quick installation by supplied stainless mounting bracket
Specification:
|
Model |
PJSK-20ASEN |
|
Description |
Projector Speaker |
|
Rated Power Output |
5W-10W-20W |
|
Speaker |
6.5” PP full range woofer |
|
Line Input |
100V or 70V |
|
Frequency Response |
100-17KHz |
|
SPL(@1W/m) |
98dB |
|
IP Rate |
IP66 |
|
Connector |
By speaker cable tail with waterproof gland |
|
Dimension |
Φ170×252mm |
|
Material |
Aluminum enclosure and stainless metal bracket in white |
|
Mounting Way |
Quick installation by supplied stainless mounting bracket |
|
Weight |
2.9kg |
