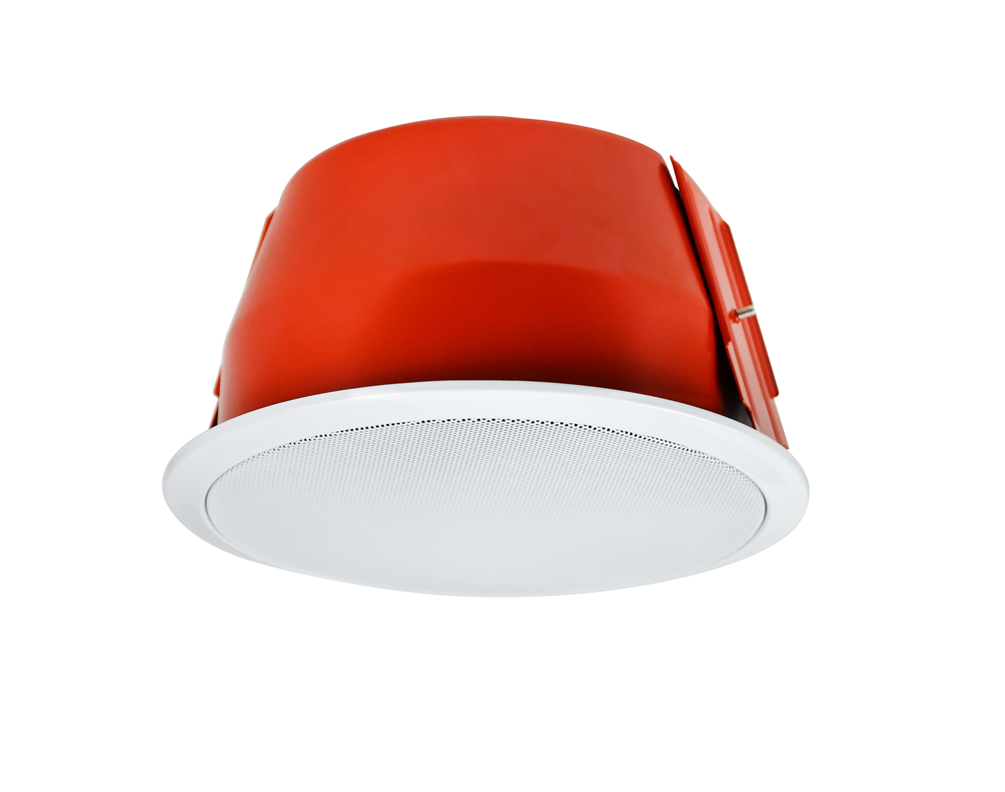

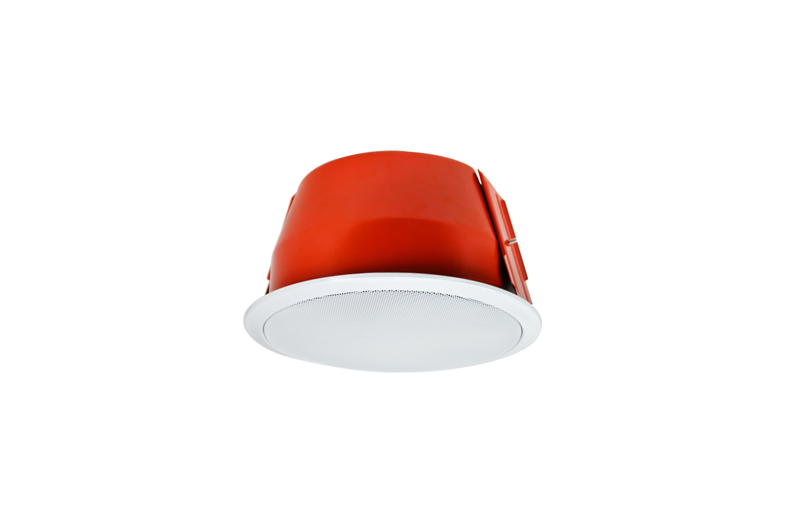

EN54-24 Ceiling Speaker FCS-86MEN
FCS-86MEN is EN54-24 certified ceiling speaker with fire dome, 100V, 1.5W/3W/6W, 8", all metal, ceramic connector, thermal fuse and dedicated designed for voice alarm & voice evacuation system use.
Feature:
- Commercial fireproof ceiling speaker with transformer
- Ideal for school, office, hotel and airport voice evacuation and PA system
- Compliant with the EN54-24 EVAC standard
- Ceramic connector, fire dome, 95℃ fire-resistant cable and thermal fuse
- Rated power output 1.5W-3W-6W at 100V
- 8" full range fire-resistant speaker unit
- Line input 100V or 70V with transformer
- Metal enclosure, metal grille in white and fire dome in red
- In-ceiling quick installation by spring clip
Specification:
|
Model |
FCS-86MEN |
|
Description |
EN54 Ceiling Speaker |
|
Rated Power Output |
1.5W-3W-6W |
|
Line Input |
100V or 70V |
|
Frequency Response |
110-18KHz |
|
SPL(@1W/m) |
92dB |
|
Speaker Unit |
8” full range fire resistant speaker unit |
|
Cutout Size |
Φ230mm |
|
Dimension |
Φ270×133mm |
|
Material |
Metal enclosure, metal grille in white and fire dome in red |
|
Mounting Way |
In-ceiling spring clip quick installation |
|
Weight |
2.3kg |
