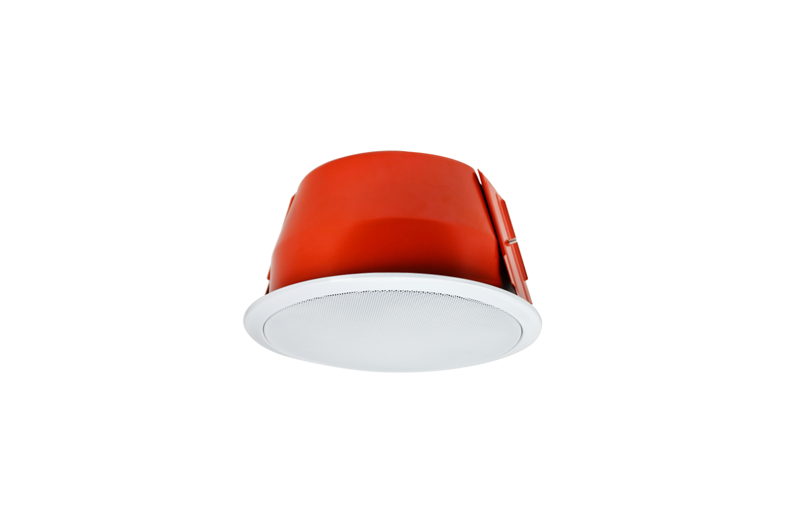

EN54-24 Ceiling Speaker FCS-56MEN
FCS-56MEN is EN54-24 certified ceiling speaker with fire dome, all metal, ceramic connector, thermal fuse and dedicated designed for voice alarm & voice evacuation system use.
Feature:
- Commercial fireproof ceiling speaker with transformer.
- Ideal for school, office, hotel and airport voice evacuation and PA system.
- Compliant with the EN54-24 standards.
- Ceramic connector, fire dome, 95℃ fire-resistant cable and thermal fuse.
- Rated power output 0.75W-1.5W-3W-6W at 100V.
- 5" full range paper woofer.
- Line input 100V or 70V with transformer.
- With A/B two speaker cable entry.
- Metal enclosure, metal grille in white and fire dome in red.
- In-ceiling quick installation by spring clip.
Specification:
|
Model |
FCS-56MEN |
|
Description |
5” Fireproof Ceiling Speaker |
|
Rated Power Output |
0.75W-1.5W-3W-6W |
|
Line Input |
100V or 70V |
|
Frequency Response |
130-15KHz |
|
SPL(@1W/m) |
92dB |
|
Speaker Unit |
5” full range paper woofer |
|
Cutout Size |
160mm |
|
Dimension |
180(D)×135(H)mm |
|
Material |
Metal enclosure, metal grille in white and fire dome in red |
|
Mounting Way |
In-ceiling spring clip quick installation |
|
Weight |
1.3kg |
