30/05/2023

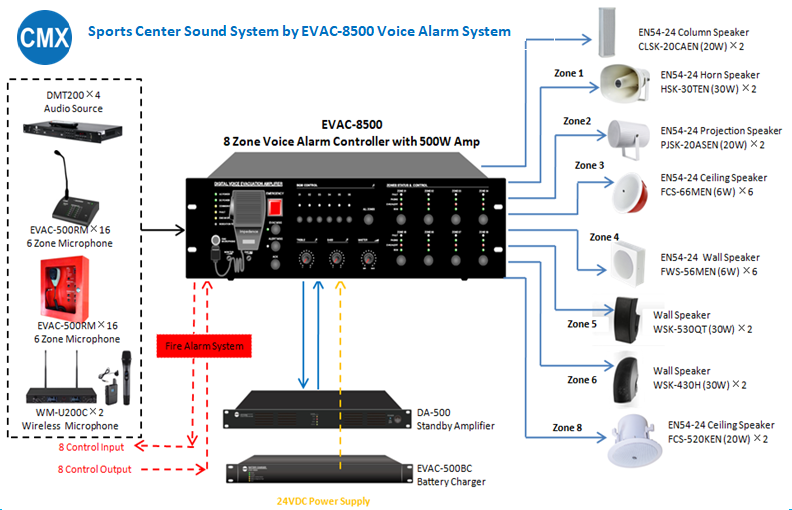

Sports Center Sound System by EVAC-8500 Voice Alarm System
EVAC-8500 is EN54-16 certified 8 zone voice alarm system controller which is designed for public address and voice alarm system, all main signal will be monitored, built-in 500W amplifier, voice alarm controller, 8 zone paging controller, speaker line monitoring and amplifier changeover.
CMX Audio EN54-16 Certified EVAC-8500 Voice Alarm System for Sports Center Sound System
- Voice alarm & evacuation system with public address system functions
- Integration with voice alarm system and fire alarm system
- Up to 8 zone voice evacuation & paging system
- Immediate evacuation/alert pre-recorded message auto-announcement in case of emergency
- Control room and reception desk use EVAC-8500RM for live announcement & pre-recorded message announcement
- With paging console EVAC-500TM speech to different rooms
- Support background music system to different rooms of different volume
- Fire alarm & voice alarm system with highest priority to override BGM and Evacuation auto announcement
- Full back up system from software, amplifier, speaker AB loop and microphone line
- Remote microphone EVAC-500RM or remote touch screen paging console EVAC-500TM for zone paging system
- Future system expansion up to 120 zones with minimum equipments by adding to the master controller
- Support live speech, pre-recorded message announcement
- Emergency voice alert & evacuation system
- Compliance with European voice alarm EN54-16 standards
- With EN54-24 column speaker and EN54-24 Ceiling speakers
- Integration of public address, BGM, paging system and voice alarm system all in one solution
- With remote software for monitoring and program
- With fireman's microphone of highest priority for emergency announcement.
8 Zone Public Address & Voice Evacuation System for Church Sound System Solutions BOQ:
- 8 Zone voice alarm controller with 500W Amp, EVAC-8500×1
- 6 Zone remote microphone, EVAC-500RM×1
- Wireless Microphone, WM-U200C×1
- Audio Source Player, DMT200×1
- Standby Amplifier 500W, DA-500×1 (Optional)
- Battery Charger, EVAC-500BC×1 (Optional)
- Zone 1, EN54-24 Column Speaker, CLSK-20CAEN×2
- Zone 1, EN54-24 Horn Speaker, HSK-30TEN×2
- Zone 2, EN54-24 Projection Speaker, PJSK-20ASEN×2
- Zone 3, EN54-24 Ceiling Speaker, FCS-66MEN×6
- Zone 4, EN54-24 Wall Speaker, FWS-56MEN×6
- Zone 5, PA Wall Speaker, WSK-530QT×2
- Zone 6, PA Wall Speaker, WSK-430H×2
- Zone 7, EN54-25 20W Ceiling Speaker, CSK-520KEN×2
- Zone 8, EN54-25 30W Pendant Speaker, PSK-530KEN×2
