Digital CAT6 Conference System with Recorder CS-900
CS-900 digital CAT6 conference system with recorder is high quality audio conferencing solution, it is designed of up to date technology by using CAT6 cable for easy wiring. The audio conferencing recording usually need external equipment, CMX engineer is first to bring the USB audio recording within the digital conference system controller, thus to offer easy configuration and operation system for system contractor and engineer. The CS-901 tabletop chairman unit and CS-902 delegate unit, CS-903 tabletop chairman discussion unit and CS-904 tabletop delegate discussion unit are two ranges of conference microphone design, which all are designed for basic conferencing system. By integration with CMX sound reinforcement system, the audio conferencing solution from CMX is most cost-effective and most reliable system.
Digital CAT6 Conference System with Recorder CS-900
- Digital audio conference system of discussion function.
- Digital conference system through RJ45 port and CAT6 cable.
- Conference system controller with USB on front panel for audio conference recording.
- Ideal use in board room, meeting room, conference room in hotel, office and government.
- The capacity of system is 100 units and max 1000 units by cascaded more extension controller.
- Connection with tabletop conferencing microphone via CAT6 cable
- Voting, simultaneous interpretation and auto video tracking function are optional functions.
- Support multiple discussion modes: free, first in first out, and limited discussion.
- Support free discussion quantity of 1, 2, 3 and 5.
- With one balanced XLR output, one REC in/out and TEL in/out, RS232 & USB for PC connection.
- Two way communication system by CAT6 cable/RJ45 port or 8 wire cable/ 8 PIN port.
- Two RJ45 ports for extension controller, four RJ45 ports for microphone connection.
- Two 8 PIN ports for extension controller, four 8 PIN ports for microphone connection.
- Built-in DSP & feedback suppressor & LF/HF filters.
- With 2.8” LCD display for system program and monitoring.
- Up to international conference equipment, electrical certification standards of IEC 60914.
- CS-900V is controller with auto-video tracking function support 6 HD cameras.
- Digital conference system microphone system of discussion function.
- CS-903 is chairman unit with priority over CS-904 delegate unit.
- Digital conference system by CAT6 cable and RJ45 port, 8 wired cable and 8 PIN connector as spare use.
- Super cardioid directive condenser pickup
- Special anti-jamming circuit design without interference with mobile, wi-fi, Bluetooth and radio system.
- Each controller supports 10 chairman microphones and 100 delegate microphones.
- Support multiple discussion modes: free, first in first out, and limited discussion.
- Support free discussion quantity of 1, 2, 3 and 5.
- With round ring indicator will be light on when microphone on.
- Human voice pick up distance up to 15-60cm.
- Flexible gooseneck microphone of black color.
- Each microphone with volume attenuator.
- With 0.96” OLED to display the ID and working status.
- Power supply direct from digital conference system controller CS-900.
- Integration with wireless microphone WM-U200, digital mixer MCX8U and stereo power amplifier for sound reinforcement system.
- High quality conferencing ceiling speaker for in-ceiling supplementary conferencing room sound system.
- Slim line array column speaker installation on-wall for conference system main sound reinforcement system.

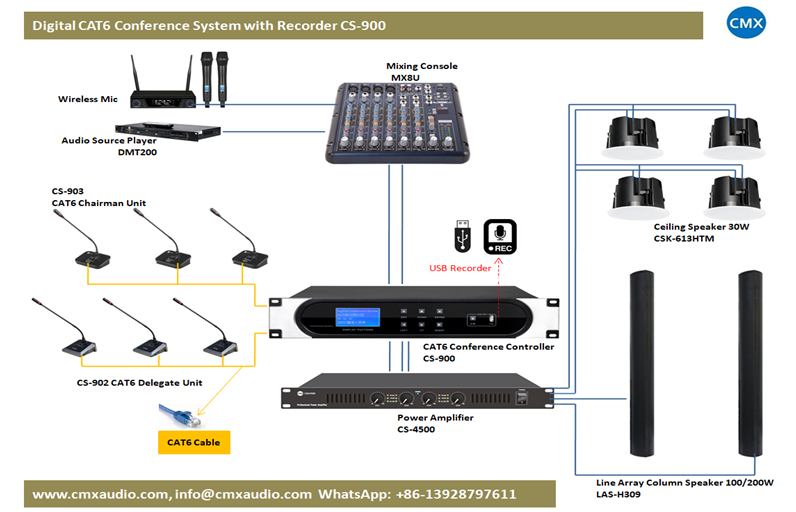

Digital CAT6 Conference System with Recorder CS-900 Bill of Material:
- CAT6 Conference System Controller with Recorder, CS-900 x 1
- CAT6 Chairman Unit, CS-903 x 1
- CAT6 Delegate Unit,CS-902 x 20
- 8 Channel Mixing Console, MCX8U x 1
- UHF Wireless Microphone with 2 Handheld Microphone, WM-U200 x 1
- DVD/USB/FM Audio Sources Player, DMT200 x 1
- Power Amplifier, CS-4500 x 1
- High Quality Ceiling Speaker, CSK-613HTM x 4
- Line Array Column Speaker, LAS-H903 x 2
