30/05/2023

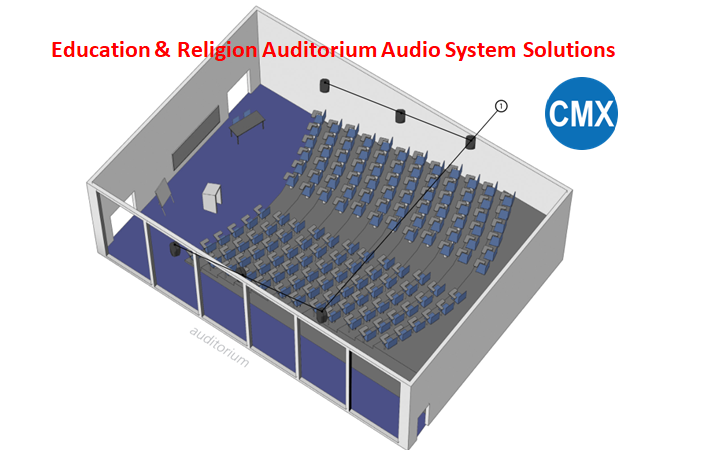

Education & Religion Auditorium Audio System Solutions
The education & religion Auditorium Audio System Solutions from CMX AUDIO is a sound system that is reliable and easy to use by non-technical staff, with good audibility everywhere in the auditorium. Main line array sound system and background music system and restroom BGM system with wireless microphone system to make it easy for speech, live performance and sound reinforcement system.
Education & Religion Auditorium Audio System Solutions
200-400 square meters area
A sound system that is reliable and easy to use by non-technical staff
Good audibility everywhere in the room
Possibility to use up to 4 wired microphone U202 and wireless microphones WM-U200C
Possibility to link a laptop.
Music from radio, CD or MP3 player DMT200
Design cabinet speakers to fit the interior style of the room WSK-640H
With line array loudspeakers for superior sound quality performance LAS-210
Power management system to protect amplifier and loudspeaker from damager PS-208PS
Professional power amplifier to load mutliple units of line array loudspeakers CS-2400
Digital signal processor with gain, EQ, crossover, delay, limiter etc DSP-480
Restroom water-resistant ceiling speaker for washing room CSK-66WE
Compact mixer amplifier for auditorium and restroom 2 zone mixer amplifier PA-2240MX
Auditorium Audio System Solutions Bill of material
CD/DVD/MP3/Bluetooth Media Player, DMT200×1 unit
8 Channel mixer, MCX8U×1 unit
Wired microphone, U202×2 unit
Wireless microhone, WM-U200C×1 set
Wall mount music loudspeaker, WSK-640H×3 pairs
Main line array loudspeakers, LAS-210× 2 sets
Main amplifier CS-2400×8 unit
Digital signal processor, DSP-480×2unit
Restroom ceiling speaker, CSK-66WE×4 pcs
2 Zone mixer amplifier PA-2240MX×1 unit
Power sequencer, PS-208PS ×1 unit
