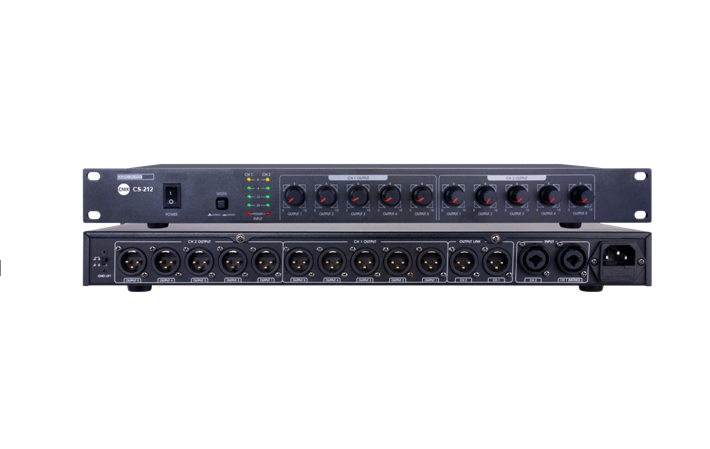

Signal Distributor/Signal Splitter CS-212
Signal Distributor/Signal Splitter
CS-212
Description:
CS-212 is one Signal splitter or signal distributor with 2 balanced XLR line inputs which are buffered and divided across 6 balanced XLR outputs each. Can be used as a 6-way stereo splitter or can be switched as a mono system feeding all 12 outputs from input A. Applications include zone mixing, personal monitoring, effects patching and routing in complex recording setups. The signal slitter is designed with separate volume control for each 12 outputs and separate output signal indicators and with mono/stereo output selector.
Features:
Used as a 6-way stereo splitter or 12-way mono splitter
Ideal for multiple-zone & multiple amplifier applications
2 balanced XLR line inputs and 12 balanced XLR line outputs
Up to 12 outputs from 1 or 2 inputs
Separate volume control for each 12 outputs.
Separate output signal indicators.
With mono/stereo output selector
19” rack mount design of 1U height
Specification:
|
Model |
CS-212 |
|
Description |
Signal Distributor/Signal Splitter |
|
Power Supply |
230V AC, 50/60Hz |
|
Power Consumption |
10W |
|
Line Input |
Two balanced XLR inputs, 600Ω, 775mV |
|
Line Output |
6 Stereo or 12 mono XLR outputs, 15kΩ, 775mV |
|
Frequency Response |
20-20KHz |
|
S/N Ratio |
<90dB |
|
THD |
<0.5% |
|
Dimension (mm) |
484×44×220mm |
|
Weight |
2.0kg |
