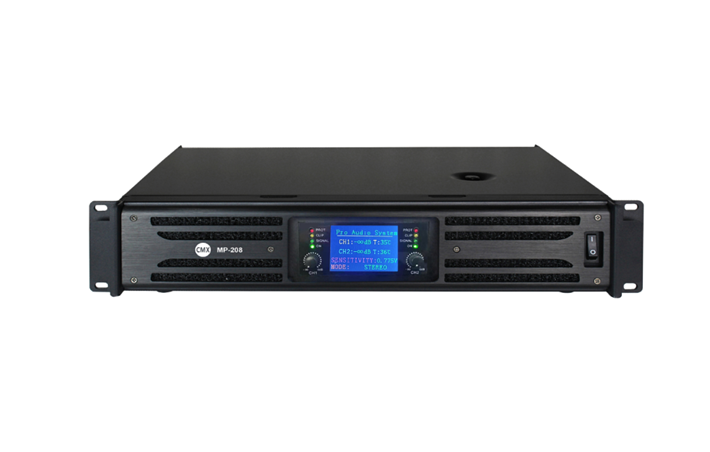

Professional Stereo Power Amplifier with LCD MP-204 MP-206 MP-208 MP-210 MP-212
Professional Stereo Power Amplifier with LCD
MP-204/MP-206/MP-208/MP-210/MP-212
Features:
19” rack mount high performance range stereo power amplifier.
Class H power amplifier of perfect sound quality.
Stereo power amplifier with 4.3” LCD to display volume, temp, sensitivity and mode etc.
Ideal for sound reinforcement system, stadium sound system, meeting room etc。
With soft power on start technology to protect from high current.
With DC protection to ensure safe operation.
Overheat protection when the internal temperature over 95℃.
Design with overload protection to protect the amplifier from damage.
With short circuit protection to protect the amplifier from wrong speaker cable wiring.
Built-in crossover inside to cut off the low frequency to protect your speaker.
Support bridge and parallel modes for easy and flexible operation.
Output impedance support 4 Ohm & 8 Ohm, bridge/parallel/stereo modes.
With 1.4V & 0.77V sensitivity selector
Earth line grounded function selection to avoid any noise and with fuse reset.
Effective cooling system. The speed of the fan is adjustable according to the temperature.
Specifications:
|
Model |
MP-204 |
MP-206 |
MP-208 |
MP-210 |
MP-212 |
|
Description |
Professional Stereo Power Amplifier with LCD |
||||
|
Output power stereo 4Ω |
600Wx2 |
900Wx2 |
1200Wx2 |
1350Wx2 |
1800Wx2 |
|
Output power stereo 8Ω |
400Wx2 |
600Wx2 |
800Wx2 |
1000Wx2 |
1200Wx2 |
|
Bridged output power 8Ω |
1200W |
1800W |
2300W |
2700W |
3000W |
|
Voltage gain |
31dB |
33dB |
34dB |
36dB |
36dB |
|
Inputs |
0db(0.775V rms) 1.0V/26dB |
||||
|
Frequency response |
20-20000Hz(±0.3dB) |
||||
|
Slew rate |
≥10V/us |
||||
|
Damping factor |
≥200:1 |
||||
|
Cross talk |
-75dB@1KHz |
||||
|
S/N ratio |
＞100dB |
||||
|
THD+N |
＜0.5%, 20-20K Hz |
||||
|
Protection |
Short circuit, over-load, over-heat, switch on/off protection etc |
||||
|
Dimensions |
484x88x360mm |
||||
|
Weight |
12.60kg |
13.20kg |
14.50kg |
15.30kg |
20.50kg |
