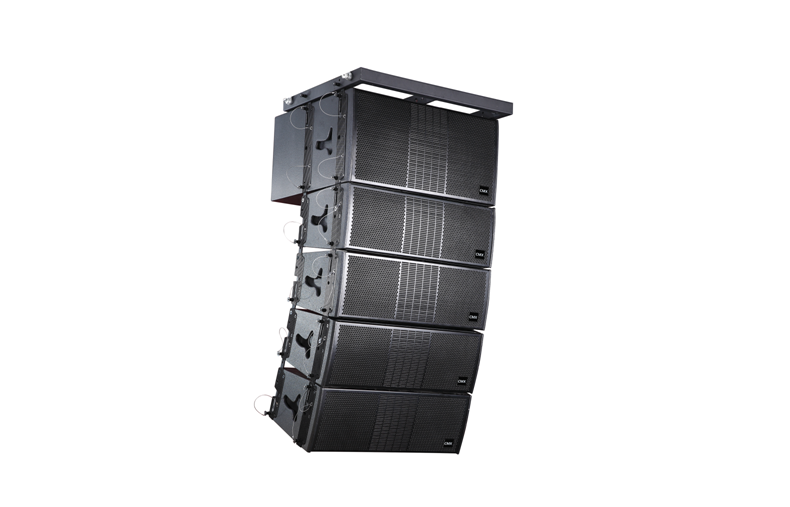

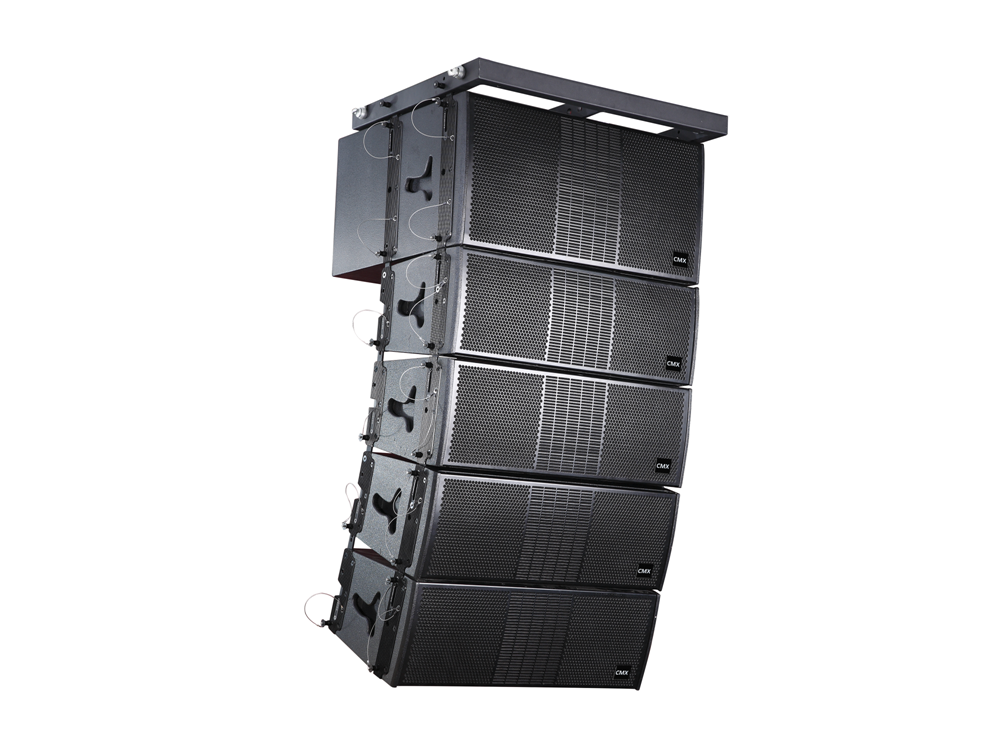

Passive Dual 10” Line Array Loudspeakers LAS-210
Passive Dual 10” Line Array Loudspeakers
LAS-210
Feature:
Compact 3-way passive line array loudspeaker system
2x 15” high performance subwoofer of low frequency LAS-210SUB
4 x dual 10” & 44mm Titanium tweeter line array speakers
High output, full range speakers for excellent sound reinforcement
High SPL up to 134B Max for all fixed installation sound system
Drivers constructed with a unique thin foam surround to reduce distortion
Ribbon tweeters give a wide frequency response of up to 20k Hz
Adjustable rigging angle for the line array speakers
Vertical dispersion of 90° and horizontal of 0°-10°
Combined up to 16 units for large venue applications
Installation mounting bracket and accessories are included
Description:
LAS-210 3-way passive line array loudspeakers is an high quality sound reinforcement system designed for nightclubs, theatres, cinemas and conference halls. The system comprises of a subwoofer and a cluster of 4 x dual 10” & 44mm Titanium tweeter to set up a 3-way loudspeaker system that shall de driven by the external power amplifiers. The 2x 15” subwoofer is of powerful bass effect, which is rated power output of 600 watts and continuous power output of 1200 watt and peak of 2400 watt, the dual 10” line array module speaker is of 3-way loudspeaker system, each module of 650 watts power output and continuous power output of 800 watt and peak of 2400 watt. The installation mounting bracket and accessories are included.
Specifications:
|
Line Array Modular Loudspeaker LAS-210M |
|
|
Speaker |
LF: 2×10", HF: 44mm |
|
RMS Power Output |
650 Watt |
|
Continuous Output |
800 Watt |
|
Peak Output |
2400 Watt |
|
Impedance |
8 Ohm |
|
Frequency Response |
48Hz~19K Hz (±3dB) 1W/1m |
|
Sensitivity |
110dB 1W/1m |
|
MAX SPL |
130dB |
|
Vertical Dispersion |
90°(-6dB) |
|
Horizontal Dispersion |
10°(-6dB) |
|
Adjustable Coverage |
0°-10° |
|
Crossover |
12dB/Octave 2500 Hz |
|
Material |
Birch plywood in black |
|
Dimension |
300x 866 x470mm |
|
Weight |
32.5kg |
|
Subwoofer LAS-210SUB |
|
|
Speaker |
2x 15” |
|
RMS Power Output |
600 Watt |
|
Continuous Output |
1200 Watt |
|
Peak Output |
2400 Watt |
|
Impedance |
4 Ohm |
|
Frequency Response |
40Hz~20k Hz (±3dB) 1W/1m |
|
Sensitivity |
112dB 1W/1m |
|
MAX SPL |
134dB |
|
Material |
Birch plywood in black |
|
Dimension |
430x 866x750mm |
|
Weight |
70kg |
|
Mounting bracket |
included |
|
Line Array Module |
2-16 units |
