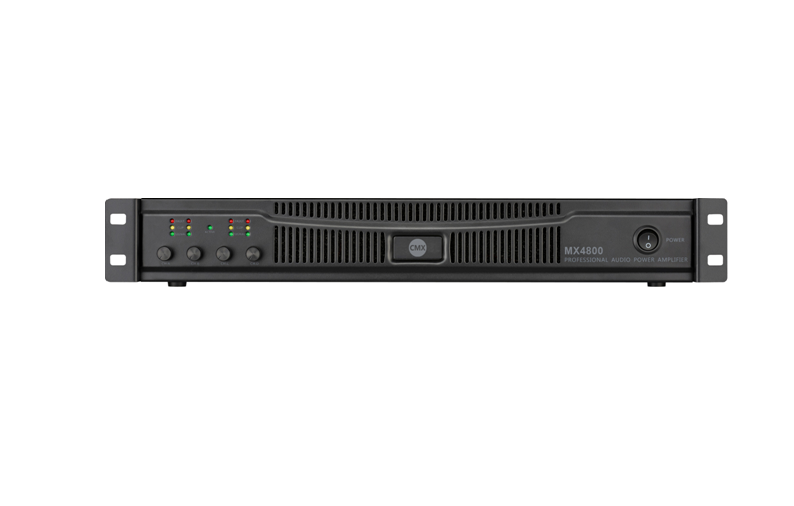

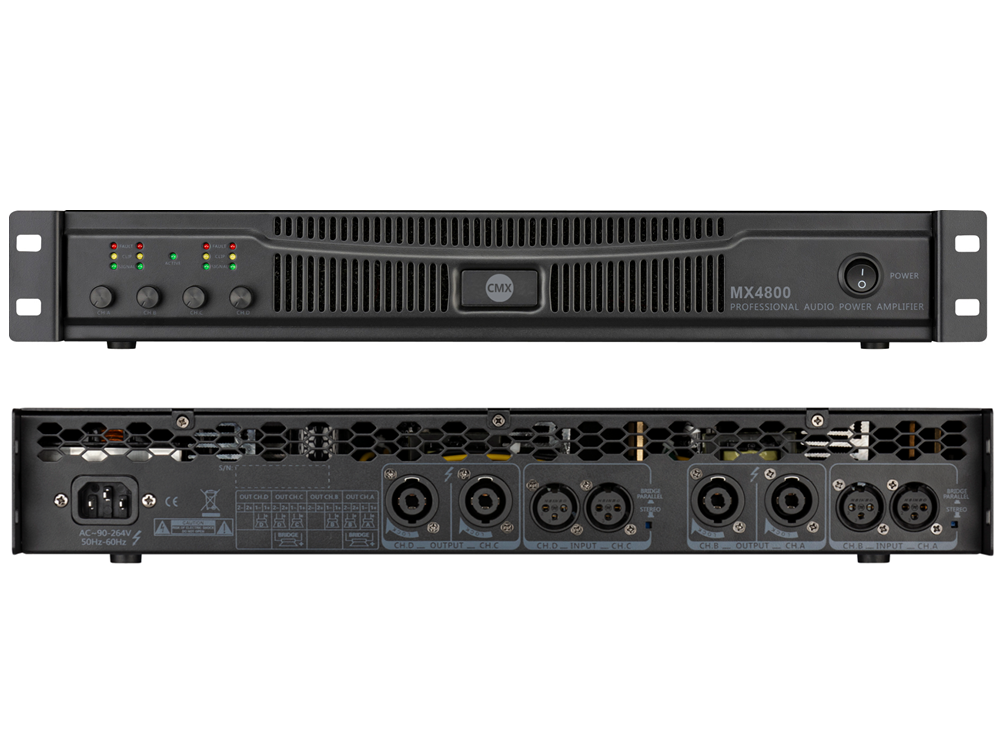

MX4600 MX4800 Four Channel Power Amplifier
MX4600 MX4800 Four Channel Power Amplifier
Feature:
- Ideal for live performance, permanent installation and sound reinforcement system.
- Switching power technology digital Class-D four channel power amplifier.
- Green technology of 85% efficiency of less power consumption, less heat generation and longer life span.
- With PWM special power circuit to ensure excellent cooling system.
- 19” universal rack mount type in 1.5U height.
- Support output at 8Ω & 4Ω & 2Ω and bridged output 8Ω & 4Ω.
- With bridge, parallel & stereo selector on rear panel.
- Rated power output 4×1100W & 4×1480W @4Ω.
- Four inputs by balanced XLR connector.
- Four outputs by balanced Speakon connector.
- LED indicators of fault, clip, signal and active.
- Complete protection includes clip, high temp, overload and short circuit.
- Wide range power supply of AC 90-264V.
Specifications:
|
Model |
MX4600 |
MX4800 |
|
|
Rated Output 8 Ohm |
4 × 600 W |
4 × 800 W |
|
|
Rated Output 4 Ohm |
4 ×1100 W |
4 × 1480 W |
|
|
Rated Output 2 Ohm |
4 × 1320 W |
4 × 1776 W |
|
|
Rated Output 8 Ohm Bridged |
2× 2100 W |
2×2800 W |
|
|
Rated Output 4 Ohm Bridged |
2× 2520 W |
2×3360 W |
|
|
Frequency Response |
5-20 k Hz(±1 dB) |
||
|
Input Sensitivity |
35 dB |
||
|
Input impedance |
20 KΩ balanced, 10 KΩ unbalanced |
||
|
Conversion Rate |
28 V/μs |
||
|
Damping Factor |
＞240 (1 kHz, 8Ω) |
||
|
THD |
＜0.1 |
||
|
S/N Ratio |
113dB |
||
|
Input |
A & B & C & D balanced XLR inputs |
||
|
Output |
A & B & C & D balanced Speakon outputs |
||
|
Power Supply |
90-264V AC~ 50-60 Hz |
||
|
Dimension |
484×300×66 mm |
||
|
Weight |
7.0kg |
8.3kg |
|
