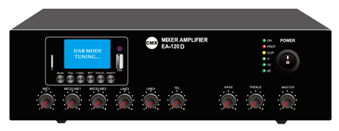

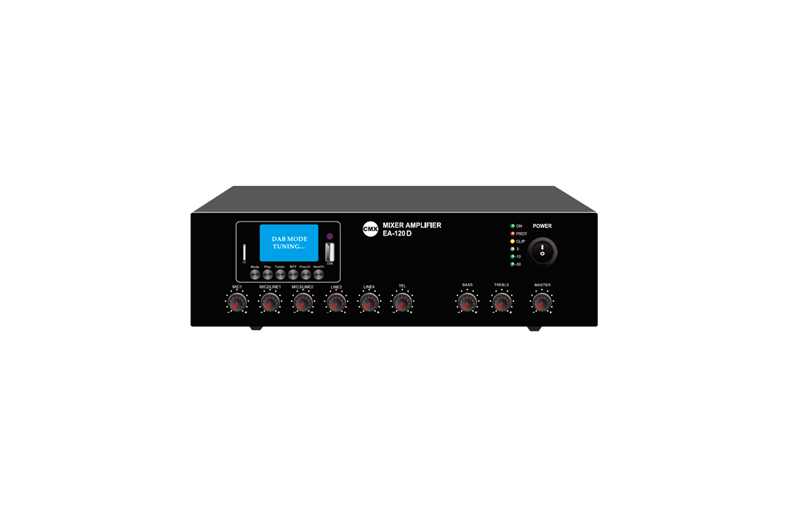

Mixer Amplifier with USB/SD & DAB+ FM & Blue Tooth, EA-30D EA-60D EA-120D
EA-30D, EA-60D & EA-120D is mixer amplifier with DAB+, USB/SD & Bluetooth, its RMS power of 30W, 60W to 120W. 3 mic and 2 aux inputs, support 100V & 8 Ohm loudspeakers connection.
- Tabletop mixer amplifier with media player
- Built-in medial player with USB/SD, FM/DAB+ & Bluetooth
- Rated power output at 30W, 60W to 120W
- Speaker output of 100V or 70V & 4-16Ω
- 3 x mic/line inputs, 2 x RCA line inputs, 1 x TEL input and 1 x RCA line output
- XLR input with switchable +48V phantom power
- With short-circuit, clip, overload and high temp protection
- 230V AC and 24V DC both power supply
Specification:
|
Model |
EA-30D |
EA-60D |
EA-120D |
|
Description |
Tabletop Mixer Amplifier with USB/SD & FM/DAB+ & Bluetooth |
||
|
Rated Power Output |
30W |
60W |
120W |
|
Speaker Outputs |
100V or 70V & 4-16Ω |
||
|
Connector |

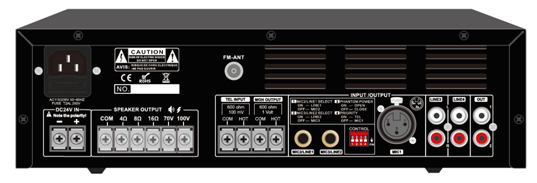

Mic1 input by balanced XLR with phantom power Input2-3 inputs Mic/Line switchable unbalanced 6.3mm jack Line1-2 inputs by RCA, Tel input with MOH, Line output by RCA |
||
|
Input |
Mic1-3: 5-8mV, 600Ω; Line & TEL: 150-470mV, 10KΩ, unbalanced RCA |
||
|
Line Out |
0.775(0dBV) |
||
|
Frequency Response |
60Hz-15kHz(±3dB) |
||
|
S/N Ratio |
Line ≥ 85dB, Mic≥ 72dB |
||
|
THD |
Less than 0.5% |
||
|
Protection |
short-circuit, clip, overload and high temp protection |
||
|
Power Consumption |
60W |
100W |
200W |
|
Power Supply |
230V AC & 24V DC; 50-60Hz |
||
|
Dimension |
320×210×90mm |
||
|
Weight |
3.7kg |
4.3kg |
4.9kg |
