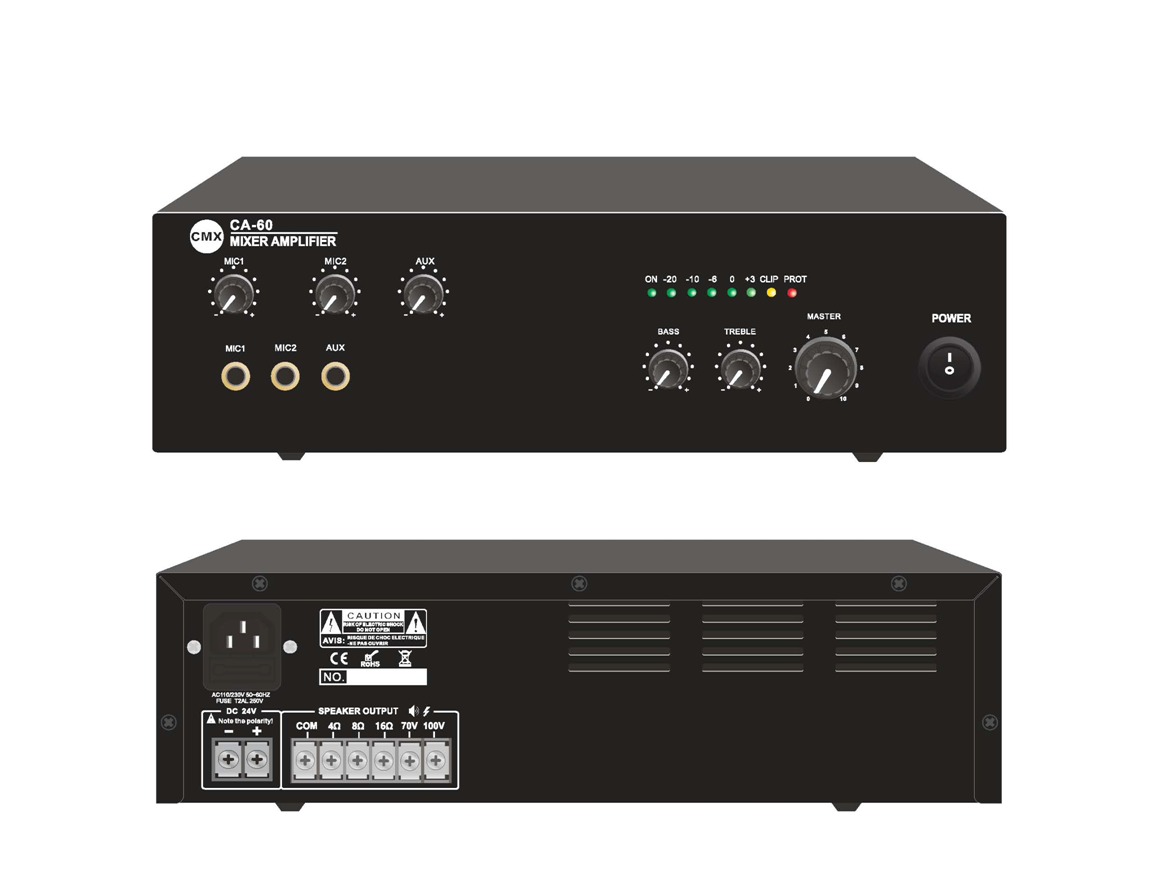

Compact Mixer Amplifier 30W 60W CA-30 CA-60
Compact Mixer Amplifier
CA-30 CA-60
Feature:
Compact mini size public address amplifier
Rate power output at 30W & 60W
Speaker output of 100V or 70V & 4 Ohm-8 Ohm-16 Ohm
LED indicators for power, clip, protect and output level meters
Mic1-2 inputs and Aux input on front panel
Volume control for Mic1-2, Aux, bass/treble and master
Complete amplifier protection includes short-circuit, clip, overload and high temp
230V AC & 24V DC both power supply system
Specification:
|
Model |
CA-30 |
CA-60 |
|
Description |
Compact Mixer Amplifier |
|
|
Rated Power Output |
30W |
60W |
|
Speaker Outputs |
100V or 70V & 4 Ohm-8 Ohm-16 Ohm |
|
|
Connector |
Mic1 input by unbalanced 6.3mm phone jack Mic2 input by unbalanced 6.3mm phone jack Aux input by unbalanced 6.3mm phone jack |
|
|
Input |
MIC1-2: 5-8mV, 600Ω; Aux, 150-470mV, 10KΩ, unbalanced |
|
|
Frequency Response |
60Hz-15kHz(±3dB) |
|
|
S/N Ratio |
Line ≥ 85dB, Mic≥ 72dB |
|
|
THD |
Less than 0.5% |
|
|
Protection |
Short-circuit, clip, overload and high temp protection |
|
|
Power Consumption |
60W |
100W |
|
Power Supply |
230V AC & 24V DC; 50-60Hz |
|
|
Dimension |
320×210×90mm |
|
|
Weight |
3.5kg |
4.0kg |
