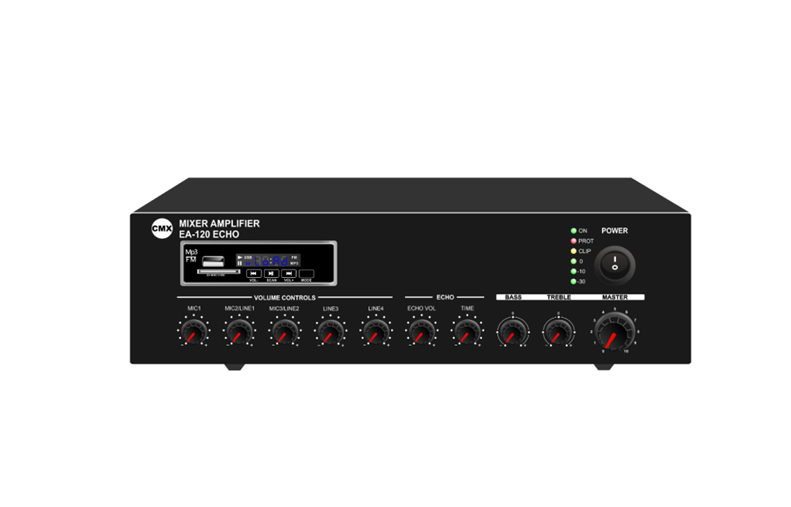

Echo Mixer Amplifier EA-30 ECHO, EA-60 ECHO, EA-120 ECHO
Echo Mixer Amplifier with USB/SD & FM & Blue Tooth
EA-30 ECHO, EA-60 ECHO, EA-120 ECHO
Features:
Public address (PA) mixer amplifier with echo & delay.
Ideal for mosque, church, religious and pray buildings.
Built-in 100V/70V transformer technology.
Tabletop echo mixer amplifier with Echo, Mp3, FM & blue tooth.
Rate power output at 30W, 60W to 120W.
Speaker output of 100V or 70V & 4Ohms-8 Ohms-16 Ohms.
Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and blue tooth.
LED indicators for power, clip, protect and signal.
Mic1-3 and line 1-2. Mic1 of balanced XLR input with phantom power on rear panel. Mic2-3 microphone or line switchable unbalanced 6.3mm phone jack input. Line 1-2 input of RCA input and one RCA line output.
Volume control for Mic1-3, line1-2, Echo/Delay/Mp3/FM, bass/treble and master.
With short-circuit, clip, overload and high temp protection.
AC 110-240V operation system.
Specification:
|
Model |
EA-30 ECHO |
EA-60 ECHO |
EA-120 ECHO |
|
Description |
Mixer Amplifier with Echo & USB/SD & FM & Blue Tooth |
||
|
Rated Power Output |
30W |
60W |
120W |
|
Speaker Outputs |
100V or 70V & 4Ohms-8 Ohms-16 Ohms |
||
|
Connector |
Mic1 input by balanced XLR with phantom power Input2-3 inputs Mic/Line switchable unbalanced 6.3mm phone jack Line1-2 inputs by RCA; Line output by RCA |
||
|
Attenuation |
Microphone1-3, line1-2 and Echo/Delay/Mp3/FM, bass/treble and master |
||
|
Input |
MIC1-3: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA |
||
|
Line Out |
0.775(0dBV) |
||
|
Frequency Response |
60Hz-15kHz(±3dB) |
||
|
S/N Ratio |
Line ≥ 85dB, Mic≥ 72dB |
||
|
THD |
Less than 0.5% |
||
|
Protection |
short-circuit, clip, overload and high temp protection |
||
|
Power Consumption |
60W |
100W |
200W |
|
Power Supply |
AC110-240V /50-60Hz |
||
|
Dimension |
320(W)×210(D)×90(H)mm |
||
|
Weight |
3.7kg |
4.3kg |
4.9kg |
