The PA-MX series mixer amplifier built-in 6×6 audio matrix so it is ideal for multiple room multiple music system. The amplifier could distribute 6 music to different rooms at the same time, 6 units of remote microphone could do live announcement with different priority, 6 remote control panel in each 6 room enable to select audio sources locally and adjust the loudspeaker loudness, moreover there is also interface for voice alarm system in case of emergency. The matrix amplifier built-in audio matrix, media player and power amplifier, so it is all in one solution for small to medium professional sound system and commercial audio. Its rated power output at 6 x 30W, 6 x 60W to 6 x 120W for both 100V & 4-16 Ohm loudspeakers.

Features:

• 6×6 Matrix mixer amplifier with 6 x 30W, 6 x 60W, 6 x 120W outputs.
• 5 sources and EMC input matrix distributed to 6 speaker zones.
• MP3/FM/Bluetooth, 3 mic/line, aux input & EMC mute input with priority.
• 6 channel mixer amplifier controller with audio sources, zone volume control .
• Matrix amplifier with remote control panel and remote paging microphone.
• 6 remote control by CAT5 cable up to 200 meters to select program and control volume.
• 6 remote paging microphone by CAT5 cable up to 200 meters communication.
• Different 6 zone of different music program and different volume output.
• 6 Zone speaker outputs of 100V or 4/8 Ohms speakers.
• 3 mic/line switchable inputs of balanced XLR with 48V phantom power.
• 1 aux input and an integral USB/SD/FM player and Bluetooth can be matrix switched to any of the 6 zones independently.
• Mic 1 channel has a variable override and each microphone input has switchable phantom power.
• 6 zone remote paging microphone for paging & announcement system.
• Designed for multi-room systems requiring different audio sources.
• Integral USB/SD/FM audio player and remote control.
• Internal Bluetooth receiver with mobile use.
• 100V or 4/8 Ohms operation for PA system and hi-fi both sound system.
• 6 independent output zones for multiple room sound system.
• 24V mute contacts to integrate with fire alarm system.
• AC230V and 24V DC both operation system.

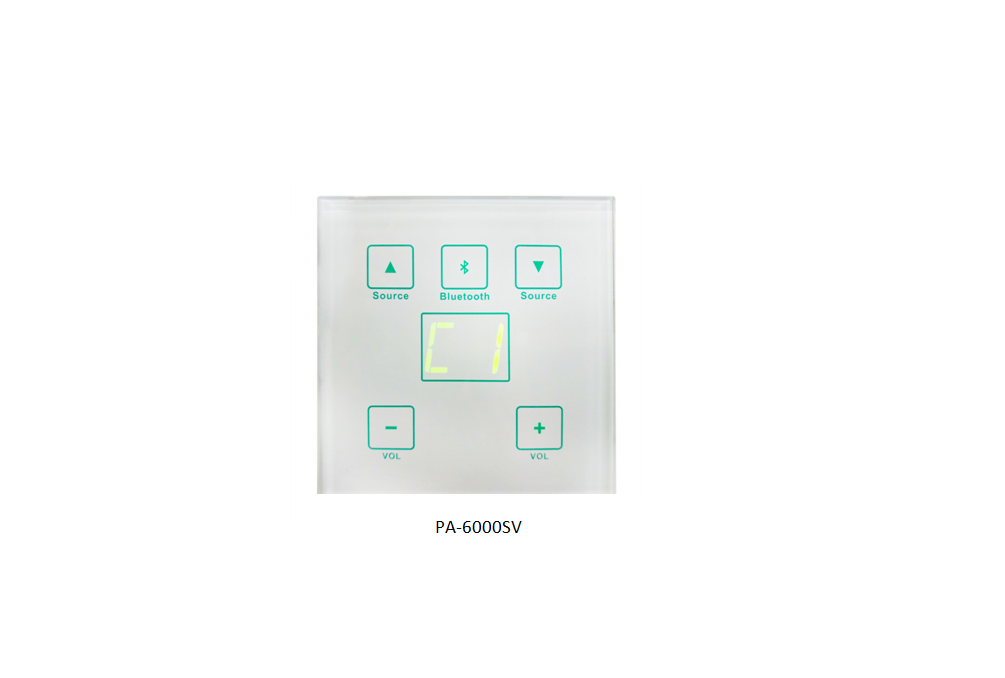

PA-6000SV Remote Control Panel

• Communication through CAT 5 cable up to 200 meters
• Direct power supply from matrix controller
• 5 channel music selection and volume control
• Touch screen panel
• 6 units capacity for each matrix controller

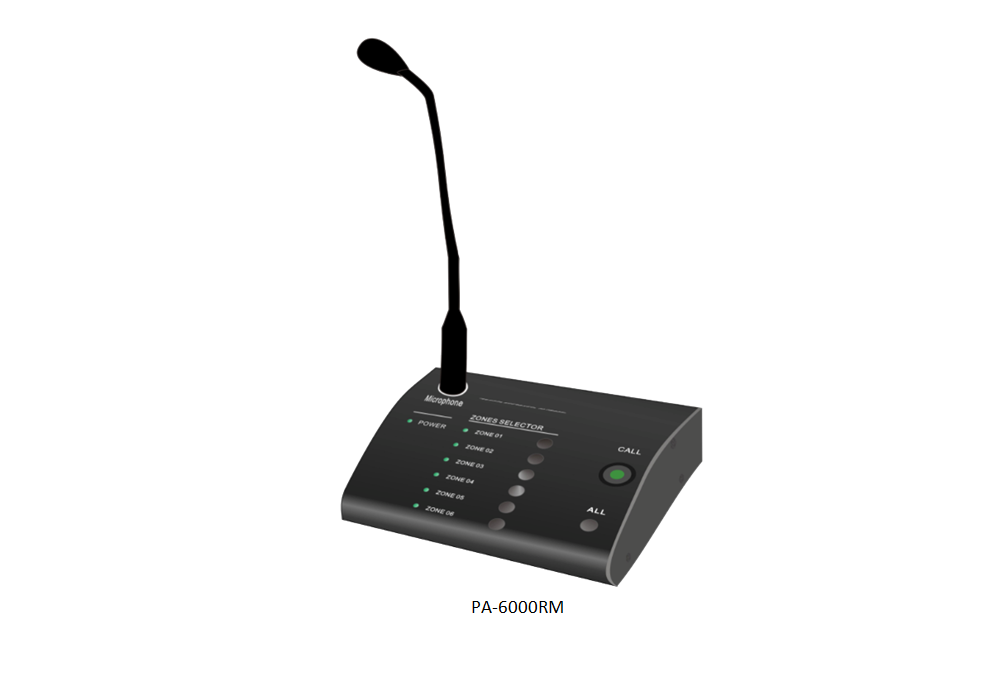

PA-6000RM 6 Zone Remote Microphone

• Communication through CAT 5 cable up to 200 meters
• Direct power supply from matrix controller
• 6 speaker zone individual, group or all zone paging
• Multiple Mic working simultaneously without interference
• 6 units capacity for each matrix controller
