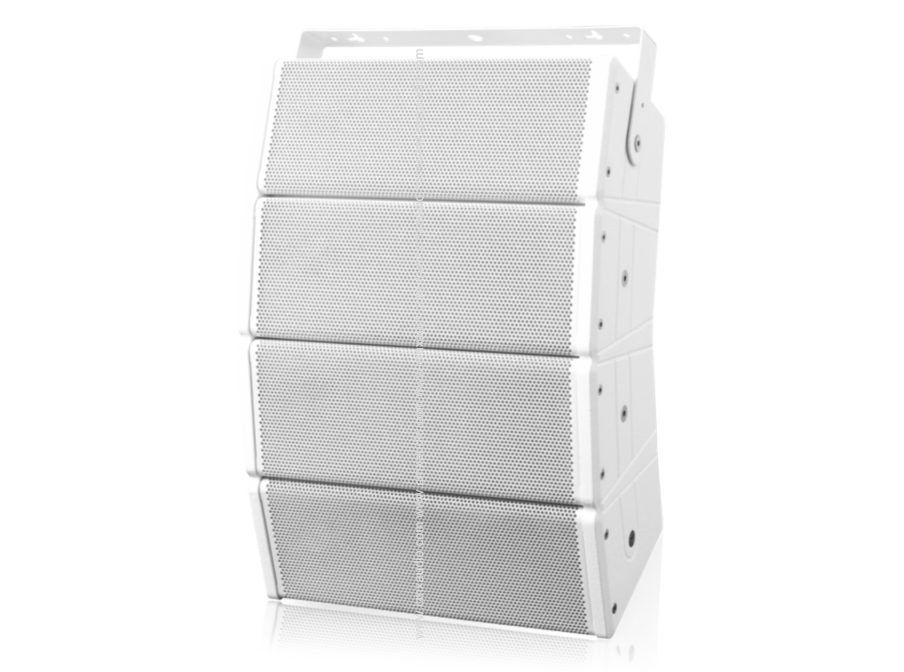

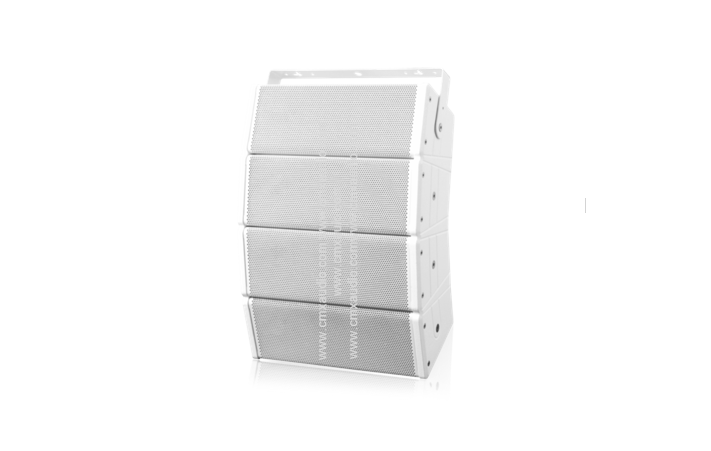

LAS-4200B LAS-4200W Compact Line Array Speaker System
Compact Line Array Speaker System
LAS-4200B & LAS-4200W
Feature:
Ideal for stadium and conventional center sound reinforcement system
Indoor line array speaker system
2-way 4.5” paper woofer and 1.5” tweeter
500W AES power output and PEAK output of 2000W
One complete line array loudspeakers with 4 units moulded together
Adjustable dispersion angle by different angle mounting bracket
MDF wooden material of years durable performance in black or white finish
Hanging bracket and accessories had been included
Applications: Multifunctional Hall, stadium, conventional center, lecture hall, mosque, church etc.
Description:
The LAS-4200B & LAS-4200W is a 4.5” 2-way with 1.5” tweeter compact line array speaker system that permits both constant directivity control over a wide frequency range and changes in directivity. Its AES power output of 500W and PEAK power output at 2000W. The line array loudspeakers as one complete unit with 4 modules moulded together, so different dispersion angle is easily directed via the mounting bracket. The durable MDF wooden material permits of indoor performance of years. It is ideal for reproducing clear sound in spaces with long reverberation times or high background noises. Black or white two colors options. The 2-way compact line array speaker is really first choice for stadium and conventional center indoor sound reinforcement system.
Specification:
Model |
LAS-4200B |
LAS-4200W |
Description |
Compact Line Array Speaker System |
|
Frequency Response |
70Hz-20KHz |
|
Sensitivity (1 W@1m) |
96dB |
|
Nominal Impedance |
8Ω |
|
Rated Power |
500W AES, 2000W peak |
|
LF Driver |
8×4.5" (115mm)/1.5" voice coil |
|
HF Driver |
4x 1.5" (25mm)/1.5" voice coil |
|
Dispersion |
80°×80° |
|
Maximum SPL |
123dB continuous, 129dB peak |
|
Connectors |
2× SPEAKON NL4 |
|
Finish |
MDF Wooden in Black |
MDF Wooden in White |
Net Weight |
13kg |
|
Dimension |
368×178×544mm |
