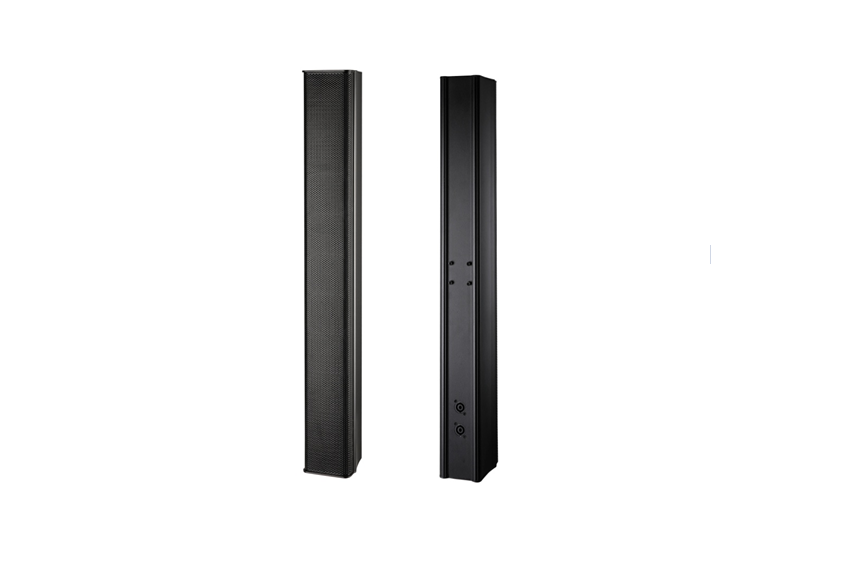

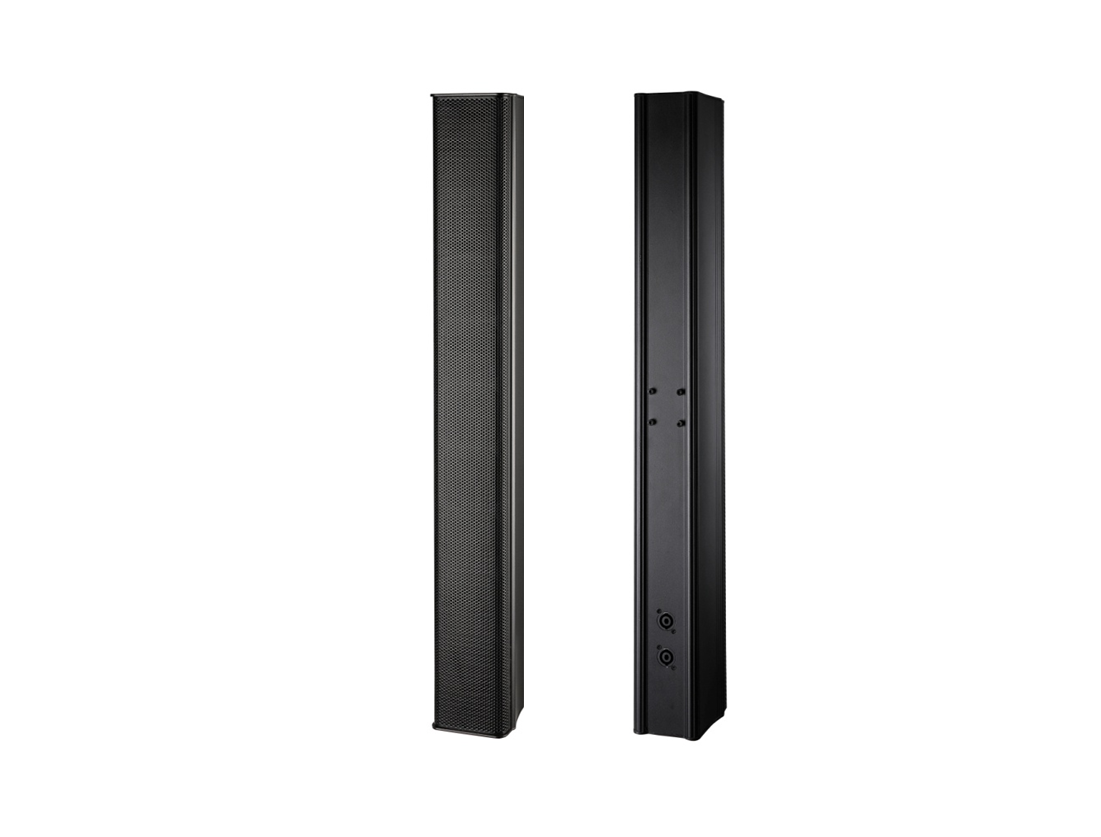

LAS-404 4.5 Inch Column Line Array Loudspeaker System
4.5 Inch Column Line Array Loudspeaker System
LAS-404
Feature:
High-end line array column loudspeaker with a frequency response of 100Hz to 20kHz
Compact passive line array column loudspeakers
4 x 4.5" full range speakers Neodymium magnet
2 x XLR connectors for input or link
RMS power 200W Max 500W
Improved dispersion of horizontal 150 ° & vertical 15°
Design and elegance for easy integration even in the most demanding installations
Compact dimensions ensure listeners will focus on the sound and not the speaker
Mounting bracket L3A purchased separately
Description:
The passive line array speaker LAS-404 is high-end passive line array loudspeaker, an undisputed success in the field of professional audio, into a new range of applications within both the live and fixed installation fields. The passive line array column speaker system is compact and elegant, with a refined yet functional design. Most importantly it offers an uncompromising quality capable of successfully solving applications where conventional systems are inadequate.
Specifications:
|
Model |
LAS-404 |
|
Description |
4.5” Passive Line Array Loudspeaker System |
|
RMS Power |
200 Watts |
|
Continuous Power |
500 Watts |
|
Peak Power |
1000 Watts |
|
Sensitivity |
95dB 1W/1m |
|
MAX SPL |
120/123dB (Bi-Amp) |
|
Nominal Impedance |
8 Ω |
|
Speaker |
4 x 4.5" full range speakers Neodymium magnet |
|
Crossover Frequency |
3K Hz |
|
Horizontal Dispersion |
150 ° |
|
Vertical Dispersion |
15° |
|
High Filter Pass |
80Hz, -24dB |
|
Connector |
2 x XLR connectors for input or link |
|
Material |
Aluminum alloy and steel grill in black |
|
Dimension |
132x540x125 |
|
Weight |
7.7kg |
Mounting Bracket L3A:
The L3A is one versatile mounting bracket which support vertical & horizontal dispersion angle adjustable
