DI-9700SF IP Network Audio System Software
IP Network Audio System Software
DI-9700SF
Feature:
Server of IP network audio system and IP Public Address (PA) system.
Support Windows 2000, Windows 7, Win8 & Win10.
All display in English and system zone capacity more than 6,000.
Support max 5 different sound cards for simultaneously sources collection.
One software packet includes administrator and branch server and alarm server.
Built-in system set up, audio encoder, system monitor, media player, program timer, system memory functions.
Cloud broadcast Mp3 file online, scheduled and matrix at pre-set time to designated loudspeaker zones.
All equipments working status could be monitored and displayed on this software.
Flexible multiple level loudspeaker zone definitions, end-user can define loudspeakers into up to 6000 zones at the same time.
Built-in timer could broadcast pre-recorded message, bell, song to selected zones by trigger contact or manually operation.
The head equipment to encode analog sources into digital source to be transferred over network.

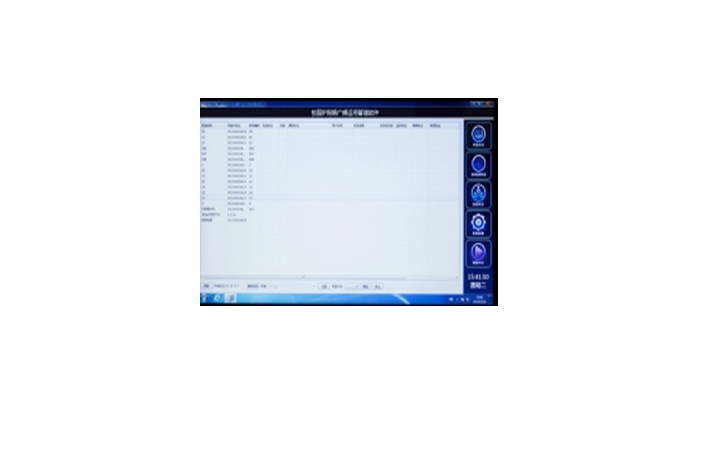

Graphic maps display for visually simple monitoring and operation.
Specification:
|
Model |
DI-9700SF |
|
Description |
IP Network Audio System Software |
|
System |
Windows 2000, XP, Win7, Win8 & Win10 |
|
Network Protocol |
TCP, UDP, ARP, ICMP, IGMP |
|
Network Speed |
10/100Mbps |
|
Audio Sampling |
8KHz-44.1KHz, 16 bits |
|
Transmission Rate |
8Kbps to 320Kbps |
|
S/N Ratio |
≥90dB |
|
Frequency Response |
20Hz-20KHz |
|
Data Delay |
30 milliseconds |
|
Built-in Timer |
Built-in weekly timer |
|
Encoder |
Built-in audio encoder |
|
Audio Format |
MP2, Mp3, PCM & ADPCM |
