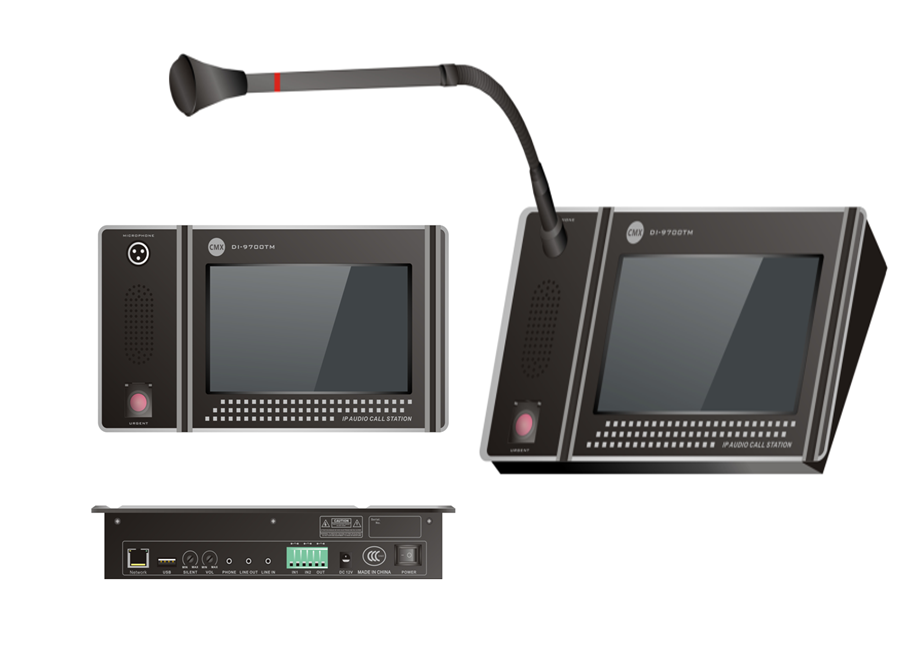

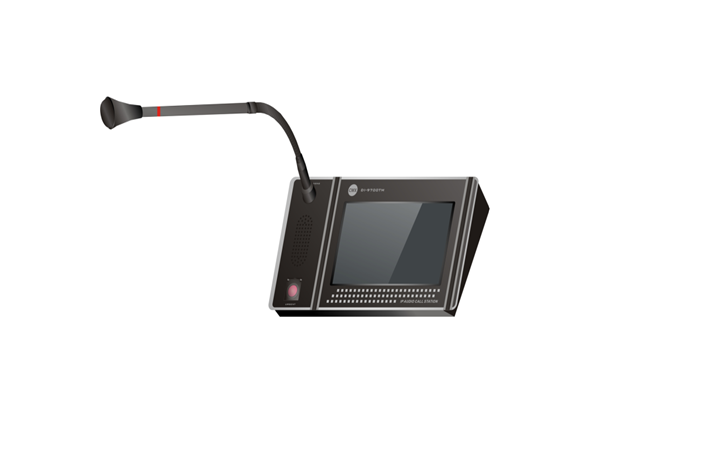

DI-9700TM IP Network Remote Microphone (Touch Screen)

DI-9700TM is one IP based network remote paging microphone for IP network audio system, through which live speech, zone paging and pre-recorded voice alarm could be operated to different zones over IP network.
Chi tiết sản phẩm

IP Network Remote Microphone (Touch Screen)

DI-9700TM





Description:

The DI-9700TM IP Network Paging Microphone or IP paging console or IP call station is used to paging over network to speaker zones. This paging microphone could be installed to anywhere of the LAN system. The IP network paging microphone has several paging modes include: single zone paging, multiple zone paging, group paging, all zone paging, two way intercom etc. The IP network paging microphone is built-in a 7” touch screen LCD to display program status and its IP address, end-user is accessible to change the IP setting with password. It is built-in a 5W monitor speaker with excellent sound clearance so as to ensure the communication is smooth and clear. One line input from external audio source player enable directly streaming over network to assigned zone output. This microphone design is adopted advanced technology to avoid echo noise and to avoid data delay as well.





Feature:

Touch screen IP remote microphone or IP call station for IP public address system

Full duplex two way communication between different remote microphones

With 7 inch LCD to control up to 6,000 speaker zones

With programmable swift key for automatic control

Several paging capacity: single zone, multiple zone, group paging, all zone paging& two way intercom

Built-in 5W full-range monitor speakers with clear voice restoration and no echo noise

With USB input to broadcast pre-recorded voice message to different zones

One line input from external audio source player enable directly streaming over network to assigned zone output

Embed PC technology, built-in DSP & high speed industrial chip to ensure start time less than 1 second

With one line input and one line output, USB input, 3.5mm monitor out, control input and two control outputs

12V DC power supply, the power adapter is included in the packaging





Specification:

Model

IP-600TM

Description

IP Network Remote Microphone (Touch Screen)

Communication Protocol

TCP/IP, UDP, IGMP, ARP, UDP

Audio Format

MP3/MP2

Sampling Rate

8K~48KHz

Transmission Speed

10M/100Mbps

Frequency Response

20Hz~16KHz (+1dB, -3dB)

T.H.D.

≤0.3%

S/N Ratio

>70dB

Connector

One RJ45 port, one line input, one line output, one USB input

3.5mm monitor out, control input and two control outputs

Working temp

-5 ~ +40

Humidity

10% ~ 90%

Power Consumption

≤10W

Power Supply

12V DC

Dimensions

250x163x42mm

Weight

2.2Kg
