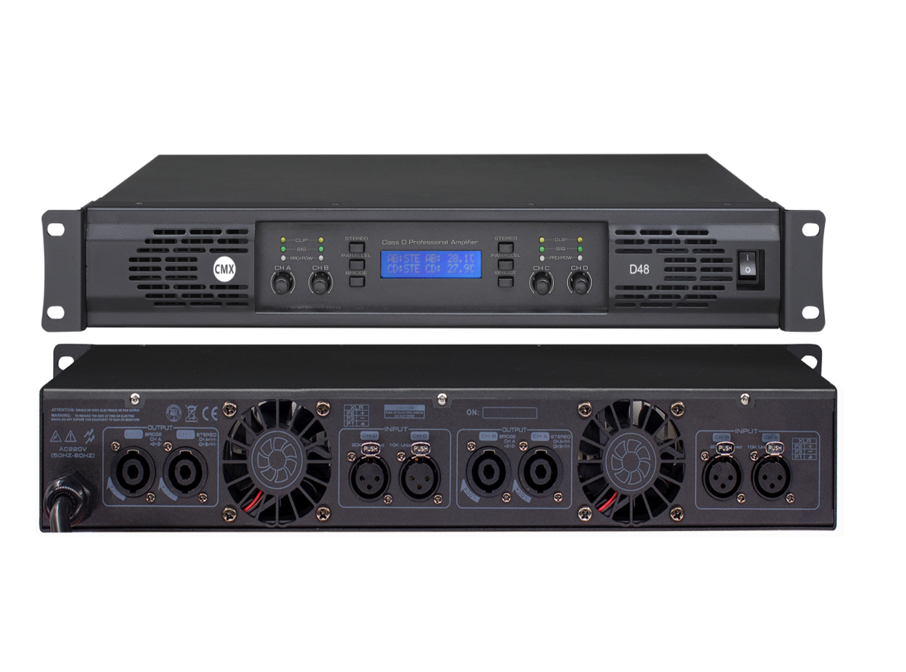

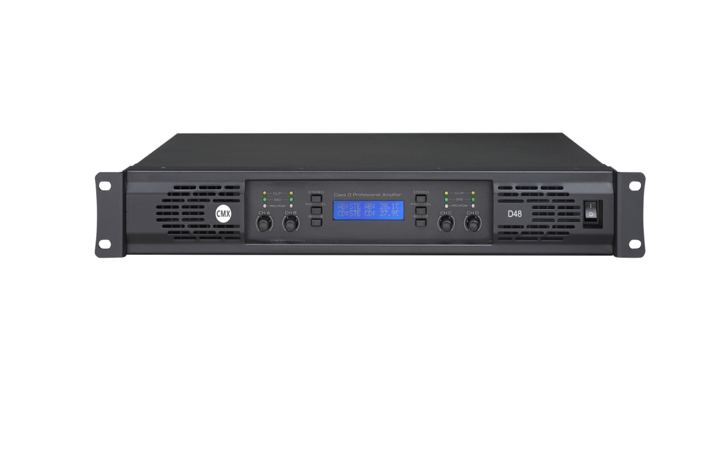

D46 D48 D410 D412 Digital Quad Power Amplifier
Digital Quad Power Amplifier
D46 D48 D410 D412
Feature:
Ideal for live performance, permanent installation and sound reinforcement system.
Switching power technology digital Class-D four channel power amplifier.
Green technology of 95% efficiency of less power consumption, less heat generation and longer life span.
With PWM special power circuit to ensure excellent cooling system.
19” universal rack mount type in 1.5U height.
Support quad output at 8Ω &4Ω, 2Ωand bridged output 8Ω& 4Ω.
With bridge, parallel & stereo selector on rear panel.
Rated power output 4×1100Wto 4×1800W @4Ω.
Four inputs by balanced XLR connector.
Four outputs by balanced Speakon connector.
LCD display shows mode (stereo, bridge) temp and volume level.
LED indicators of fault, clip, signal and active.
Complete protection includes DC, soft start, clip, high temp, overload and short circuit.
Wide range power supply of AC 160-240V.
Specifications:
|
Model |
D46 |
D48 |
D410 |
D412 |
|||
|
Description |
Digital Quad Power Amplifier |
||||||
|
Rated Output 8 Ohm Stereo |
4×600 W |
4×800 W |
4×1000 W |
4×1200 W |
|||
|
Rated Output 4 Ohm Stereo |
4×1100 W |
4×1200 W |
4×1600 W |
4×1800 W |
|||
|
Rated Output 2 Ohm Stereo |
4×900 W |
4×1000 W |
4×1400 W |
4×1600 W |
|||
|
Rated Output 8 Ohm Bridged |
2200W |
2400W |
6400W |
7200W |
|||
|
Rated Output 4 Ohm Bridged |
2400W |
2800W |
6000W |
6400W |
|||
|
Frequency Response |
20-20 kHz (±1 dB) |
||||||
|
Input Sensitivity |
0.775V |
||||||
|
Input impedance |
20 KΩ balanced, 10 KΩ unbalanced |
||||||
|
Damping Factor |
＞550(1 kHz, 8Ω) |
||||||
|
Crosstalk |
＞100dB (1 kHz, 8Ω) |
||||||
|
THD |
＜0.05%, 8Ω 1KHz |
||||||
|
S/N Ratio |
＞105dB |
||||||
|
Input |
Four balanced XLR inputs |
||||||
|
Output |
Four balanced Speakon outputs |
||||||
|
Protection |
DC, soft start, clip, high temp, overload and short circuit |
||||||
|
Power Supply |
160-240V AC~ 50-60 Hz |
||||||
|
Dimension |
484×290×66 mm (1.5U) |
||||||
|
Weight |
7.3kg |
7.5kg |
11.5kg |
12.1kg |
|||
