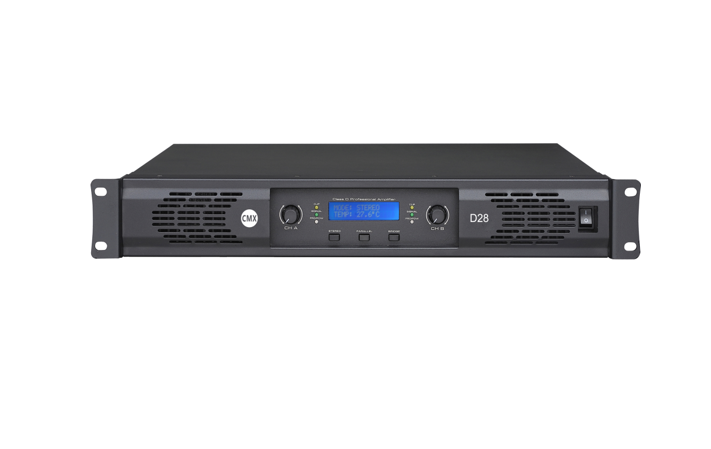

D26 D28 D210 D212 Digital Stereo Power Amplifier
Digital Stereo Power Amplifier
D26 D28 D210 D212
Feature:
Ideal for live performance, permanent installation and sound reinforcement system.
Switching power technology digital Class-D two channel power amplifier.
Green technology of 95% efficiency of less power consumption, less heat generation and longer life span.
With PWM special power circuit to ensure excellent cooling system.
19” universal rack mount type in 1.5U height.
Support stereo output at 8Ω,4Ω& 2Ω and bridged output 8Ω & 4Ω.

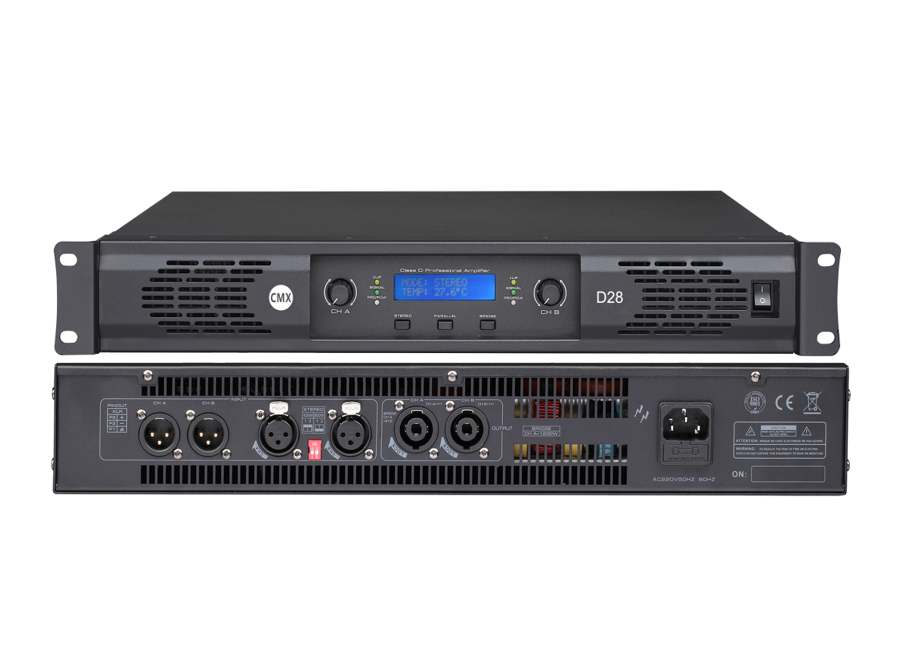

With bridge, parallel & stereo selector on rear panel.
Rated power output 2×1100W to 2×1800W @4Ω.
Two inputs& two link by balanced XLR connector.
Two outputs by balanced Speakon connector.
LCD display shows mode (stereo, bridge) temp and volume level.
LED indicators of fault, clip, signal and active.
Complete protection includes DC, soft start, clip, high temp, overload and short circuit.
Wide range power supply of AC 160-240V.
Specifications:
|
Model |
D26 |
D28 |
D210 |
D212 |
|||
|
Description |
Digital Stereo Power Amplifier |
||||||
|
Rated Output 8 Ohm Stereo |
2×600 W |
2×800 W |
2×1000 W |
2×1200 W |
|||
|
Rated Output 4 Ohm Stereo |
2×1100 W |
2×1200 W |
2×1600 W |
2×1800 W |
|||
|
Rated Output 2 Ohm Stereo |
2×900 W |
2×1000 W |
2×1400 W |
2×1600 W |
|||
|
Rated Output 8 Ohm Bridged |
1100W |
1200W |
3400W |
3600W |
|||
|
Rated Output 4 Ohm Bridged |
1200W |
1400W |
3000W |
3200W |
|||
|
Frequency Response |
20-20 kHz (±1 dB) |
||||||
|
Input Sensitivity |
0.775V |
||||||
|
Input impedance |
20 KΩ balanced, 10 KΩ unbalanced |
||||||
|
Damping Factor |
＞550(1 kHz, 8Ω) |
||||||
|
Crosstalk |
＞100dB (1 kHz, 8Ω) |
||||||
|
THD |
＜0.05%, 8Ω 1KHz |
||||||
|
S/N Ratio |
＞105dB |
||||||
|
Input |
A & B balanced XLR inputs& Link |
||||||
|
Output |
A & B balanced Speakon outputs |
||||||
|
Protection |
DC, soft start, clip, high temp, overload and short circuit |
||||||
|
Power Supply |
160-240V AC~ 50-60 Hz |
||||||
|
Dimension |
484×290×66 mm (1.5U) |
||||||
|
Weight |
5.5kg |
5.8kg |
6.1kg |
6.3kg |
|||
