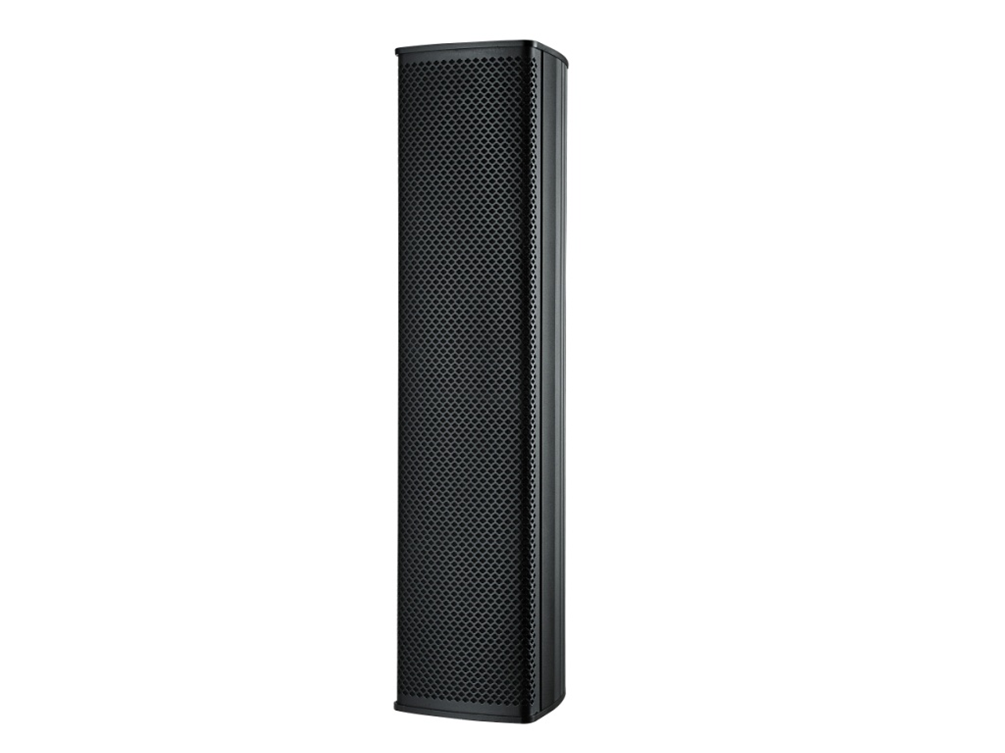

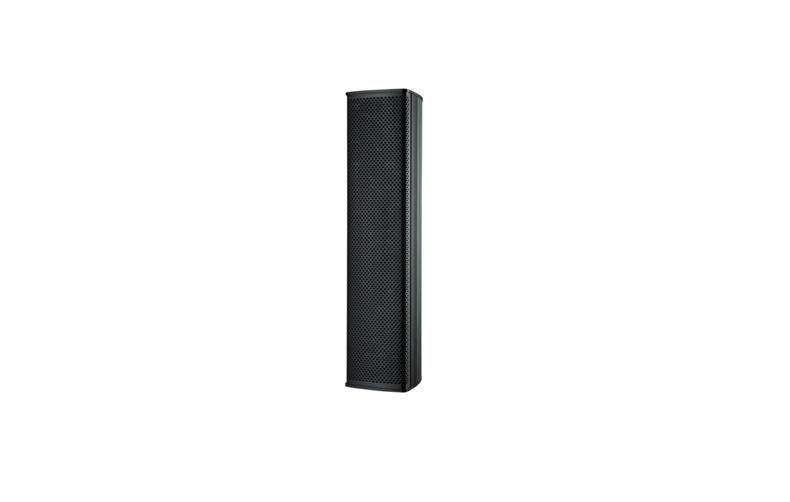

Active Line Array Column Loudspeakers LAS-404A

LAS-404A is one active line array column speaker built-in amplifier for professional sound system and sound reinforcement system in meeting room and stadium sound system, hi-fi sound quality, even distribution sound speaker system.
Chi tiết sản phẩm



Descriptions:

The active line array speaker LAS-404A is built-in DSP and class-D Amplifier, which is true line array technology, an undisputed success in the field of professional audio, into a new range of applications within both the live and fixed installation fields. The active line array column speaker system is compact and elegant, with a refined yet functional design. Most importantly it offers an uncompromising quality capable of successfully solving applications where conventional systems are inadequate.


Features:

High-end line array column loudspeaker with a frequency response of 100Hz to 20kHz

Compact active line array column loudspeakers

Built-in power high efficiency 85% class-D amplifier

Built-in DSP processor and control software

DSP processor includes gain control, EQ, delay, limiter, reverb, echo, X-over, compressor and phase etc

4 x 4.5" full range speakers Neodymium magnet

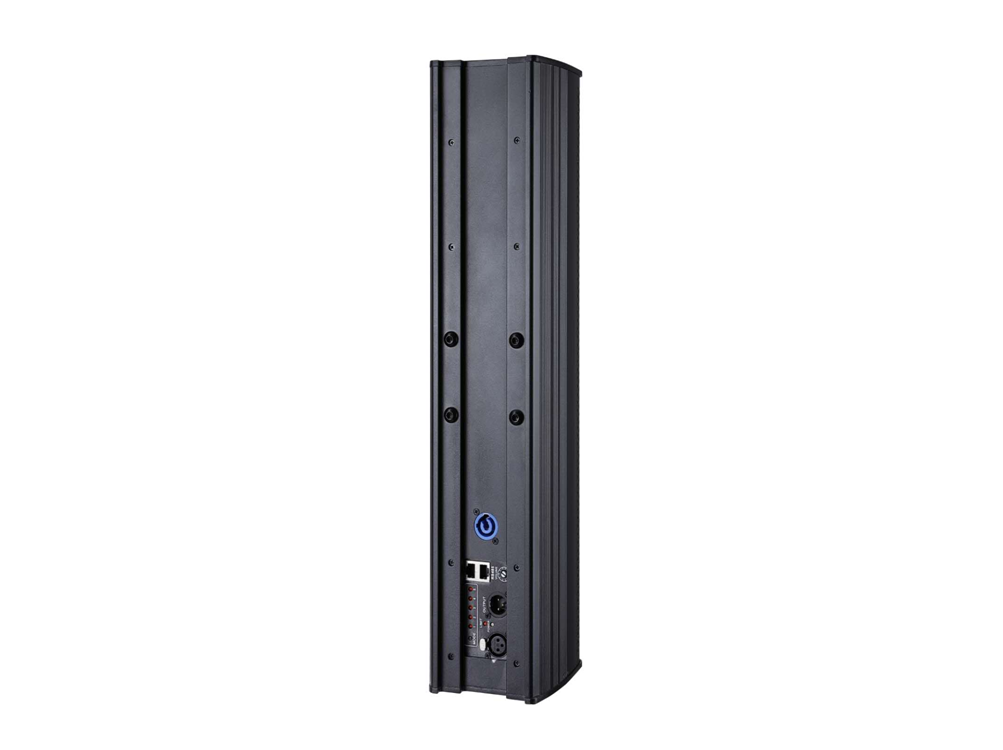

1 x Euroblock connectors for power supply

2 x XLR connectors for input or link

2 x RJ45 for DSP control & RS485

RMS power 240W Max 500W

Improved dispersion of horizontal 150 ° & vertical 15°

Design and elegance for easy integration even in the most demanding installations

Compact dimensions ensure listeners will focus on the sound and not the speaker

Weatherproof IP54 for indoor & outdoor applications

Mounting bracket L3A purchased separately



Specifications:

Model

LAS-404A

RMS Power

240 Watts/Max 500 Watts

Built-in Amplifier

350 Watts RMS, Class-D, 85% efficiency

Sensitivity

96dB 1W/1m

MAX SPL

122/126dB (Bi-Amp)

Nominal Impedance

8 Ω

Speaker

4 x 4.5" full range speakers Neodymium magnet

IP Rate

IP54

Crossover Frequency

3K Hz

Horizontal Dispersion

150 °

Vertical Dispersion

15°

High Filter Pass

100Hz, -24dB

Connector

1 x Euroblock connectors for power supply, 2 x XLR connectors for input or link

2 x RJ45 for DSP control & RS485

DSP Processor

Gain control, EQ, delay, limiter, reverb, echo, X-over, compressor and phase etc

Dimension

132x540x125

Weight

6.2kg
