6 Channel Pre-Amplifier or Mixer PA-100MX
Description:

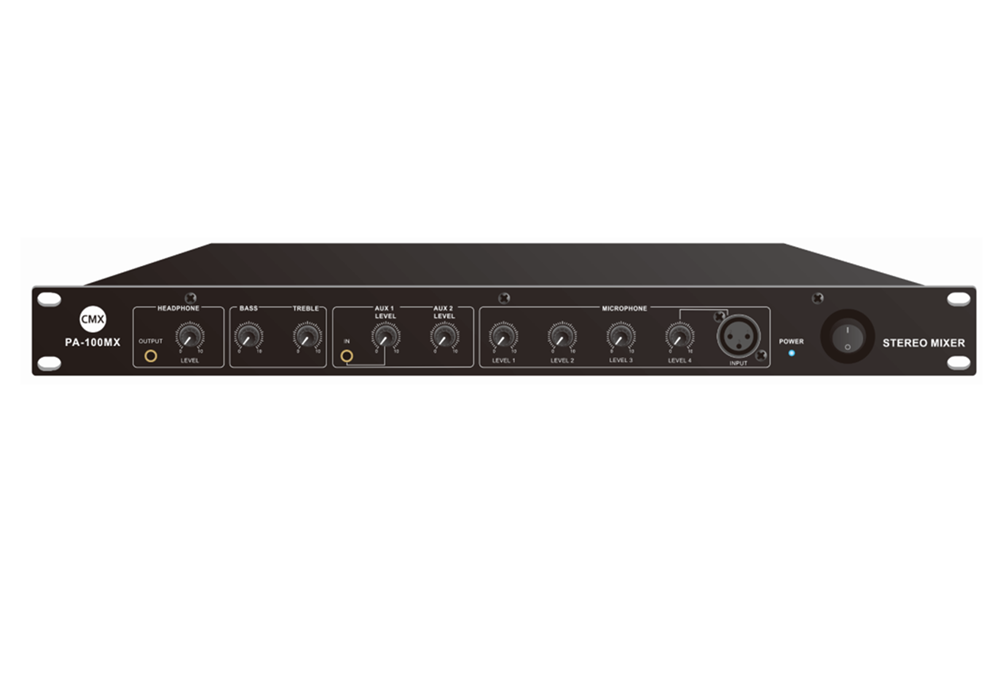

The PA-100MX is a versatile mixer amplifier from CMX AUDIO, which is a six channel stereo mixer, 19” rack mount design of 1RU height, with four balanced microphone inputs and two stereo line inputs. Stereo balanced left and right channel outputs. The unit is ideal for installs such as restaurants or night clubs where space is a consideration, without compromising audio quality. A convenient front-panel 3.5mm jack has been included for connection to any standard MP3 player's output. High quality all metal chassis. Wide range of AC power operation from 100V to 240V.
Feature:
- Six channel stereo mixer or stereo pre-amplifier
- 19” rack mount design of 1RU height
- Four XLR Microphone Inputs (including a paralleled front panel input)
- Two Stereo Source Inputs, two RCA and one
- front panel stereo 3.5mm
- Stereo XLR Balanced output
- With 3.5mm headphone output for monitor use
- Wide range of AC power operation from 100V to 240V
Specification:
|
Model |
PA-100MX |
|
Description |
Six Channel Stereo Mixer |
|
Mic Input |
600 Ohms XLR balanced |
|
Line Input |
22K Ohms RCA |
|
Max Input Level |
Mic: -14 dBV |
|
Source: 24 dBV |
|
|
Headphone Output Impedance |
>8 Ohms |
|
Connector |

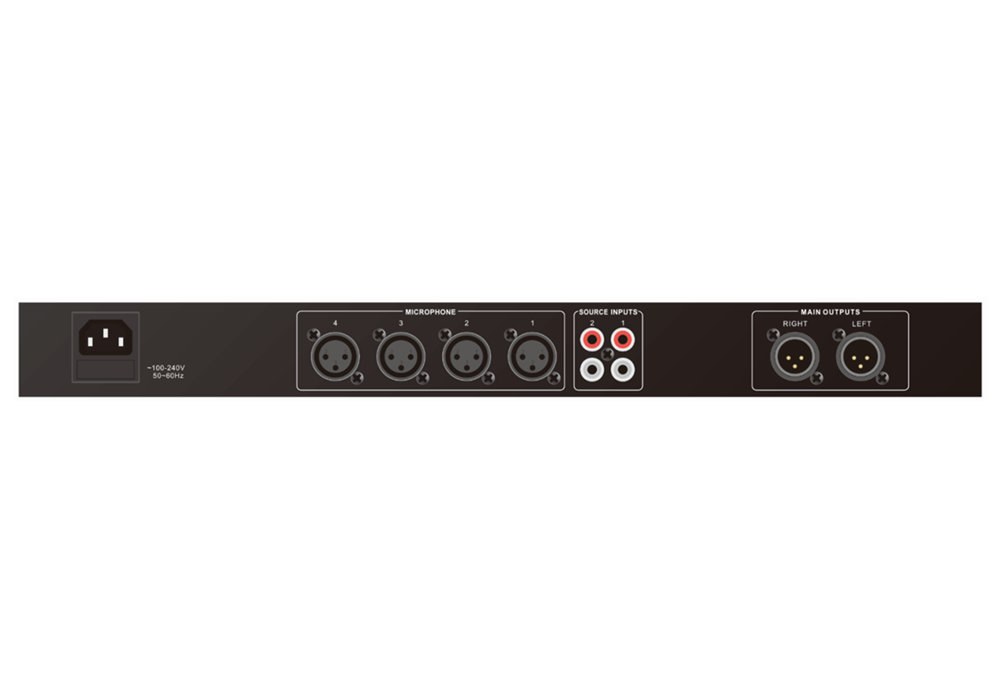

Mic1-4 balanced XLR inputs |
|
Stereo RCA 1-2 input |
|
|
3.5mm Aux1 input |
|
|
3.5mm headphone output |
|
|
Balanced stereo XLR outputs |
|
|
Output Level |
+17 dBV max |
|
Output Impedance |
100 Ohms Balanced |
|
Max Gain |
Mic: 60 dB |
|
Source: 26 dB |
|
|
Tone Control |
+/-12 dB 100 Hz Bass |
|
+/-12 dB 11kHz Treble |
|
|
THD |
<.025% |
|
S/N Ratio |
96 dB |
|
Dimension |
483 x 440 x 100mm |
|
Weight |
2.3kg |
