4.5 Inch Line Array Loudspeaker System LAS-904D
4.5 Inch Line Array Loudspeaker System
LAS-904D
Feature:
High-end line array column loudspeaker with a frequency response of 100Hz to 20kHz
Compact passive line array column loudspeakers
9 x 4.5" full range speakers
2 x XLR connectors for input or link
Continuous Pink Noise 360 Watts and Peak Program 720 Watts
Improved dispersion of horizontal 140 ° & vertical 50°
Design and elegance for easy integration even in the most demanding installations
Compact dimensions ensure listeners will focus on the sound and not the speaker
Ideal for indoor lecture hall, music bar, concert, auditorium professional sound system
mounting bracket included support vertical & horizontal dispersion angle adjustable
Description:
The passive line array speaker LAS-904D is high-end passive line array loudspeaker, an undisputed success in the field of professional audio, into a new range of applications within both the live and fixed installation fields. The passive line array column speaker system is compact and elegant, with a refined yet functional design. Most importantly it offers an uncompromising quality capable of successfully solving applications where conventional systems are inadequate.
Specifications:
|
Model |
LAS-904D |
|
Description |
4.5” Line Array Loudspeaker System |
|
Continuous Pink Noise |
360 Watts |
|
Peak Program |
720 Watts |
|
Amplifier Power |
650 Watts |
|
Frequency Response |
100-20kHz |
|
Sensitivity |
100dB 1W/1m |
|
MAX SPL |
128/134dB (Bi-Amp) |
|
Nominal Impedance |
8 ohms |
|
Speaker |
9 x 4.5" full range speakers |
|
Crossover Frequency |
3K Hz |
|
Horizontal Dispersion |
140 ° |
|
Vertical Dispersion |
50° |
|
High Filter Pass |
100Hz, -24dB |
|
Connector |
2 x XLR connectors for input or link |
|
Material |
MDF and steel grill in black |
|
Dimension |
146x1150x150 |
|
Weight |
14kg |

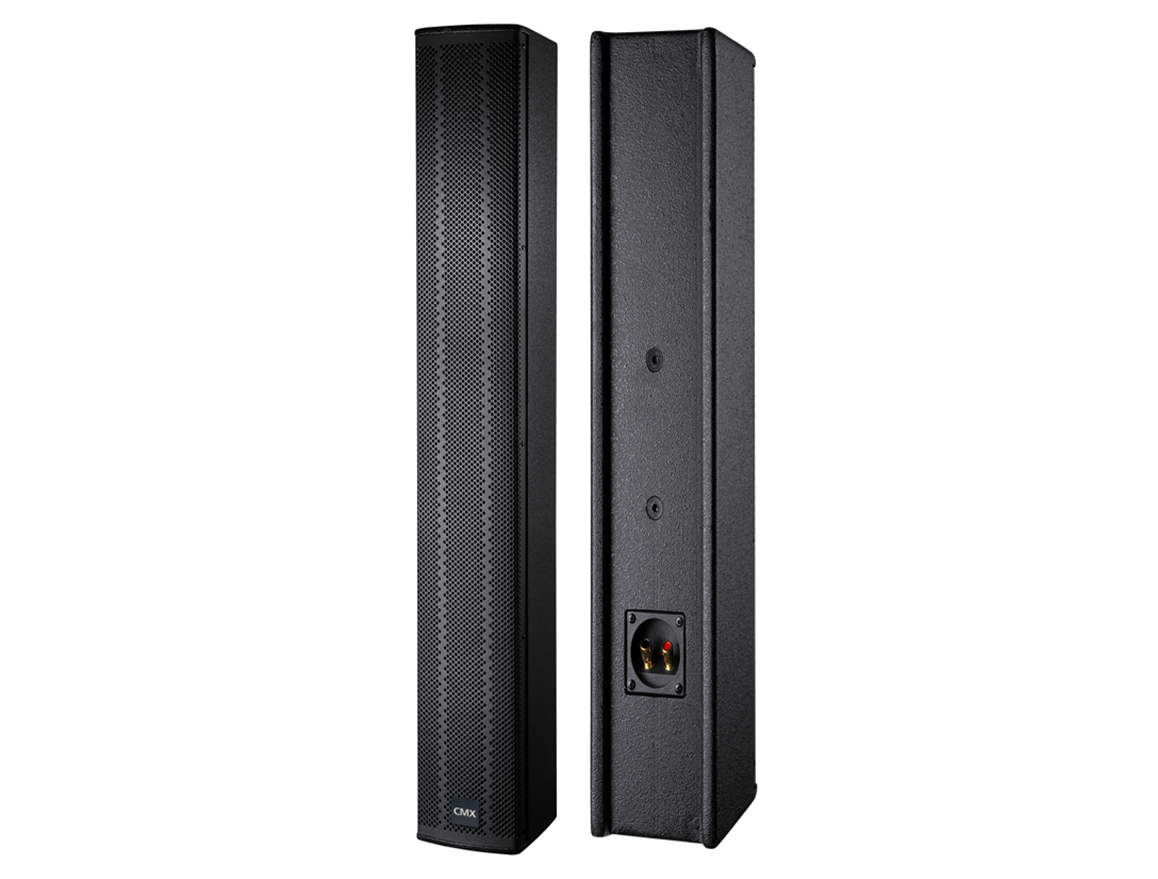

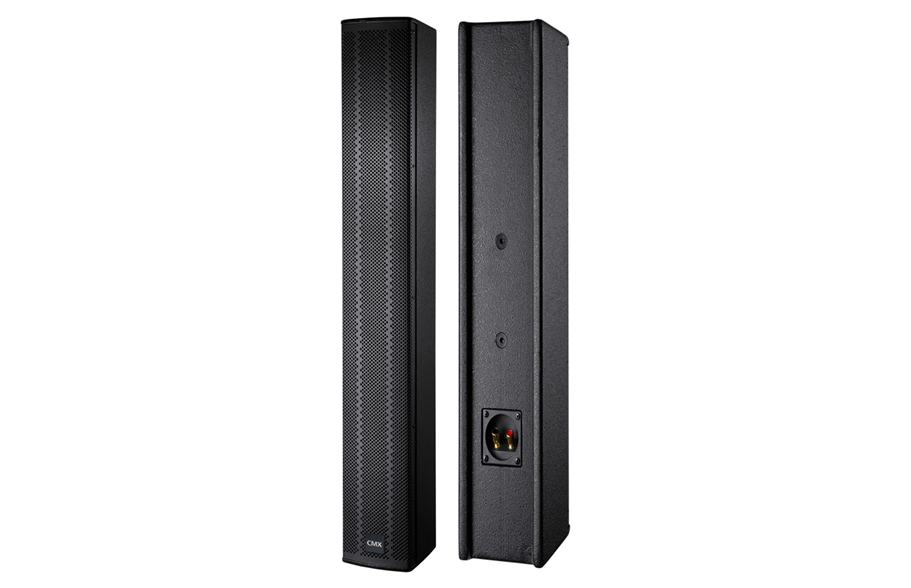

Rear View & Mounting Bracket:
