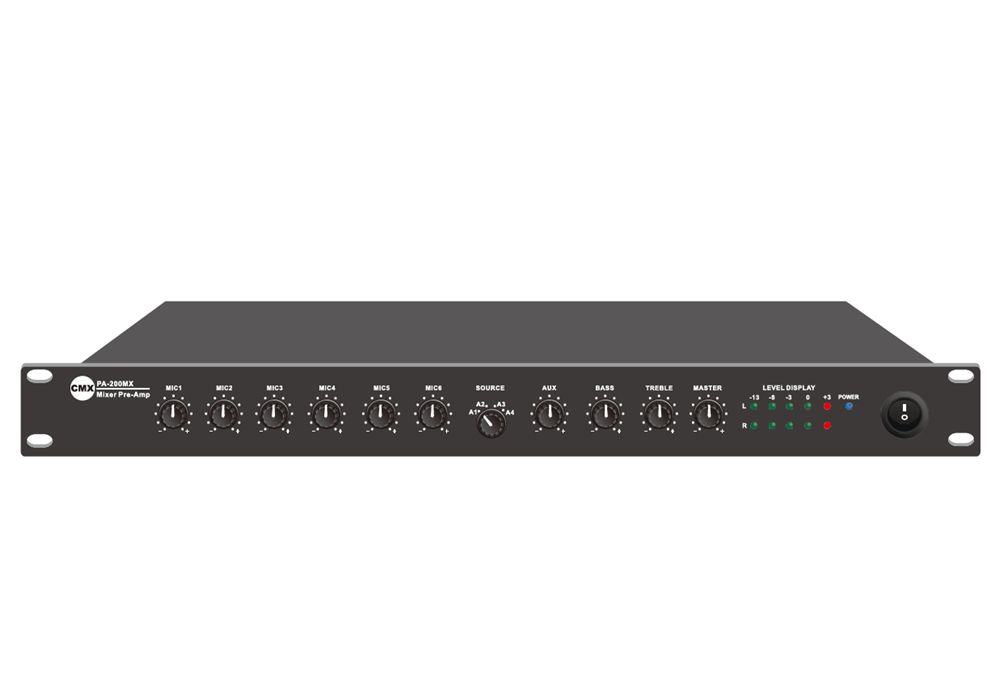

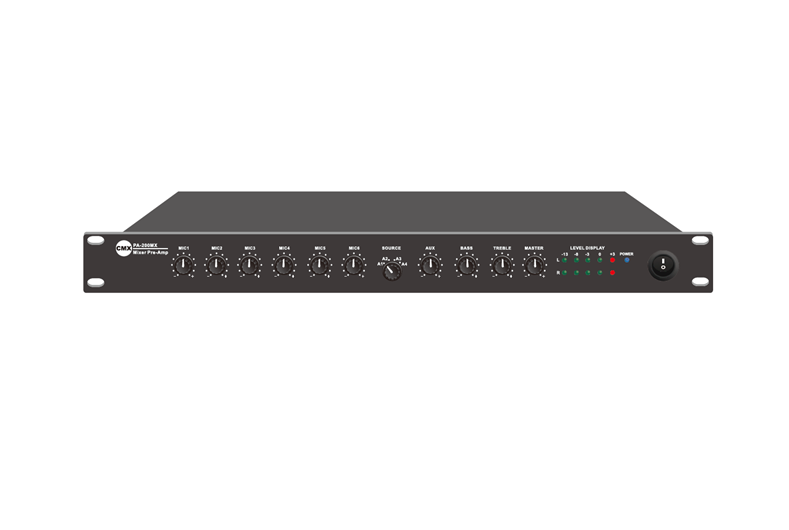

11 Channel Stereo Mixer & Pre-Amplifier PA-200MX
Description:
The PA-200MX is a versatile mixer or stereo pre-amplifier, which is design for public address and professional audio both applications. The stereo mixer could feed 6 balanced mic/line input and another 4 aux inputs, plus one interface with voice alarm system. Different priority input level makes it easy for a simple conference system, each microphone input support 48V phantom power. Dual AC 110V-240V and 24V DC power supply system. Ideal with DA-2500 two channel amplifier to set up 2 zone public address system or stereo professional sound system for mosque, classroom, meeting room and hotel sound system etc.
Feature:
- 11 inputs stereo mixer or stereo pre-amplifier
- 19” rack mount design of 1U height

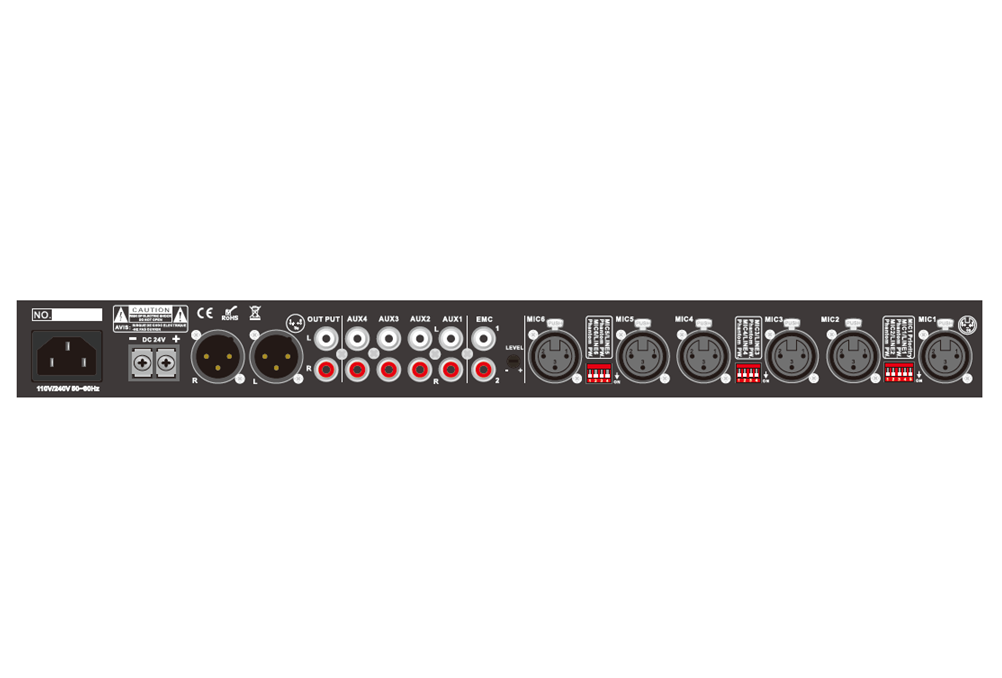

- 6x balanced Mic/Line inputs, Aux 1-4 inputs and EMC input
- Individually Mic/Line switchable with 48V phantom power
- REC output and stereo balanced XLR outputs
- Input priority from high to low: Mic1>EMC>Mic2-5 or EMC>Mic1>Mic2-5
- 100V to 240V AC and 24V DC both power supply
Specification:
|
Model |
PA-200MX |
|
Description |
11 Inputs Stereo Mixer |
|
Input |
6x balanced Mic/Line inputs, XLR, 600Ω, 5mV Aux 1-4 inputs, RCA, 10kΩ, 200mV EMC input, RCA 10kΩ, 200mV |
|
Output |
Stereo balanced XLR, 10kΩ, 0.775mV |
|
Frequency Response |
60-15KHz |
|
THD |
<0.01% at 1kHz |
|
S/N Ratio |
>70dB |
|
Priority |
Mic1>EMC>Mic2-5 or EMC>Mic1>Mic2-5 |
|
Power Consumption |
15W |
|
Power Supply |
100V to 240V AC and 24V DC both power supply |
|
Dimension |
483 x 440 x 100mm |
|
Weight |
2.6kg |
