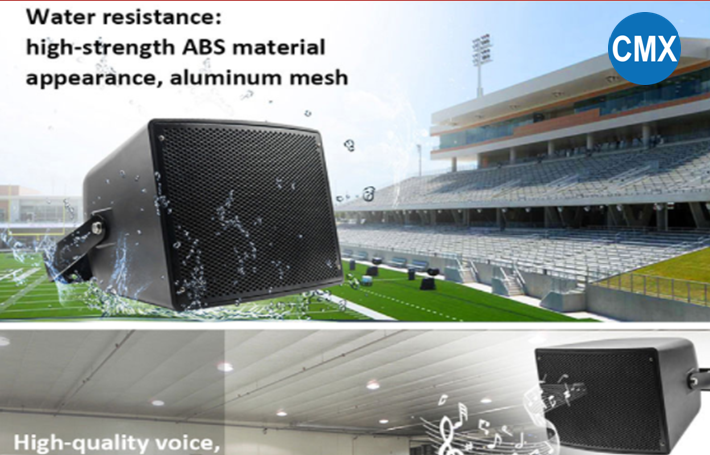

Outdoor High Power Music Loudspeakers for Airport and Train Station Sound System

HSK-110AT Two Way Coaxial All weather Loudspeaker is designed for outdoor sound reinforcement system and public address system, 10 inch woofer with tweeter, it is designed for outdoor applications of IP66 waterproof rate, 200W RMS power output and support 100V/70V and 8 Ohms.

Outdoor High Power Music Loudspeakers for Airport and Train Station Sound System



2-Way Coaxial All Weather Loudspeaker
HSK-110AT


Description:

The HSK-110AT 10" all-weather outdoor loudspeaker offers superior voice and music reproduction with a 90° x 90° coverage angle from a durable UV protected ABS construction. Outdoor level of IP66 rated for long-lasting reliability in harsh environmental conditions, this 100V transformer built-in all weather outdoor loudspeaker incorporates a coaxial high-power 10" woofer and 1.5" tweeter that delivers full range frequency response up to 70-20KHz to meet all indoor and outdoor music applications. The all weather loudspeaker is perfect for background and foreground music, paging, and public address & voice evacuation in sports hall, football field, playground, park and outdoor live performance applications.


Feature:

Commercial full weatherproof horn speaker with 100V/70V transformer

Application of outdoor sound applications of sports hall, football field, playground, park

Superior sound quality of very clear voice restoration

Two way 10” woofer with 1.5” tweeter

RMS 200 Watt 70V/100V transformer with 8Ω power tapping

Power tappings of 200W, 100W, 50W, 25W & 8Ω bypass

Waterproof outdoor use level of IP66

Outdoor weather safe connection with a recessed terminal block and waterproof seal cover

Fiber-reinforced plastic and metal enclosure with metal grill in black

U-Shaped wall mounting stainless bracket is supplied

Multiple combination of outdoor line array loudspeakers


Specification:

Model

HSK-110AT

Description

10” 2-Way Coaxial All Weather Loudspeaker

Power Output

200W RMS and 400W Max.

Impedance

8 Ohms

Power Tapping

200W, 100W, 50W, 25W & 8Ω bypass

Frequency Response

70-20K Hz

SPL (@1W/m)

94dB and Max 118dB

Speaker Unit

Waterproof 10”woofer +1.5” tweeter

IP Rate

IP66

Dispersion Angle

Horizontal: 120°, Vertical: 120°

Operation Temp

-22℃ to +55℃

Dimension

348 x 355 x 385 mm

Material

U-Shaped Fiber-reinforced plastic and metal enclosure with metal grill in black

Weight

14.27kg
