30/05/2023

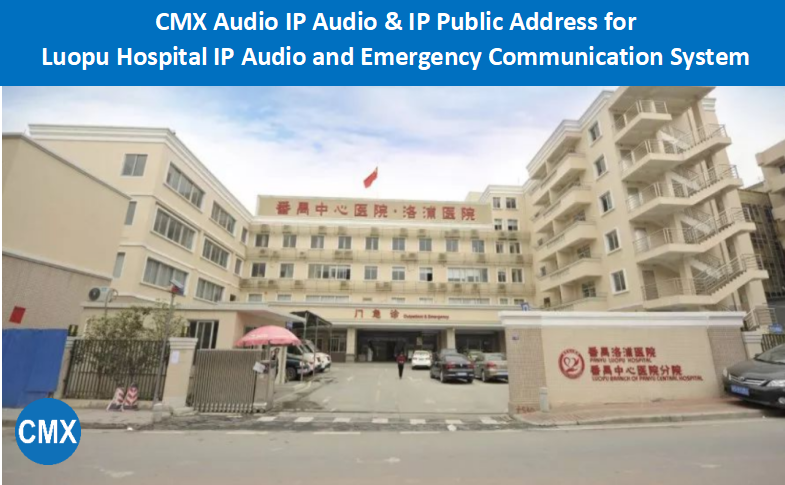

Luopu Hospital IP Audio and Emergency Communication System
DI-9700 Digital public address system is designed for hospital IP audio and emergency communication system. Remote volume control, remote status monitoring and remote trouble shoot are advatages of IP AUDIO for hospital public address system, where background music, live speech, pre-recorded announcement and emergency announcement are possible for single speaker, single zone, group or all zones.
Luopu Hospital IP Audio and Emergency Communication System
Features of Hospital IP PA System DI-9700 IP Network PA System
- Hospital Background Music System: Multiple IP based power amplifier DI-97500 & IP POE ceiling speaker DI-97501 and outdoor IP POE horn speaker DI-97603 these IP equipments where installed in patient room, domitory, library, playground etc, through which to broadcast music, live speech, pre-recorded messages, emergency Alert/EVAC/Clear messages to individual zones, selected zones and all zones according to pre-settings. IP audio matrix support multiple audio sources played simultaneouly to multiple zones without any interferences.
- Hospital Zone Paging System: Various IP based paging system to patient room, security room, parking, domitory, office, library, playground is possible through the IP based paging microphone DI-9700TM. Multiple paging modes are available of this DI-9700 IP public address system, general paging, server center paging, live speech via DI-9700TM, intercom paging, talkback features (only two way supportive models), 2.4G wireless teaching system (multiple room without interference), pre-recorded announcement and emergency emergency Alert/EVAC/Clear annoucement. Single zone, selected zone, group zone, all zones flexible configuration are possible, for example, DI-9700 ip amplifier, you can program it as ID 001-event zone, you also can program it into group 002 as alarm zone, so it could be auto broadcasting for sports meeting and also all zone auto emergency automatically alarm.
- Auto Emergency Annoucement System: IP based voice alarm system, auto pre-recorded messages to domitory and classroom is possible via the management software or pre-setting. In case of fire, disaster or accident, automatically emergency annoucement system shall offer direct heardable help for listener wherever they are from to far away the danger or quickly evacuate from the dangers. Thus multiple control input and control output to interface fire alarm system, door access system, BIS, PAS, CCTV, car parking system, hospital patient system, two way intercom system and visualized AV display systems to ensure people get first aid and in-time information to protect themselves. Through the DI-9700FA control input output panel, pre-set zone for alert message, EVAC message, clear message, restore, pre-recorded messages are stored in the PC server data base, so customized localized languages are available pre-recorded like French, Italian, Germany, Japanes, Thai and Arabic messages. Once the fire alarm interface controller receive control input or fire alarm input, it will automatically trigger the pre-setting pre-recorded messages to programmed zones output at maximum loudness.
- All in One Hospital PA System: Scheduled annoucement or ring bell is automatically broadcasted to pre-setting zones. The School IP based PA system intergrated pre-amplifier, power amplifier, signal splitter, speaker selector, monitor panel, audio matrix, paging call station, paging selector, audio matrix controller, program timmer all into one solution via IP Ethernet, which included all analog public address system, but more capacity and easier expandability, less cable wiring, remote trouble shoot, less equipments, less budget, less power comsumption advantages.
- Huge Zone Capacity: Each School IP PA system usually around 600 zones capacity, which includes IP audio server software, IP paging call station DI-9700TM, IP network amplifier (60W-500W), IP wall mount amplifier (20W+20W) or IP network speakers. While for big scaled public address system, up to 6,000 zones capacity is also available when power consumption, fire alarm zone, network layer, software program after take into consideration.
- Minimum Easy Kit: School IP audio server softwareDI-9700SF, IP paging call station DI-9700TM, IP network amplifier (60W-500W) and analog speaker and existing LAN switch are minimum 5 unique products to set up one flexible zone from 3 to 200 zones IP public addres system.
- Easy Zone Expansion:
- Compatible with Existing Analog Hospital PA System:
- Two Way Intercom & Talkback System:
- 2.4G Wireless Teaching System
- IP Audio and Analog Audio Backup System
- Remote Trouble Shoot and Configuration
- Remote Control Capacity
- System Status Monitoring
- Minimum Cable Layout
- SDK Package for Third Party System Integration
- Visualized Map Control Software
| Hospital IP Audio System BOQ | ||
| IP Audio Server | DI-9700A | 1 Set |
| DVD/CD Player | PA-100DM | 1 Unit |
| Pre-Amplifier | PA-100PR | 1 Unit |
| IP Audio Encoder | DI-9700IN | 1 Unit |
| Monitor Speaker | DI-9723 | 1 Unit |
| IP Remote Microphone | DI-9700TM | 1 Unit |
| IP Fire Alarm Controller | DI-9700FA | 1 Unit |
| Power Sequencer | PA-100ST | 1 Unit |
| IP Amplifier | DI-97120 | 2 Unit |
| Ceiling Speaker | CSK-56W | 14 PCS |
| Stereo Amplifier | CS-2200 | 1 Unit |
| Wireless Microphone | WM-UF400 | 1 Unit |
| Mixer | MCX8U | 1 Unit |
| Power Sequencer | PA-108PS | 1 Unit |
| Hi-Fi Ceiling Speaker | CSK-814HR | 4 PCS |
