IP Audio Matrix System for 8 Zone IP Audio System IP-604NA
IP Audio Matrix System from CMX AUDIO features of multiple room multiple music system, audio over IP transmission, remote software management, unlimited zone & group paging system.
IP Audio Matrix system with IP-604NA 4 CH IP Audio Decoder Features:
- Remote software for programming and monitoring and operation
- Multiple room & multiple music system as IP audio matrix system
- Unlimited paging console for live speech, pre-recorded announcement and voice alarm
- Unlimited paging console for two way intercom system
- Unlimited paging console system connection quantity
- Unlimited paging console could be connected to anywhere of the IP network
- The IP audio matrix system could be built-up by using existing LAN/WAN/Ethernet network
- 4 CH IP decoder to decode IP audio into universal amplifier, each system capacity up to 6,000 zones
- Each zone or each room of different music simultaneously without any interference
- Future system expansion add more zone at minimum cost
- Remote technical support and trouble shoot online
- Multiple buildings IP audio system integrated into one paging & PA system
- Capacity to upgrade the existing analog PA system into IP PA system
- More than 10Kms communication distance where analog PA system can’t be used

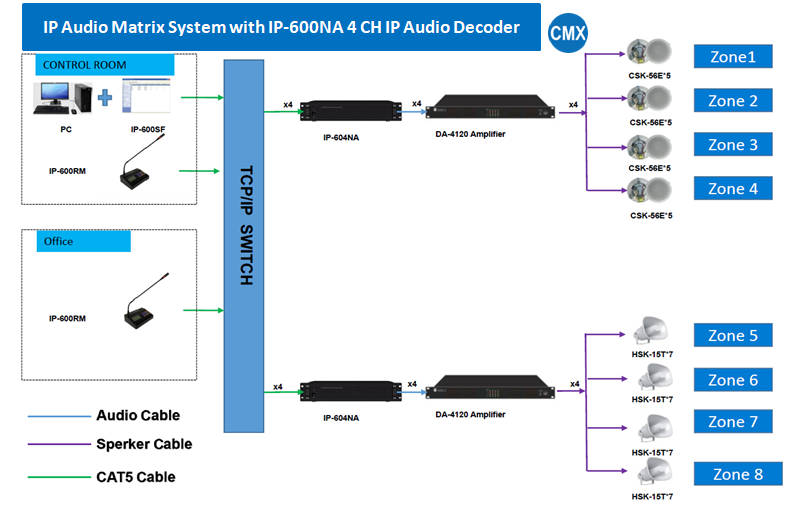

IP Audio Matrix System for 8 Zone IP Audio System BOQ:
- IP-600SF, IP Network Audio Software×1
- IP-600RM, IP Paging Console×2
- IP-604NA, 4 CH IP Decoder×2
- DA-4240, 4 Channel Power Amplifier×2
- CSK-56E, 6W Ceiling Speaker×20
- HSK-15T, 15W Outdoor Horn Speaker×28
