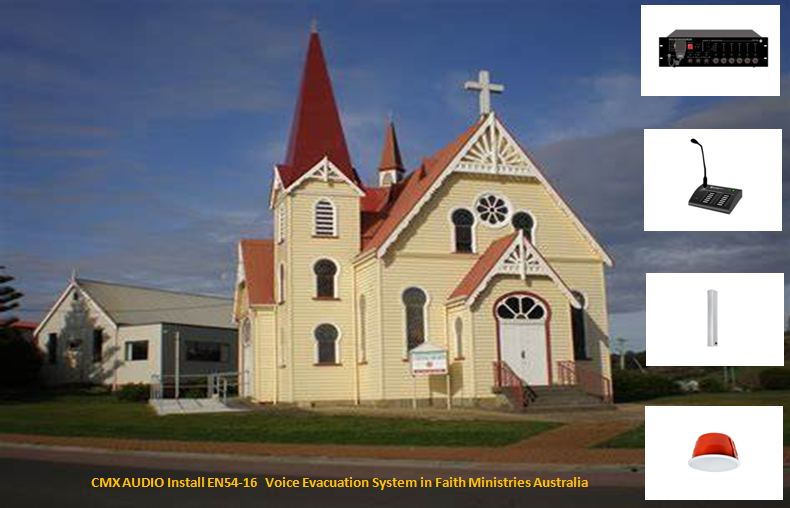

Digital Voice Alarm System EVAC-500 EN54-16 Installed in Forward in Faith Ministries Australia
CMX AUDIO R & D and manufacture the houses of worship sound system like church sound system where background music system, paging system and emergency evacuation system shall be included. The EVAC-500 EN54-16 certified voice evacuation system is featured of simple and easy use, compact 6 zone solutions, plus the EN54-24 certified loudspeakers to set up a basic digital public address & voice evacuation system for church sound system solutions.
1) Include all public address system functions
2) Integration with voice alarm system and fire alarm system
3) Full back up system from software, amplifier, speaker AB loop and microphone line
4) Remote microphone with paging system
5) Free management & program software
6) Expansion up to 120 zones without extra equipment.
7) Support live speech, pre-recorded message announcement
8) Emergency voice alert & evacuation system
9) Compliance with European voice alarm EN54-16 standards
10) with EN54-24 column speaker and EN54-24 Ceiling speakers
11) Integration of public address, BGM, paging system and voice alarm system all in one solution
12) With remote software for monitoring and program
13) With fireman microphone of highest priority for emergency announcement.
6 Zone Public Address & Voice Evacuation System for Church Sound System Solutions BOQ:
- 6 Zone voice alarm controller with 500W Amp, EVAC-500×1
- 6 Zone remote microphone, EVAC-500RM×1
- Wireless Microphone, WM-U200C×1
- Audio Source Player, IRM200×1
- Standby Amplifier 500W, DA-500×1 (Optional)
- Battery Charger, EVAC-500BC×1 (Optional)
- Zone 1, EN54-24 Horn Speaker, HSK-30TEN×2
- Zone 2, EN54-24 Projection Speaker, PJSK-20ASEN×4
- Zone 3, EN54-24 Ceiling Speaker, FCS-66MEN×12
- Zone 4, EN54-24 Wall Speaker, FWS-56MEN×12
- Zone 5, PA Wall Speaker, WSK-530QT×2
- Zone 6, PA Wall Speaker, WSK-430H×2
