Bank IP Audio Solutions by IP Network Audio Encoders & IP Audio Decoders
IP Network Audio Encoders & IP Audio Decoders for Bank IP Audio Solutions
Description:
The IP Network Audio Encoder DI-9710 is used to encode various analog audio sources media player & microphone over IP audio streaming, it is also popular to be used one pair IP encoder and IP decoder to set up easy IP network audio system which is compatible with any analog sound system. The IP audio encoder is also ideal to be used for upgrade analog PA system into IP based PA system without changing existing analog amplifier & speakers. The IP network audio system DI-9700 support more than 6,000 units of IP audio encoders, whose audio output over IP could be programmed to single zone, multiple zones or all zones output simultaneously, while the IP audio encoders is compatible with full range of DI-9700 system, which includes all IP decoders, IP amplifiers and IP loudspeakers. The IP audio encoder could be built-up over existing LAN/WAN/Internet network, so non-dedicated network is needed, which is also very convenient for several phase project just to add less equipment of IP encoder and IP decoder to expand the zone capacity. A remote server software could be centralized or decentralized control all IP encoders and IP amplifiers, so remote volume control, remote program setting, remote schedule announcement is possible via server software. The IP encoder is designed with One line input to encode analog MP3/CD/FM radio over IP audio streaming and one microphone input to encode dynamic microphone or wireless microphone over IP audio streaming, one line output to external amplifier or mixer use, control input and control output to integrate with CCTV, door access or fire alarm system etc third party system integration. Silent, echo, microphone and line attenuation on front panel could be used for loudness control. The IP audio encoder is designed of wide range AC 100-240V power supply to support universal market applications.
Feature:
IP network wall mount audio encoder
Encode various analog audio sources media player & microphone over IP audio streaming
Ideal for upgrade analog PA system into IP based PA system without changing existing analog amplifier & speakers
Huge system capacity of 6,000 units IP audio encoders
Via software to program the IP audio encoder’s audio output over IP to single zone, multiple zones or all zones
Simple IP network audio system by IP encoder & IP decoder to compatible with any analog system
Compatible with DI-9700 full range all IP decoder, IP amplifiers & IP speakers
Minimum cable connection by using existing network framework
Non-dedicated network audio system solution over LAN/WAN or Internet
Economy network PA system for multiple room and multiple program applications
Ideal for school, office, restaurant and fitness center IP PA sound system
One line input, one microphone input, one line output, control input and control output
Remote volume control and program via remote server software
Silent, echo, microphone and line attenuation on front panel could be used for loudness control
Wide range AC 100-240V power supply to support universal market applications

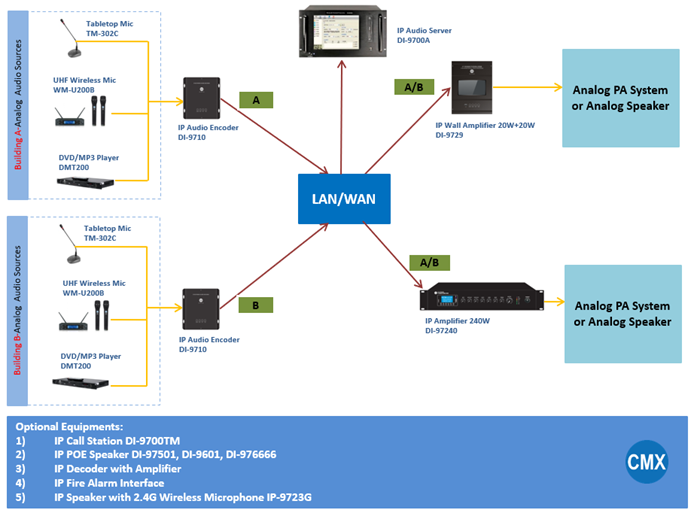

IP Network Audio Encoder & IP Audio Decoder for Bank IP Audio Solutions Connection Diagrams:
