UHD HDMI Matrix Switcher VS-H808
UHD HDMI Matrix Switcher
VS-H808
Description

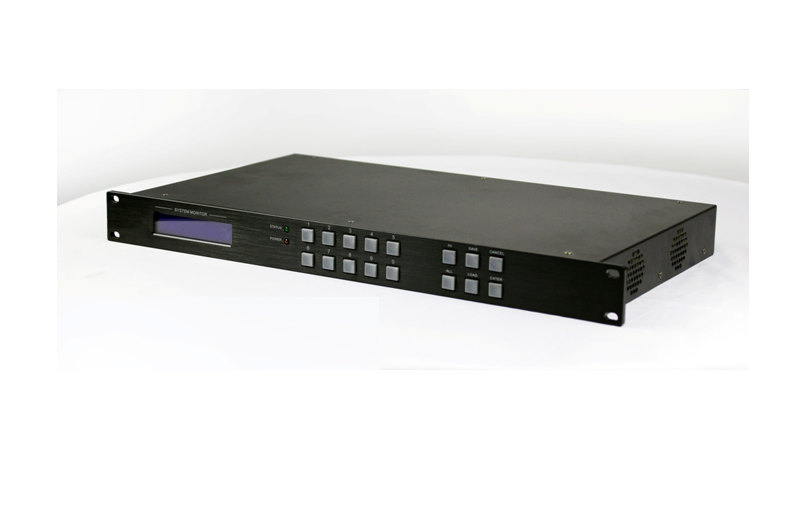

The VS-H808 is a high performance UHD HDMI cross matrix switcher, which can cross-switch
up to 4K*2K resolution HDMI signal between the 8 inputs and the 8 outputs, either with or
without HDCP. It can be operated through versatile ways: RS-232, LAN, front panel buttons, and
third party control systems. Its high performance and easy-to-manage property make allow itto
be applied in both industrial and household projects, such as Broadcast & TV Stations, Meeting
Halls, Big Display Projects, Hospitals, Schools, Home Theaters, etc.
Features
■ 8 HDMI inputs, 8 HDMI outputs
■ Support 3GHz video formats up to 4k × 2k @24 Hz/25 Hz/30 Hz, and all mandatory HDMI 3D
TV formats
■ HDCP and DVI compliant
■ Support HDMI 1.4
■ Supports 10/100/1000Mbps Ethernet network connection
■ Supports Baudrates up to 115200bps
■ Lossless and delay-less HDMI cross-switching
■ Versatile Control Methods: Panel Buttons with LCD, RS232, TCP/IP control with RJ45 interface
■ Support Mode Saving function: can save and recall 32 different scenes
■ Support default HDMI EDID and reading EDID from display devices
■ Input HDMI cable length up to 30 meters
■ Standard rack-mounting installation design
■ Support iOS App control
Specifications
Model VS-H808
Input type：HDMI
Output type：HDMI
Video Protocol：HDMI 1.4, HDCP 1.3, compliant to DVI1.0
Maximum resolution：Up to 4kx2k at 24 Hz/25Hz/30Hz
HDMI interface：Type A, 19 pin, female
Serial Interface：RS-232 IN, DB9, Female; RS-232 OUT, DB9, Male
Input cable length：Adaptive equalizer for cable lengths up to 20 meters
Output cable length：≤ 15m
RJ45 control protocol：TCP/IP
Ethernet rate Self-adaptive：10M/100M
Storage environment Temperature: -20℃ ~ +70℃, humidity: 10%~90%
Work environment Temperature: -20℃ ~ +70℃, humidity: 10%~90%
Power supply：AC 110~240V
Maximum power dissipation：22W
