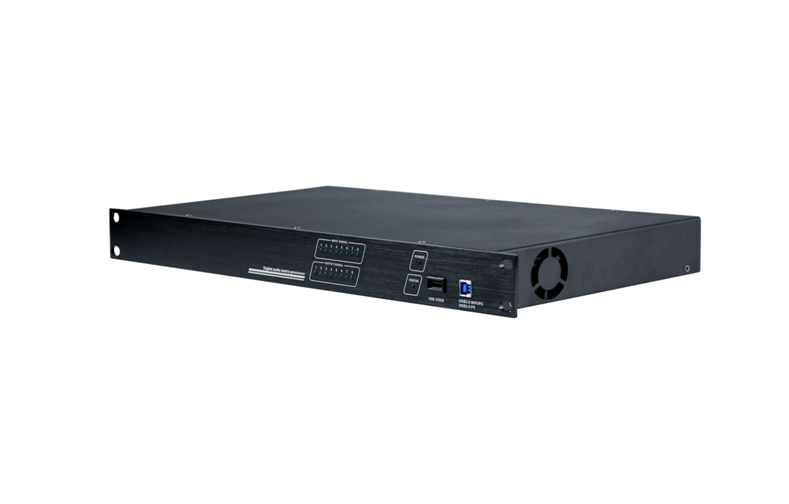

CS-P808A Conference Processor with 8 inputs & 8 outputs & DSP

Conference Processor with 8 inputs & 8 outputs & DSP
Chi tiết sản phẩm

CS-P808A

Conference Processor with 8 inputs & 8 outputs & DSP



CS-P808Ais a conference processor with 8 inputs and 8 outputs, with DSP functions

of built-in feedback suppression, automatic mixing, matrix mixer, equalizer, crossover,

compressor ec. CS-P808A-D4 support Dante Network audio, suitable for various

occasions in the PA project.



Applications

Meeting Room

Medium/Big conference room

Courtrooms

Auditoriums

Multi-purpose spaces



Features

▲8 analog inputs and 8 analog outputs, support selecting microphone and line

▲ With 48V switch per input channel

▲Support Dante input and output port

▲GPIO Extensible Function

▲Feedback suppressor in per input channel

▲AUTO-MIX and MATRIC-MIX

▲31 PEQS per input and 10 PEQS per output

▲USB free driver connect, RS232/RS485 connector for center control



Technical parameters

DSP Chip

Signal Processor 32-bit fixed/floating-point DSP 300MHz

Audio Latency < 1ms

A/D and D/A Converters 24-bit

Sample Rate 48KHz

ANALOG AUDIO INPUTS AND OUTPUTS

Input Channels 8 balanced. Mic/line level

Connectors 3.81 mm Phoenix Contact, 12-pin

Input Impedance 11.5KΩ

Maximum Input Level 12dBu/Line, -9dBu/Mic

Phantom Power +48VDC, 10mA, selectable per input

Output Channels 8 balanced, line level

Output Impedance 150Ω

AUDIO PERFORMANCE SPECIFICATIONS

Frequency 20Hz-20kHz(+-0.5dB)/Line

3 www.cmxaudio.com

Response 20Hz-20kHz(+-1.5dB)/Mic

THD+N -90dB(@12dBu,1kHz,A-wt)/Line

-86dB(@-7dBu,1kHz,A-wt)/Mic

SNR S/N ratio: >108dB, 1 kHz, A-weighted(digital),

>103dB, 1 kHz, A-weighted (analog)

COMMUNITICATION PORTS AND INDICATORS

USB Micro-B type, free driver

TCP/IP RJ-45

RS232 Phoenix seat

RS485 Phoenix seat

GPIO Phoenix seat, Machine Archive (customizable)

LCD display & Button LCD2402

LED Indicators Power, Link, +48V, Input and Output Audio signal

ELECTRICAL AND PHYSICAL

Voltage Range AC100V-240V 50/60 Hz

Dimension 44mmx483mmx210mm

Net Weight 2.8kg

Working Temperature -20℃--80℃
