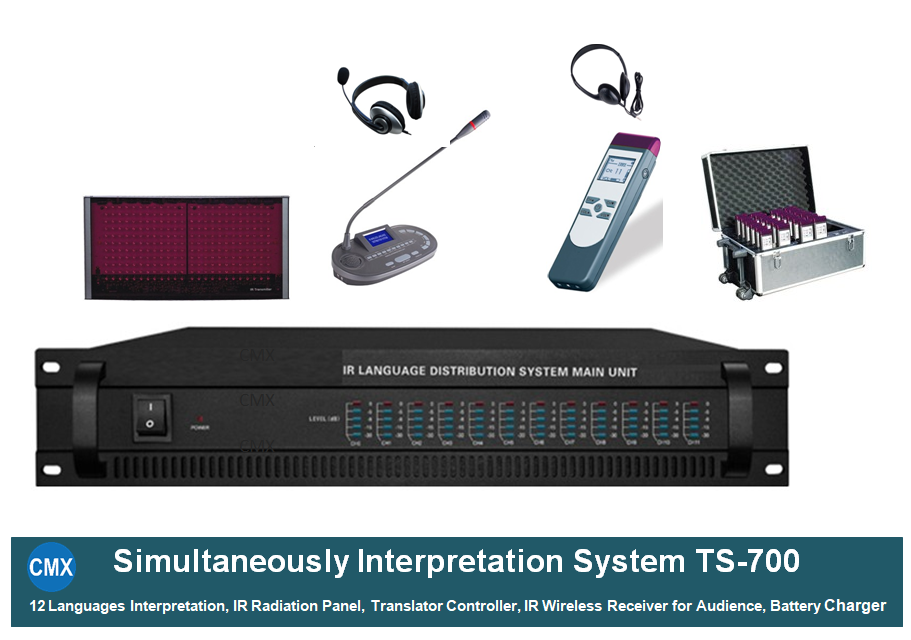

TS-700 12 Channel Language Distribution and Simultaneous Interpretation System
12 Channel Language Distribution and Simultaneous Interpretation System
Features:
-
Head of cmx language distribution and simultaneous interpretation system.
-
12 languages (1 ground and 11 international) simultaneous translation and distribution system.
-
Ideal for international summit meeting, religious meeting and hotel rental use.
-
This transmitter will receive 12 different voice inputs then generate the infrared wireless signal to be radiated by the cmx IR radiator TS-701, while the attendant with IR receiver TS-703 could receive different translated language by selecting different receiving channels.
-
Stable strong signal for accurate cmx wireless infrared transmission system to prevent interference.
-
Suitable for indoor and outdoor moderate and big conference hall use.
-
Automatic output level control technology (ALC).
-
No interference from lighting system and other wireless communication system.
-
Advanced daisy chain connection to save cable and layout cost.
-
Elegant and ergonomic design to integrate with the architecture application.
-
12 channel interpretation inputs and outputs.
-
Each channel with REC output for recording system like cmx DVR or recorder.
-
Test function to ensure the well installation.
-
Separate 12 channel output level display for visual monitor use.
Specifications:
Model |
TS-700 |
Description |
IR Wireless 12 Channel Transmitter |
Modulation Way |
FM modulation |
Frequency Synthesis |
Digital PLL |
Frequency Band |
1.7-4.0MHz |
Frequency Response |
100-14KHz |
Frequency Stability |
100ppm |
Pre-emphasis |
75μSec. |
Distortion |
<0.5% |
Channel Separation |
>70dB |
RF Output Level |
700mV |
RF Output Impedance |
50Ω |
Input Impedance |
18KΩ |
Max Input Level |
2V |
AGC Range |
30dB |
S/N Ratio |
>75dB |
Power Consumption |
40W |
Power Supply |
AC220V or 115V, 50-60Hz |
Dimension |
485(W)×355(D)×88(H)mm |
Weight |
7.0kg |
