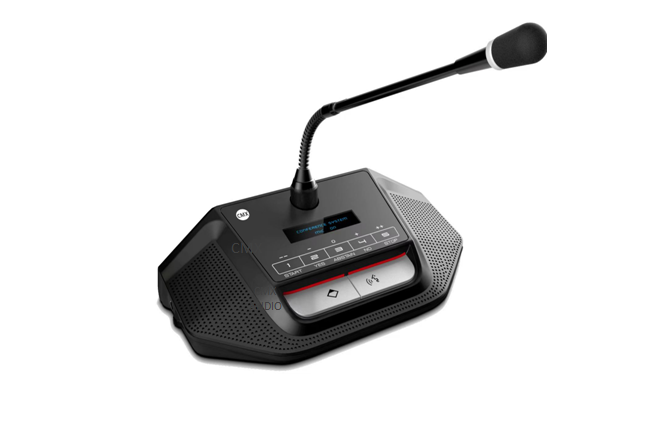

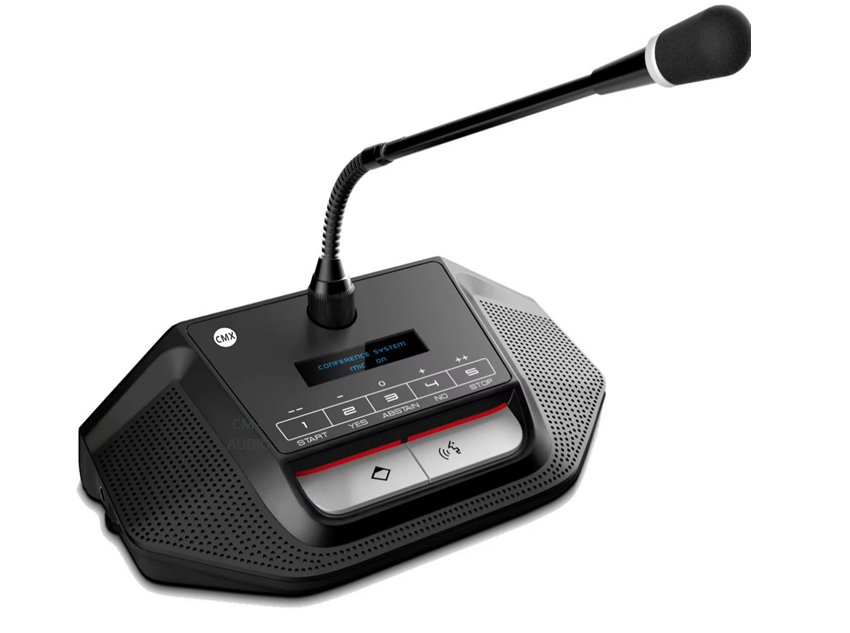

5G-CU 5G Wi-Fi Wireless Conference Chairman Unit

5G-CU is 5G Wi-fi wireless conference system chariman unit which system capacity of 240 units, with discussion/voting/auto video tracking functions, built-in monitor loudspeaker, with earphone input and round indicator, with priority over delegate units.
Chi tiết sản phẩm

5G Wi-Fi Wireless Conference Chairman Unit

5G-CU



Features:

Wi-Fi transmission technology; strict digitalized protection to ensure the conference’s confidentiality, and to avoid eavesdropping and malicious interference.

Capacitive cardioid directional microphone with dual color indicating ring: red for speak and flashing green for insufficient power;

Built with one 3.5mm stereo earphone jacket; support volume adjustment;

Built-in loudspeakers; support volume adjustment;

OLED display with backlight, which can show the information of microphone ON/OFF, ID settings, etc.

non-compressed audio transmission technology; 48K sampling rate; 20Hz ~ 20KHz bandwidth; perfect audio quality;

Working with high definition camera auto-tracking mainframe and HD IR auto tracking camera to realize camera auto-tracking function;

Support managing the microphones with PC software; support FIFO, APPLY, and NORMAL modes, etc.

The chairman unit has the priority to turn off the delegate units;

Wi-Fi Encryption Conference Speech Voting chairman unit has the function of initiating check-in and closing check-in;

Speech by the Wi-Fi Encryption Conference Chairman Unit can initiate a three-button vote (Approve / Abstain / Reject) and end the voting; and support to show voting results;

The OLED display can show the microphone status, check-in results, support in Chinese and English language display;

Built-in rechargeable lithium battery, support 24 hours continuous speaking or 26 hours standby time;

Special purpose 5-pin high density aviation interface;

Professional conference microphone with screw cap interface for freely plug;

Built-in 2 units 3W hi-fi monitor speakers;

Feedback suppressor built-in: when the microphone is on, the monitor speaker will be off to avoid feedback;

Capacitive touch button, no mechanical button sound, long life keys.



Specifications:

Model

5G-CU

Description

5G Wi-Fi Wireless Conference Chairman Unit

Earphone Jacket

3.5mm stereo earphone jacket, 2×15mW, 32 Ohm

Frequency Response

20Hz20KHz

Wireless Frequency Range

4.900-5.850GHz, IEEE Draft 2.0 802.11n

Radiation Power

15dBm

Wireless Gain

2dBi

Batter Output Voltage

7.2V

Battery Capacity

3200mAH

Continuous Speaking Time

24 Hours

Max. Standby Time

48 hours

Color

Black, ABS

Max. Power Consumption

2.6W

Dimension

Φ=165 H=64 (mm)
