Mixer Amplifier with USB/SD & DAB+ & Bluetooth EA-60ADAB, EA-120ADAB, EA-240ADAB, EA-350ADAB, EA-500ADAB (DAB+ option)
Mixer Amplifier with USB/SD & DAB+ & Bluetooth,
EA-60ADAB, EA-120ADAB, EA-240ADAB, EA-350ADAB, EA-500ADAB (DAB+ option)

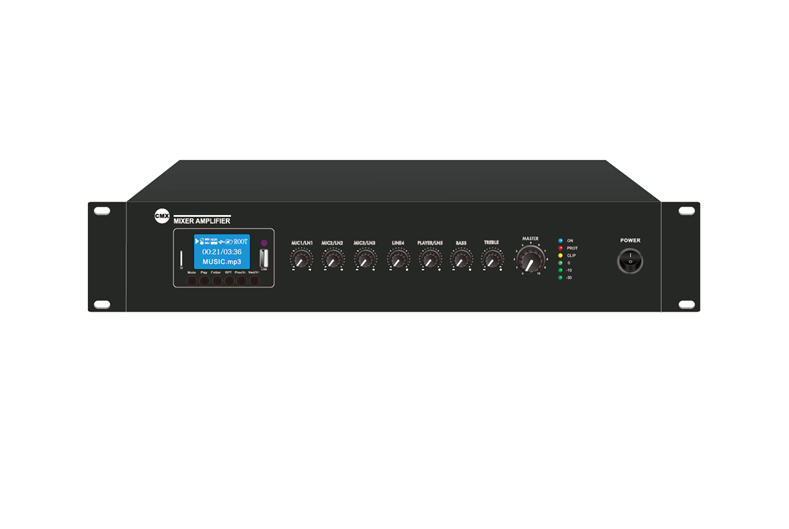

The EA-120A series mixer amplifier is 19” rack mount public address & commercial mixer amplifier, which is designed with media player, pre-amplifier and power amplifier all in one. The built-in media player includes USB/SD, FM & Bluetooth for various background music system applications. Its rated power from 60W to 120W, 240W, 350W & 500W, which could load universal passive 100V/70V & 4-16Ω loudspeakers. The EA-A series mixer amplifier could feed into 3 microphone and 2 external audio sources, with one RCA line output to external amplifier for higher application use. The Mic1 input with priority over other inputs and with +48V phantom power for condenser microphone power supply. With complete protection for severe applications.
Features:
- 19” rack mount public address amplifier with DAB+
- Built-in medial player with USB/SD, FM/DAB+ & Bluetooth
- Rate power output at 60W, 120W, 240W, 350W to 500W
- Speaker output of 100V or 70V & 4-16Ω
- 3 x Mic/line inputs, 2 x RCA line inputs, and 1 x RCA line output
- XLR input with switchable +48V phantom power
- With short-circuit, clip, overload and high temp protection
- 230V AC power supply
Specification:
|
Model |
EA-60ADAB |
EA-120ADAB |
EA-240ADAB |
EA-350ADAB |
EA-500ADAB |
|
Description |
Mixer Amplifier with USB/SD & DAB+ & Bluetooth |
||||
|
Rated Power Output |
60W |
120W |
240W |
350W |
500W |
|
Speaker Outputs |
100V or 70V & 4-16Ω |
||||
|
Connector |
Mic1 input by balanced XLR with +48V phantom power Input2-3 inputs Mic/Line switchable unbalanced 6.3mm jack Line1-2 inputs by RCA, Line output by RCA |
||||
|
Input |
MIC1-3: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA |
||||
|
Line Out |
0.775(0dBV) |
||||
|
Frequency Response |
60Hz-15kHz(±3dB) |
||||
|
S/N Ratio |
Line ≥ 85dB, Mic≥ 72dB |
||||
|
THD |
Less than 0.5% |
||||
|
Protection |
short-circuit, clip, overload and high temp protection |
||||
|
Power Consumption |
80W |
150W |
310W |
450W |
650W |
|
Power Supply |
230V AC; 50-60Hz |
||||
|
Dimension |
484×335×88mm |
||||
|
Weight |
6.1kg |
6.6kg |
9.6kg |
11.9kg |
13.7kg |
