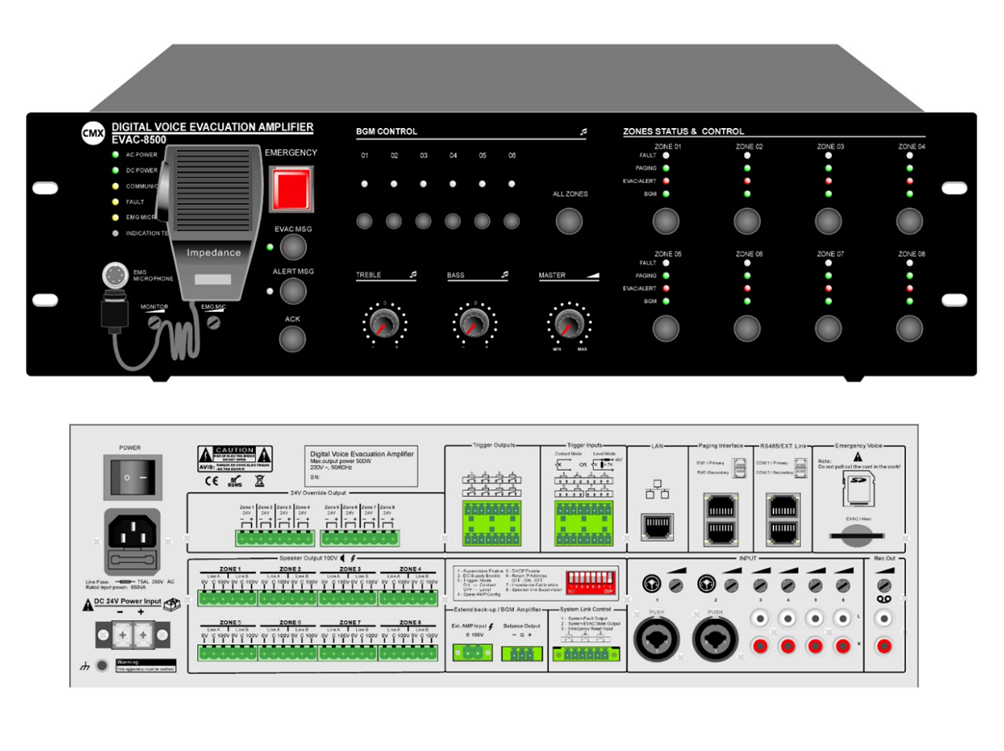

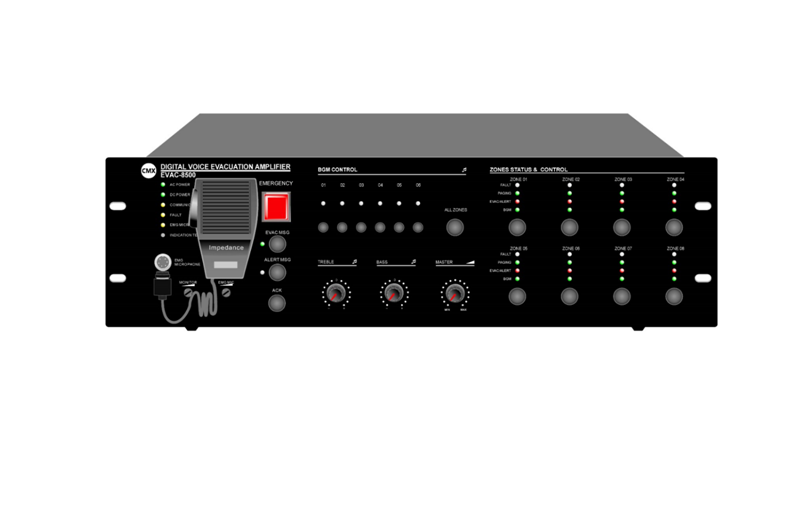

EN54-16 8 Zone Voice Alarm Controller EVAC-8500
Description:
The CMX EVAC-8500 8 zone voice alarm controller is EN54-16 certified public address & voice evacuation system. The all in one voice alarm & evacuation controller built-in remote PC software, zone paging controller, all main signal line monitoring, amplifier changeover, speaker line supervision, power supply monitoring and power amplifier, voice recorder, SD card, emergency microphone and fire alarm interface. The voice alarm controller is innovated with DSP (digital signal processor) to ensure its hi-fi audio performance and superior signal processing in case of commercial announcement and emergency evacuation. Each controller built-in 8 zone speaker outputs, rated power output at 500W. The 8 zone voice alarm controller shall be pre-set through the supplied software over microphone number, zone number, zone loading, speaker monitoring, fire alarm mode, alert/EVAC message zone output, AC/DC etc, then synchronized the setting to master controller and router. The voice alarm evacuation system is strictly follow the Construction products Regulation(EU)No 305/2011: EN54-16:2008 Voice Alarm Control and Indicating Equipment.
Feature:
- EN54-16 certification No. I/ISEETC. 000620190305.
- Digital voice alarm evacuation system all in one controller.
- Integration of 8 zone voice alarm controller, remote PC software, zone paging controller, all main signal line monitoring, amplifier changeover, speaker line supervision, power supply monitoring and power amplifier, voice recorder, SD card, emergency microphone and fire alarm interface.
- Auto broadcasting EVAC and alert 256 voice messages to pre-set zones.
- Customized alert, evacuation & business message stored at SD card.
- AB speaker line surveillance to avoid any speaker line failure.
- Back-up power amplifier management.
- Up to 120 zones by cascaded more router EVAC-8500RT.
- Support 32 units of remote paging microphone EVAC-500RM.
- Support external connection of fireman microphone EVAC-500FM.
- Support of touch screen microphone EVAC-500TM.
- Redundant network cabling backup through CAT6 cable loop connection.
- 8 supervised control inputs & 8 control outputs, 1 fault, 1 reset & 1 EVAC relay outs.
- Logs and fault events auto recording.
Specification:
Model |
EVAC-8500 |
Description |
8 Zone Voice Alarm Controller |
Rated Power Output |
500W |
Fireman Microphone |
5Mv, 600Ω |
Line 1-2 Inputs |
385mV, 10kΩ balanced Combo XLR |
Line 3-6 Inputs |
350mV, 10kΩ, RCA |
Frequency Response |
80Hz~20kHz |
THD |
<1% at RMS,1KHz |
S/N Ratio |
>70dB |
Speaker Output |
100V AB 8 zone speaker outputs |
REC Output |
200mV |
Control Input & Output |
8 control inputs: Max 3.3V (voltage mode) or 0V closed contact; 8 control outputs: 0V closed contact; 1 fault, 1 reset & 1 EVAC relay outs |
Voice Message |
MP3 or WMA format, two separate players of SD card, programmable voice message up to 256, 10 years valid |
Event Record |
HEX format, Hard Flash memory, events up to 1000 records, 10 years valid |
Operation Temp |
Operation Temp: +5℃ ~ +40℃; Store Temp: -20℃ ~ +70℃; Humidity: <95% |
Power Consumption |
650W |
Power Supply |
AC230V or 115V & 24V DC inputs, 50-60HZ |
AC Fuse |
250V/6.3A, slow type and restorable fuse |
Dimension |
484×132×449mm |
Weight |
23kg |
