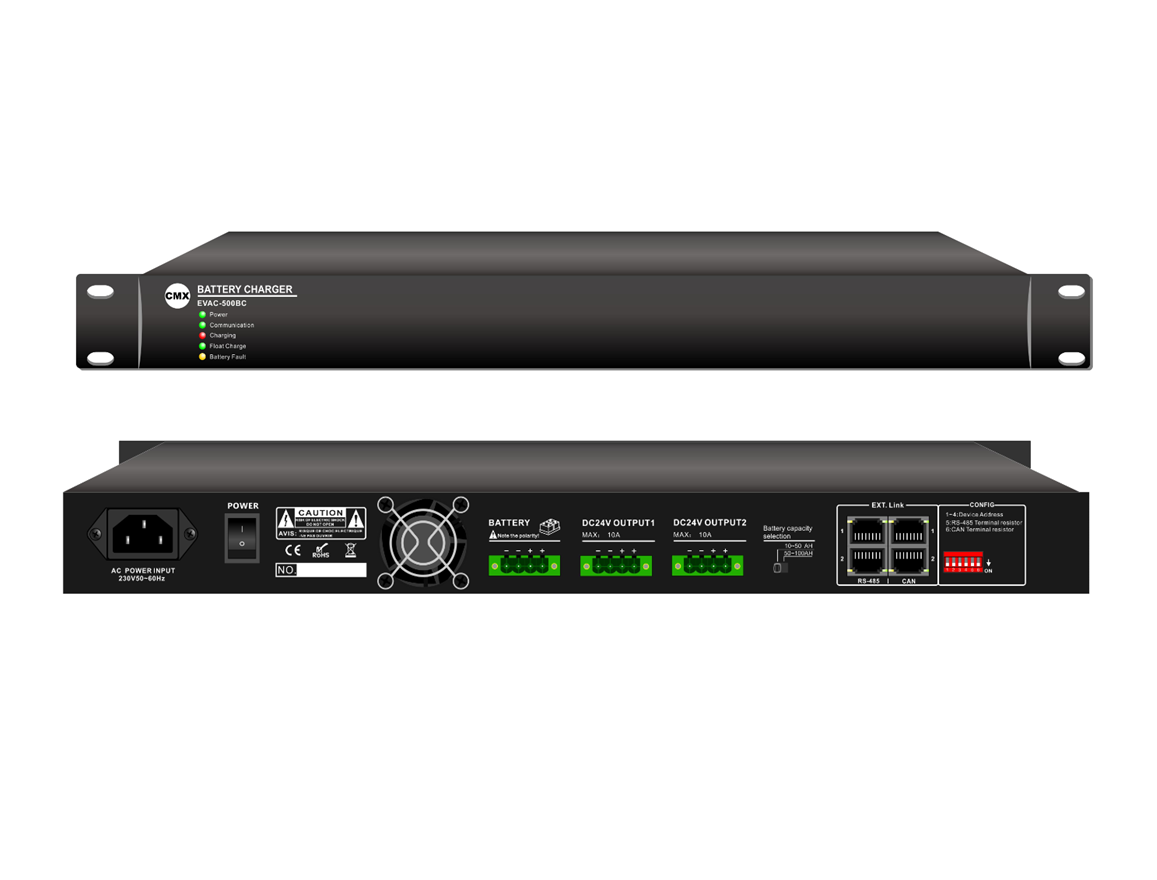

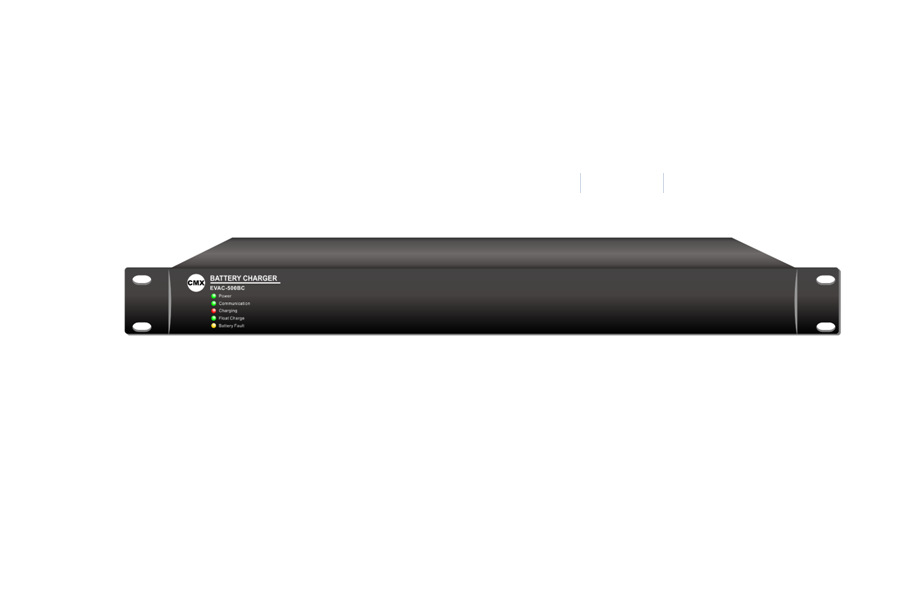

EVAC-500BC 24V DC Battery Charger and Power Supply
Features:
Auto switch into DC power supply when AC power fails
Select auto/manual charging mode automatically
Storage battery failure, over voltage, over-heat and over time charging detection
Automatic temperature control fan and over heat protection
Built-in battery charge management and monitoring circuit
When connected to AC power, DC24V will be off automatically
Storage battery support two or one DC 24V lead-acid battery
Selection charging mode automatically to ensure safety charging and service life
Pre-charge-constant current-trickle charge
High charging efficiency and restore efficiency
Support multiple volumetric battery≤200Ah
With ID pre-set its zone number up to 200 units
With RS485 to communicate with third party system
Specifications:
|
Model |
EVAC-500BC |
|
Description |
24V DC Battery Charger and Power Supply |
|
Power Supply |
220V-240V, 50/60Hz |
|
AC Maximum Current |
2A |
|
AC Fuse |
250V/3.15A, low speed type |
|
DC Power Output |
24V DC battery |
|
DC Maximum Current |
10A+10A |
|
Maximum Charging Current |
10A adjustable |
|
Connector |
Two battery inputs, two 24V DC outputs, two RS485 and two CAN inputs. Battery capacity selector and ID selector. |
|
Cooling System |
Speed controlled cooling fan |
|
Operation Temp |
+5℃ to +45℃ |
|
Operation Humidity |
<95% |
|
Dimension(mm) |
484×390×44 |
|
Weight |
4.65kg |
