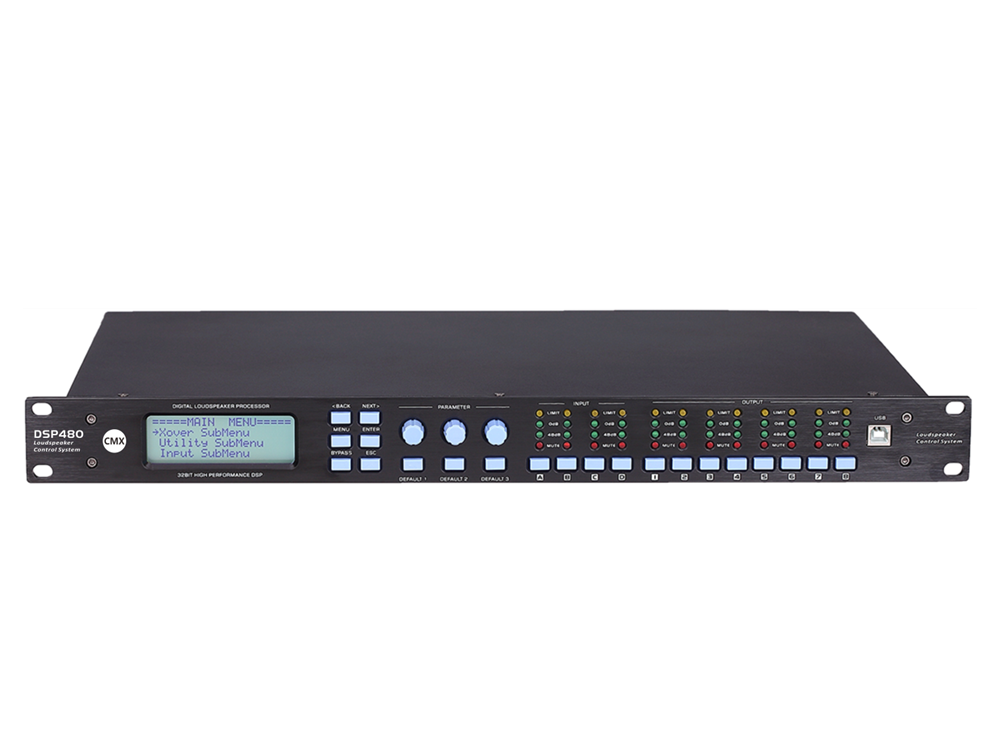

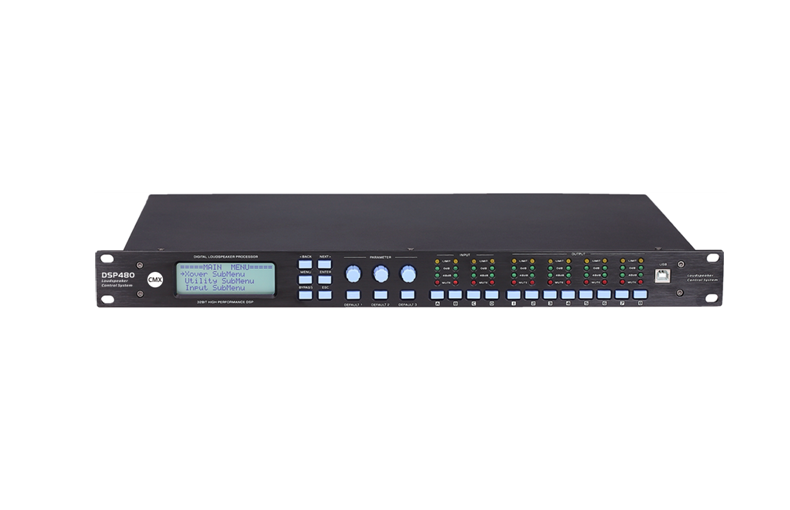

DSP Processor DSP240 DSP360 DSP480
Feature:
- Full digital audio processor for extreme high quality sound performance.
- Applications for auditoriums, houses of worship, theaters, convention centers, stadium and stage monitoring system.
- 4 inputs and 8 outputs with audio matrix system
- 96k Hz sampling rate 24 bit high performance AD/DA converters.
- 40 bit floating point super efficiency DSP chip.
- 8 bands parametric equalization per input channel
- 9 bands parametric equalization per output channel
- Each band can be switched to bell, Hi/Lo-Shelving, HP/LP, Band Pass, Notch and All Pass filters.
- Crossover filters with slopes from 12dB/Octave up to 48dB/Octave including Butterworth, Bessel, Linkwitz Riley.
- Each output features a dynamic range controller composed of a peak limiter.
- Adjustable delay time up to 1,000 ms for every channel.
- Convenient use of function buttons on either front panel or the included English software interface displays.
- 24 pre sets can be programmed and stored and protected by password.
- Each input channel provides 8 PEQ, gain control, noise gate function, RMS compressor, and configurable delay.
- Each output offers 9 PEQ with the crossover filters wholes slopes from 12dB up to 48dB/Octave.
- Each output path also features peak limiter, HP/LP filters, and driver alignment delay.
- Full matrix mixing mode where inputs may be routed/mixed in any ratio to any output.
- Direct user-friend English PC/Network connection and control.
- Front panel USB connector for direct PC communication.
- RS232 connection for system setup, monitoring and control via full manageable remote PC software.
- Front panel interactive LCD display for local access and configuration.
- Simultaneous control up to 50 units via PC software security lockout.
- Option model of DSP240 (2 In/4 Out) and DSP360 (3 In/6 Out)
Applications:
- Professional Sound System, Sound Reinforcement System, Live Performance, AV Conference System
- Auditoriums, Houses of Worship, Theaters, Convention Centers, Stadium and Stage Monitoring System
Specification:
|
Model |
DSP480 |
|
Description |
Digital Audio Processor |
|
Analog Input |
4×XLR balanced, >10k Ohm |
|
Analog Output |
8×XLR balanced, 50 Ohm |
|
THD+N |
0.002% at 1kHz 0dBu |
|
S/N Ratio |
<100dBA |
|
Frequency Response |
20-30kHz; -0.5dBu at 20Hz and 20kHz |
|
AD/DA Converter |
24 bit-48kHz |
|
DSP Gain |
From -40dBu up to +15dBu by 0.1dBu resolution steps |
|
PEQ |
8 PEQ per channel |
|
PEQ Type |
Hi/Lo-Shelving, HP/LP, Band Pass, Notch and All Pass filters |
|
PEQ Gain |
From -30dBu up to +15dBu by 0.1dBu resolution steps |
|
Filter Type |
Butterworth, Bessel, Linkwitz Riley |
|
Filter Slope |
From 12dBu up to +48dBu per octave |
|
PEQ Frequency |
0.05-3 Octaves (Q=0.404-28.852) |
|
Crossover Filter |
HP/LP per output channel |
|
Input RMS Compressor |
Threshold from -20dBu to+20dBu and Byp Attack time from 0.3 ms to200ms; Release time from 0.3 sec up to 3 sec |
|
Output Peak Limiter |
Threshold from -20dBu to+20dBu and Byp Attack time from 1 ms to 900ms; Release time from 0.3 sec up to 5 sec |
|
Input & Output Polarity |
Normal 0° or inverted 180° |
|
Input & Output Mute |
ON/OFF |
|
Delay |
0-1,000ms per input and output channel |
|
Presets |
24 user presets |
|
Connector |
4×XLR inputs, 8×XLR outputs, USB on front panel, RS232 of 9PIN on rear panel |
|
Power Supply |
AC 90V-240V, 50-60Hz |
|
Dimension |
484×44×222mm, 1RU |
|
Weight |
4Kg |
