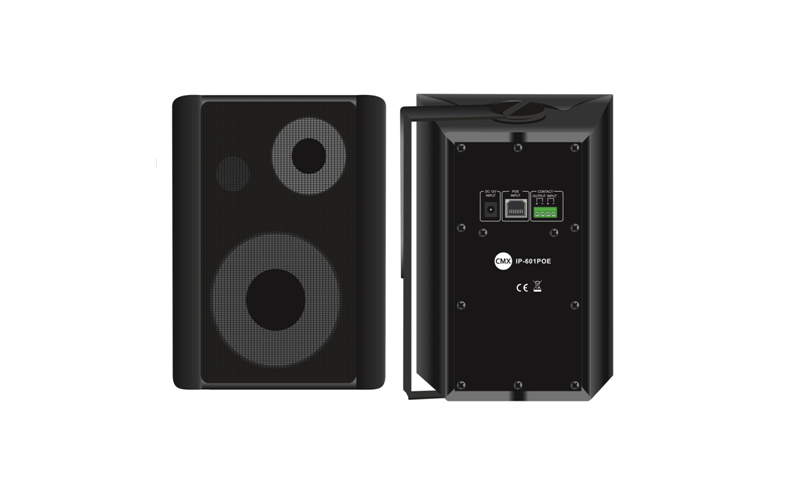

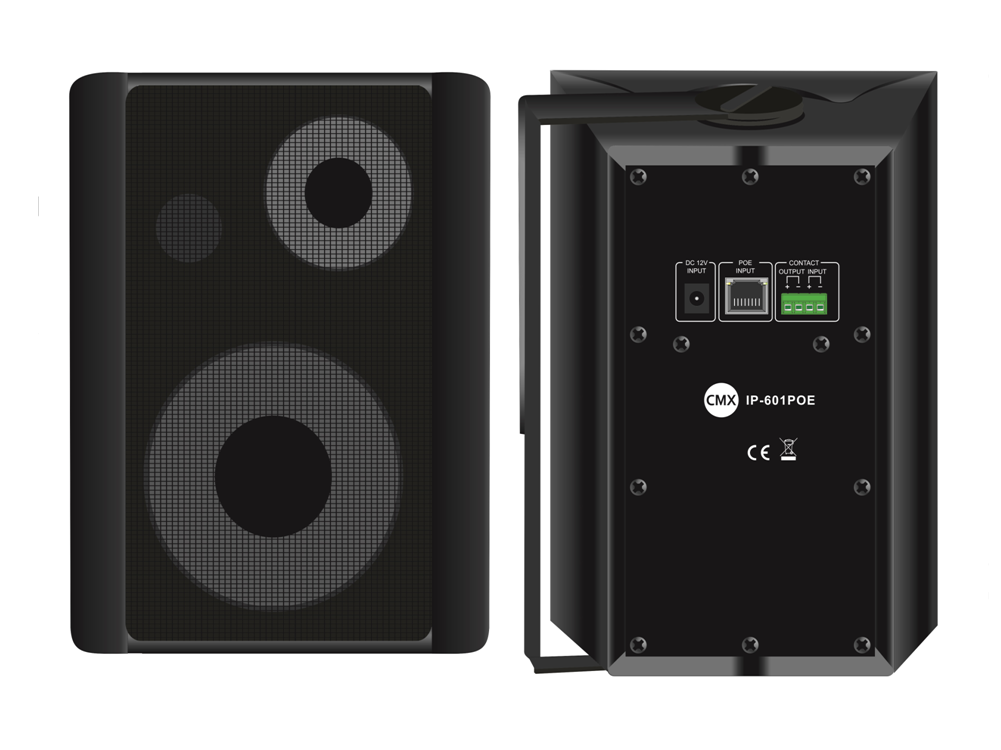

DI-97601 IP POE Wall Mount Speaker
IP POE Wall Mount Speaker
DI-97601
Description:
The IP POE Powered Wall Mount Speaker is the latest in IP technology. This Power over Ethernet (Compatible with IEEE 802.3at) POE loudspeaker featured of network-controlled speaker volume, scheduled program broadcast, priority-based multicast streaming, group definition, working status supervision, remote online technical support and trouble shoot. The POE loudspeaker is capable of broadcasting audio through multicast. The POE powered wall mount speaker enable to be built up an IP based sound system through a single CAT5 or CAT6 wire. The single CAT5 cable is used for control data, signal data and power supply, by this way, the layout cost will be much decreased without any consideration of AC nor DC power supply. The POE powered loudspeaker is compatible with universal POE switch, thus the POE speaker works with existing POE LAN/WAN & internet network and fiber-optical cable, no need dedicated network to be built-up. So it is very useful for office, hotel, school, bank, factory & shopping mall where POE network is already there. External 12V DC connector is also equipped in this POE speaker for standby power supply use. The POE loudspeaker is designed with 5” two way wall mount speaker with 30W class-D amplifier. The remote paging microphone DI-9700TM enables to make announcement over individual speaker, group speakers over network.
Features:
POE (Power over Ethernet) supportable all in one network audio system
POE IP PA system with background music, paging system and voice alarm system
Minimum cable connection over existing LAN/WAN/Internet system
Huge system capacity up to 1,200 zones
Support with existing POE switch network system
Compatible with IEEE 802.3at
IP based POE powered 30W 5” two way wall mount speaker
Built-in IP audio decoder, 30W class-D amplifier and speaker
Single network cable for control, signal and power supply
Same POE speakers enable to be several group or zone defined
Different music or voice message simultaneously broadcasted through different POE speakers
Paging prioritization and background music system
Network adjustable speaker volume
12V DC power supply input as standby use
Specifications:
Model |
DI-97601 |
Description |
IP POE Wall Mount Speaker |
Power Output |
30 Watts (1KHz@-3dB) |
Built-in Amplifier |
30W Watts 4 Ohm |
Speaker Unit |
5” woofer+1.5” tweeter |
Network I/F |
10/100Mbps |
Protocol |
ARP, TCP/IP, UDP, ICMP & IGMP (Group Broadcast) |
Audio Format |
MP3/MP2 |
Audio Quality |
16digit stereo CD level |
Sampling Rate |
8K~48K |
Bit Rate |
8K~512Kbps |
Sensitivity |
92dB/1W/1M |
S/N Ratio |
≧85dB |
THD |
≦0.1% |
Frequency Response |
100-18KHz(±3dB) |
Connector |
One RJ45 port, One DC12V battery backup input |
Power Input |
POE 802.3at & DC 12V |
Operation Temp |
-30℃ to +55℃ |
Dimension |
257×185×170mm |
Bracket |
U-Shaped wall mount bracket |
Material |
ABS cabinet and steel grille in black |
Weight |
2.5kg |
