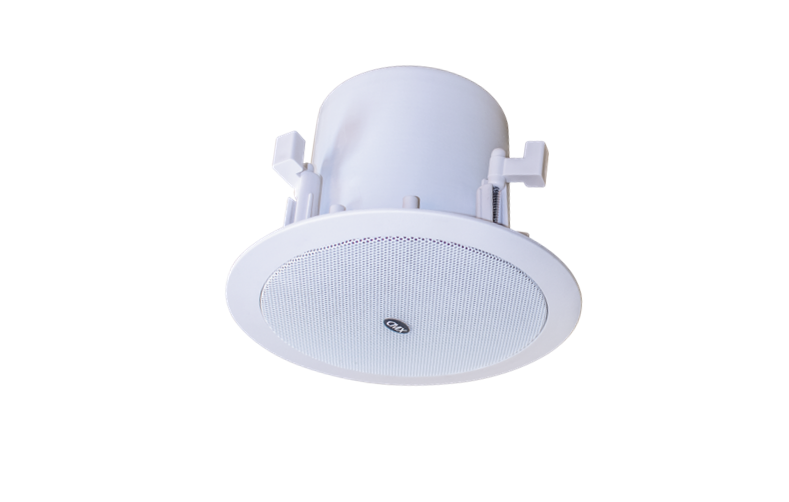

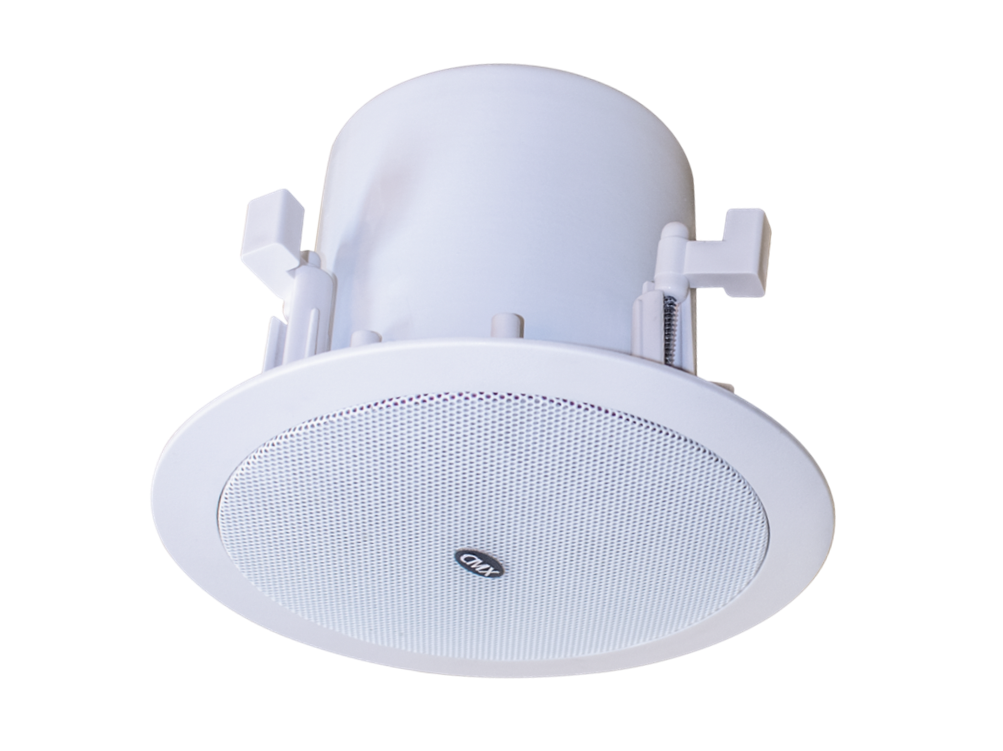

DI-97501 IP POE Ceiling Speaker
IP POE Ceiling Speaker
DI-97501
Features:
Support with existing POE switch network system
Compatible with IEEE 802.3at
IP based POE powered 30W ceiling speaker
Single network cable for control, signal and power supply
Same POE speakers enable to be several group or zone defined
Support IP BGM, live speech, pre-recorded announcement
Support IP voice alarm by add IP voice alarm controller
Different programs simultaneously through different POE speakers.
Paging prioritization and background music system
Network adjustable speaker volume
DC12V power supply input as standby use
Description:
The IP POE Powered Ceiling Speaker is the latest in IP technology. This Power over Ethernet (Compatible with IEEE 802.3at) mass notification device has network-controlled speaker volume, scheduled program broadcast, priority-based multicast streaming, group definition, working status supervision, remote online technical support and trouble shoot. The speaker is capable of broadcasting audio through multicast. The POE powered ceiling speaker enable to be built up an IP based sound system through a single CAT5 or CAT6 wire. The single CAT5 cable is used for control data, signal data and power supply, by this way, the layout cost will be much decreased without any consideration of AC nor DC power supply. The POE powered ceiling speaker is compatible with universal POE switch, thus the POE speaker works with existing POE LAN/WAN & internet network and fiber-optical cable, no need dedicated network to be built-up. So it is very useful for office, hotel, school, bank, factory & shopping mall where POE network is already there. External DC12V connector is also equipped in this POE speaker for standby power supply use.
Specifications:
|
Model |
DI-97501 |
|
Description |
IP POE Ceiling Speaker |
|
Power Output |
30W Watts ((THD+N=10%, f=1KHz) |
|
Built-in Amplifier |
30 Watts RMS 4 Ohms |
|
Network I/F |
10/100Mbps |
|
Protocol |
ARP, TCP/IP, UDP, ICMP & IGMP (Group Broadcast) |
|
Audio Format |
MP3/MP2 |
|
Audio Quality |
16digit stereo CD level |
|
Sampling Rate |
8K~48K |
|
Bit Rate |
8K~512Kbps |
|
Sensitivity |
92dB/1W/1M |
|
S/N Ratio |
≧85dB |
|
THD |
≦0.1% |
|
Frequency Response |
100-18KHz（±3dB） |
|
Connector |
One RJ45 port for existing LAN/WAN & internet One DC12V battery backup input |
|
Power Input |
POE 802.3at & DC 12V |
|
Operation Temp |
-30 to +55℃ |
|
Dimension |
Ø203×140mm |
|
Cutout Size |
168mm |
|
Material |
ABS enclosure, metal grille and metal back box |
|
Weight |
1.4kg |
