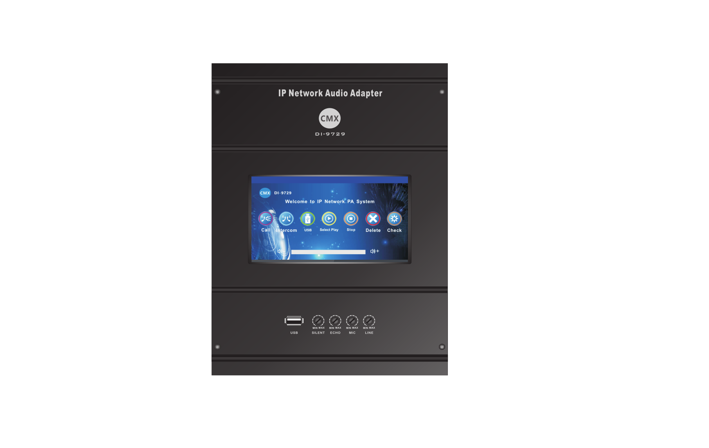

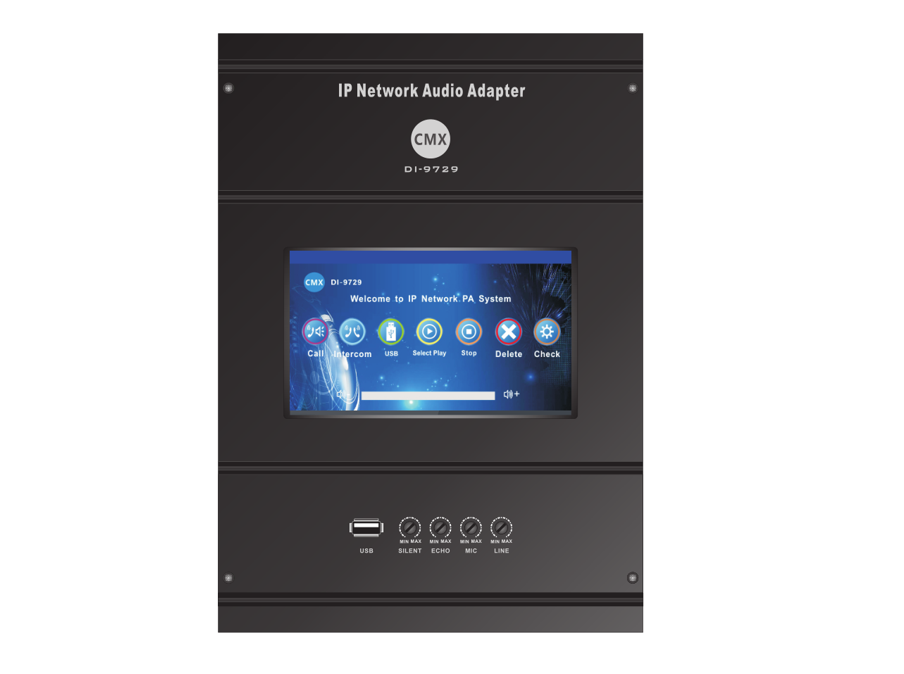

DI-9729 IP Network Wall Mount Amplifier
IP Network Wall Mount Amplifier (2×30W 8 Ohm)
DI-9729
Description:
The IP Network Wall Mount Amplifier DI-9729 integrates the IP audio decoder/IP streaming and stereo power amplifier together. The IP network wall mount amplifier is of on-wall mount design, it is built-in stereo amplifier rated output at 2×30W 8 Ohm. The IP network technology also allow this IP network amplifier could be installed anywhere even near to the speaker to save cable wiring from control room to each zone. The IP decoder is designed with one line input, one microphone input, one line output, one USB input, control input and control output. The advantages of the network audio system are: long distance transmission, multiple channel audio matrix, simultaneous group programs & non-dedicated network wiring. Option features to add: 100V input from analog system to auto back up IP audio failure or 2.4G wireless teaching system.
Feature:
IP network wall mount amplifier with audio decoder
Simple configuration by IP system server, IP paging microphone & IP network amplifier to set up IP audio system
Huge system capacity of 6,000 zones paging and multiple BGM system
Minimum cable connection by using existing network framework
Non-dedicated network audio system solution over LAN/WAN or Internet
Economy network PA system for multiple room and multiple program applications
Ideal for school, office, restaurant and fitness center IP PA sound system
IP public address system over LAN/WAN or Internet
Built-in 2×30 Watt 8 Ohm stereo power amplifier
One line input, one microphone input, one line output, one USB input, control input and control output
Remote volume control and program via remote software
IP microphone DI-9700TM enables to talk to single zone, multiple zone & all zone over network
Enable to broadcast Mp3 program or pre-recorded voice message from PC server to IP wall mount amplifier
Remote volume control and program control from server room
Timely broadcast ring bell or pre-recorded message to pre-set zones
Option features to add: 100V input from analog system to auto back up IP audio failure or 2.4G wireless teaching system
Specification:
|
Model |
DI-9729 |
|
Description |
IP Network Wall Mount Amplifier |
|
Rated Power Output |
2×30 Watt 8 Ohm |
|
Protocol Support |
TCP/IP, UDP, GMP, ARP, UDP |
|
Transmit Speed |
10/100Mbps |
|
Audio Format |
16 digit stereo CD tone |
|
Frequency Response |
20Hz~16KHz |
|
THD |
≤0.3% |
|
S/N Ratio |
≥85dB |
|
Connector |
One RJ45 port, USB/Mic/line input and line output, control input & control output |
|
Speaker Output |
8 Ohm |
|
Working Temp |
-20℃ to +60℃ |
|
Humidity |
10% ~ 90% |
|
Power Consumption |
60W |
|
Power Supply |
100-240V AC, 50-60Hz |
|
Dimensions |
250x163x42mm |
|
Weight |
2.5kg |
