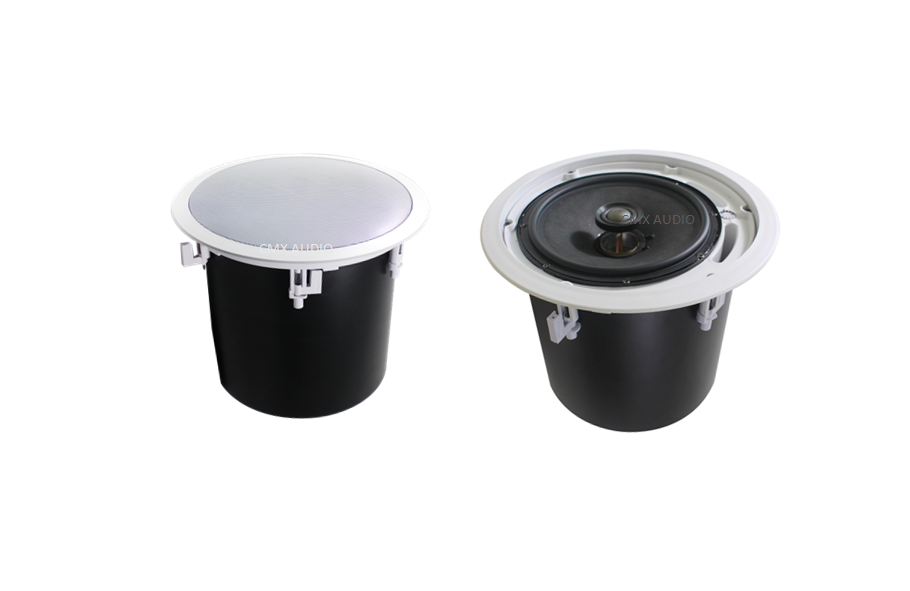

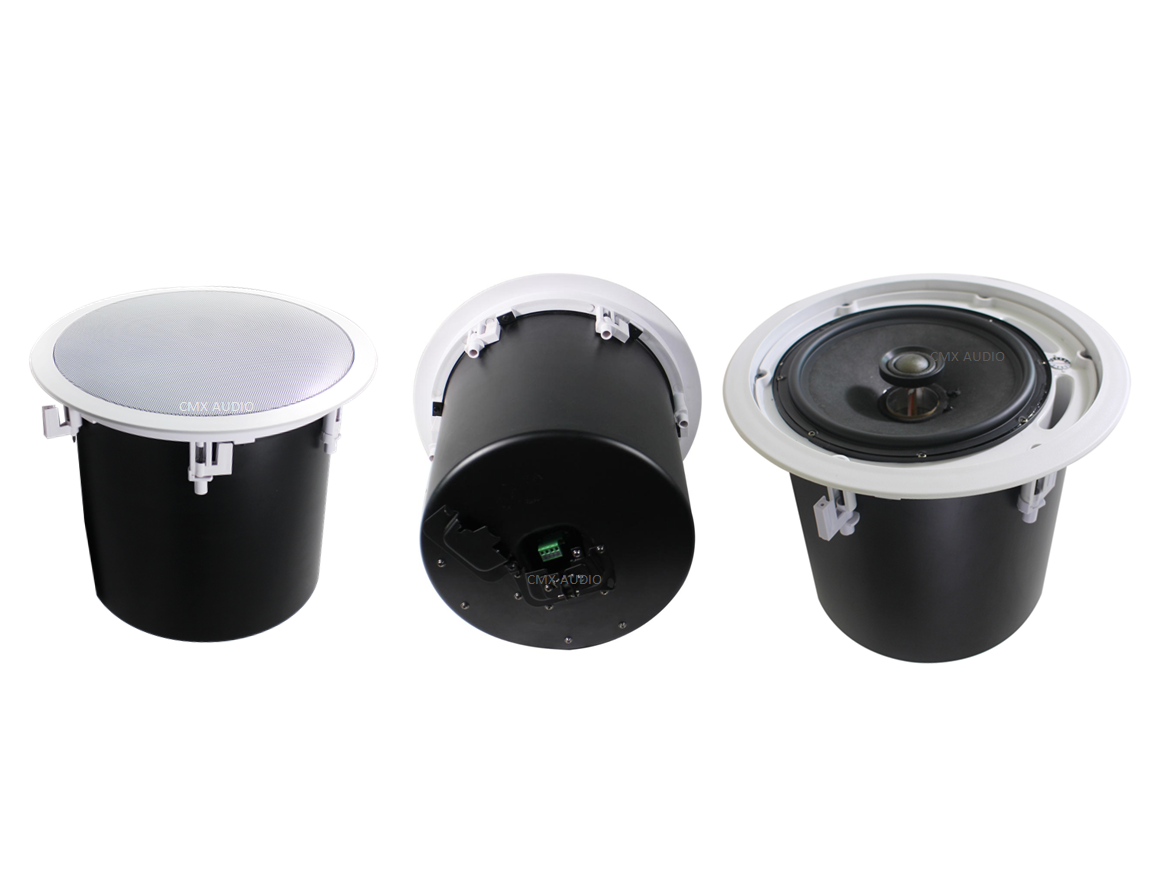

CSK-812K 8" Ceiling Speaker 120W 100V 70V & 8 Ohm
Feature:
2-Way Ceiling speaker for commercial audio solution
With transformer support 70v/100v or 8 Ohm
120W RMS power output
120W/60W/30W & 8 Ohm power taps on front
8" paper woofer and 2” tweeter
With breathing hole for strengthened performance
ABS enclosure and metal fire dome
In-ceiling quick installation by spring clip
Description:
The 10 inch ceiling speaker is especially designed for high end high power commercial audio applications, built-in low loss matching transformer allows for either 70v/100v or 8 Ohm operation. Its rated power of 120W of RMS power and with multiple tapings for different room size applications. ABS enclosure and metal fire dome with easy in-ceiling quick installation.
Specification:
|
Model |
CSK-812K |
|
Description |
8” 2-Way Ceiling Speaker |
|
Power Taps |
120W/60W/30W & 8 Ohm |
|
Frequency Response |
45-20Hz |
|
SPL(@1W/m) |
90±3dB |
|
Speaker Unit |
8” paper woofer and 2” tweeter |
|
Cutout Size |
Ø 330mm |
|
Dimension |
Ø 360×330mm |
|
Material |
ABS enclosure and metal fire dome |
|
Weight |
7.0kg |
